Hydraulic system function, soft top closing: Notes
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

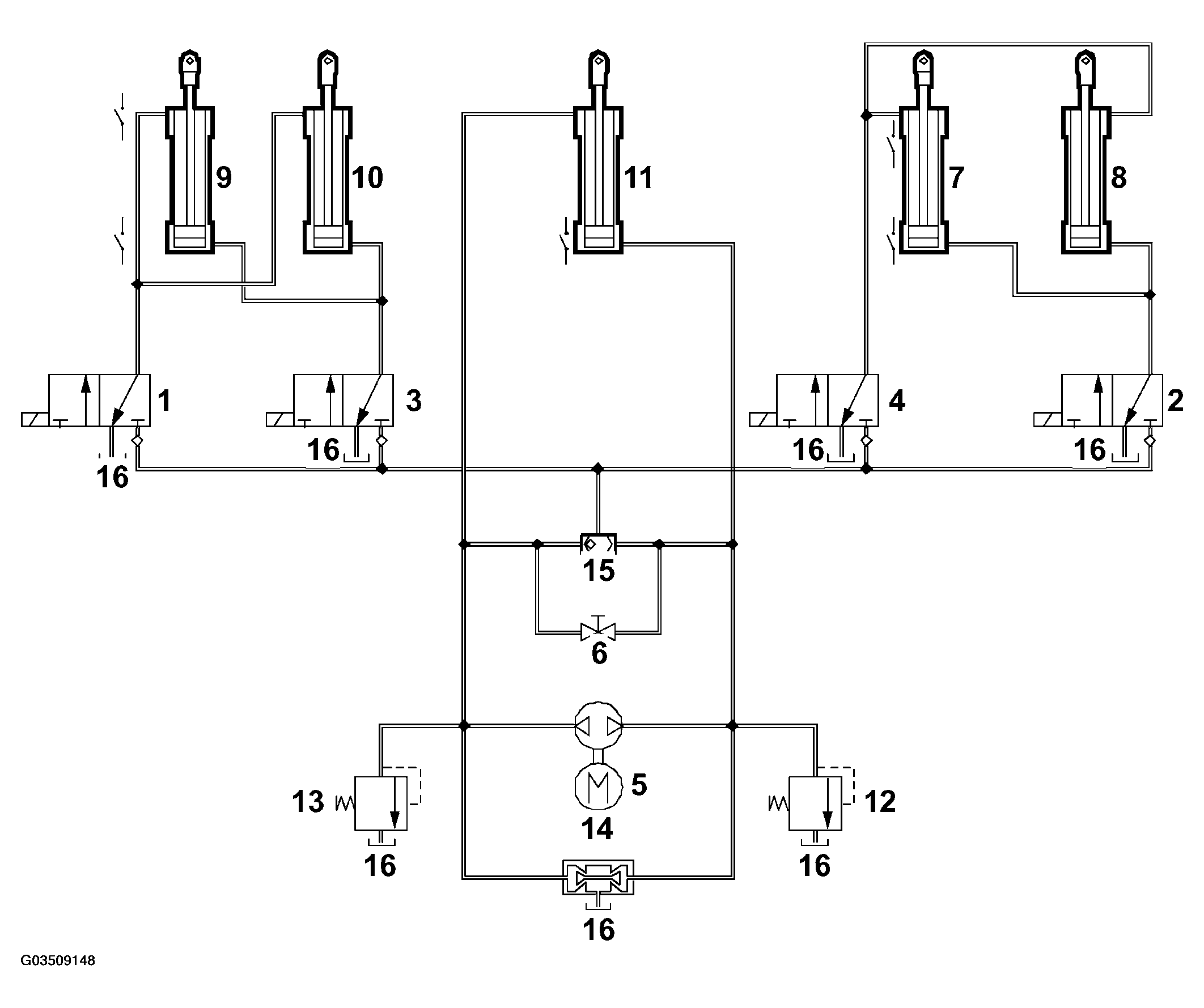

- Hydraulic valve 1 (Fifth bow DOWN)
- Hydraulic valve 2 (Main hydraulic cylinder UP)
- Hydraulic valve 3 (Fifth bow UP)
- Hydraulic valve 4 (Main hydraulic cylinder DOWN)
- Electric motor
- Emergency operation valve
- Main hydraulic cylinder, LH
- Main hydraulic cylinder, RH
- Fifth bow hydraulic cylinder, LH
- Fifth bow hydraulic cylinder, RH
- Soft top cover cylinder
- Pressure reduction valve (push)
- Pressure reduction valve (pull)
- Inlet valve
- Shuttle valve
- Oil reservoir
The following description only illustrates the operation of the hydraulic system when closing the soft top.
