Electrically operated sunroof not functioning: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

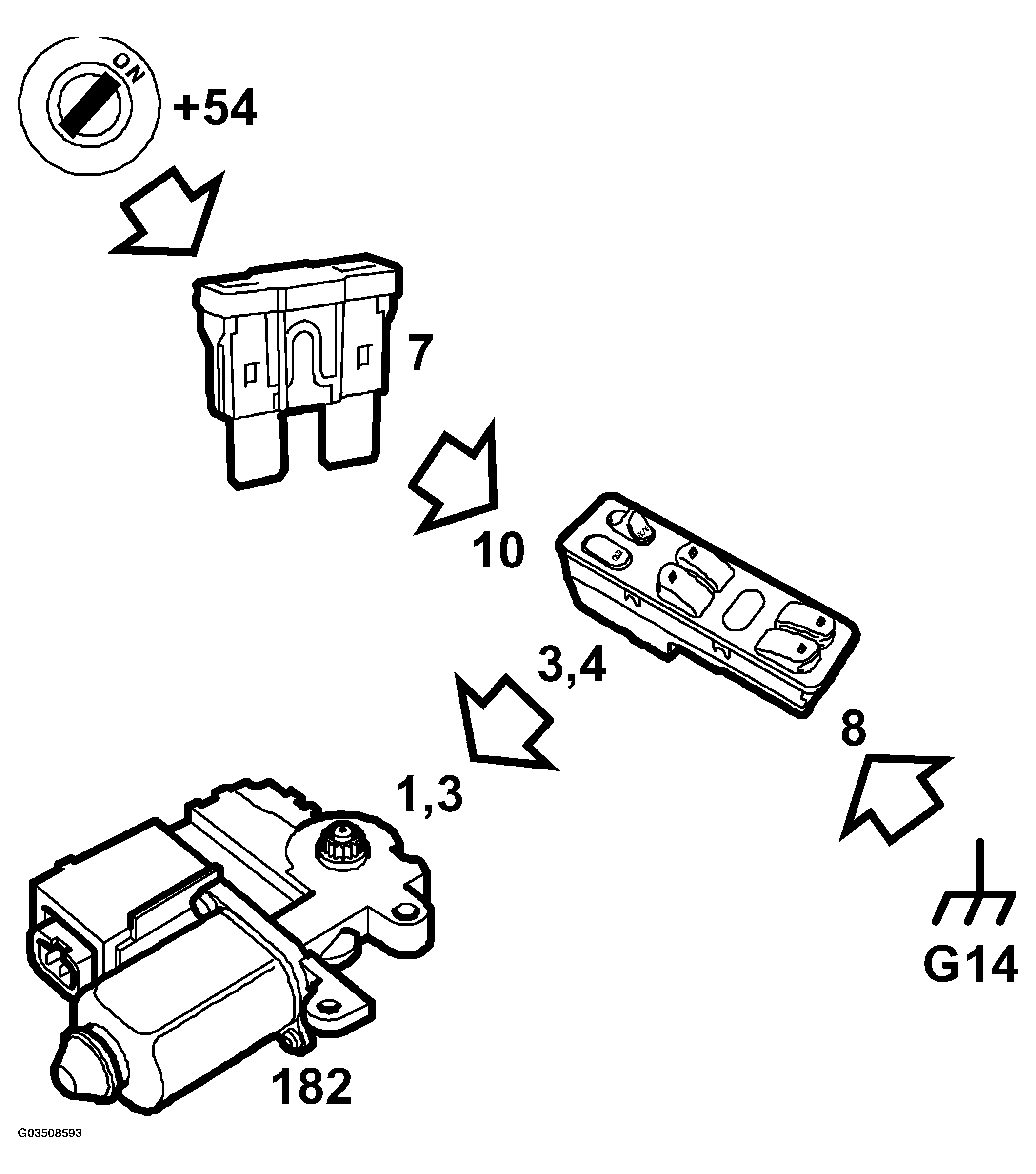

Fig 1: Fault Diagnosis Symptom - Electrically Operated Sunroof Not Functioning

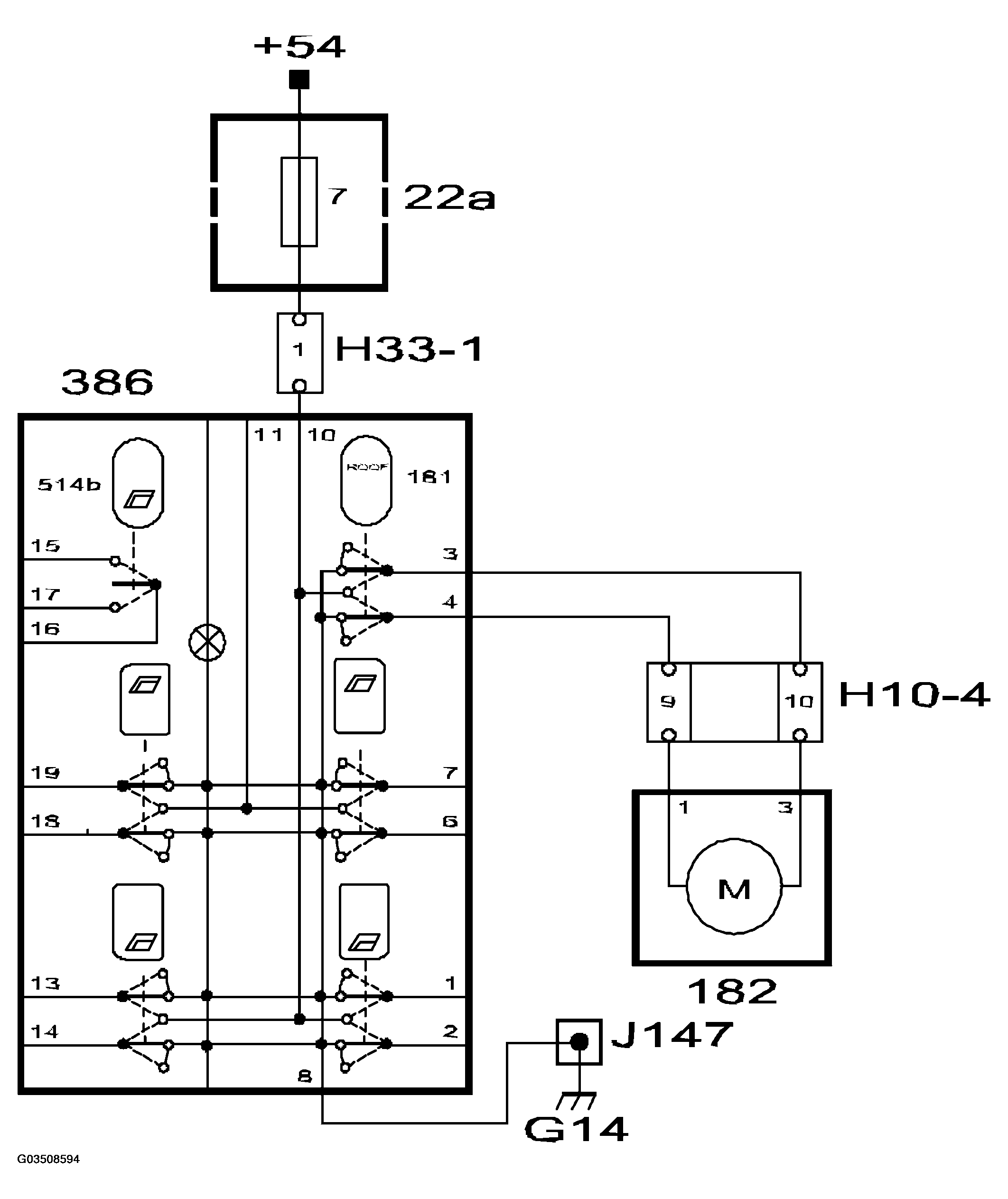

Fig 2: Electrically Operated Sunroof Not Functioning - Circuit Diagram
