Component Locations
WARNING: This page is about a different car, the 2003 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

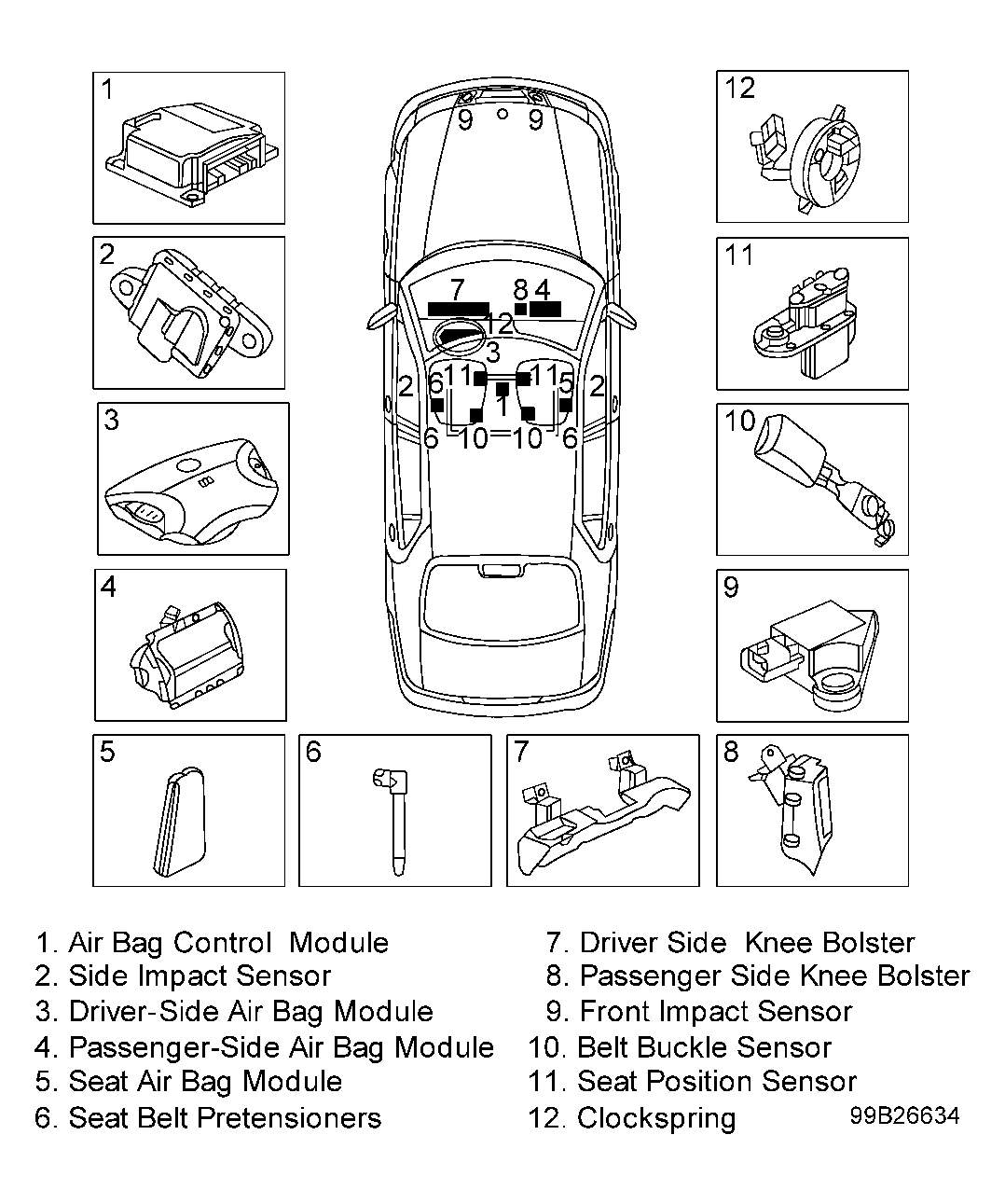

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Air bag control module | Under center console, behind parking brake | ||
| Clockspring | On steering column, under steering wheel | ||
| Front impact sensor | In bumper rail, on front of car | ||
| Driver side knee bolster | Under steering column | ||
| Driver-side air bag module | On steering wheel | ||
| Passenger side knee bolster | Inside instrument panel, left of glove box | ||
| Passenger-side air bag module | Instrument panel, above glove box | ||
| Seat air bag module | Outboard bolster of front seat back | ||
| Seat belt pretensioner | B-pillars | ||
| Seat position sensor | On inboard seat rail | ||
| Side impact sensor | Inside left & right front door | ||
|
|||
