Main relay, engine control system (229)

Location  :

Trionic T8  : in the main fuse box in front of the battery

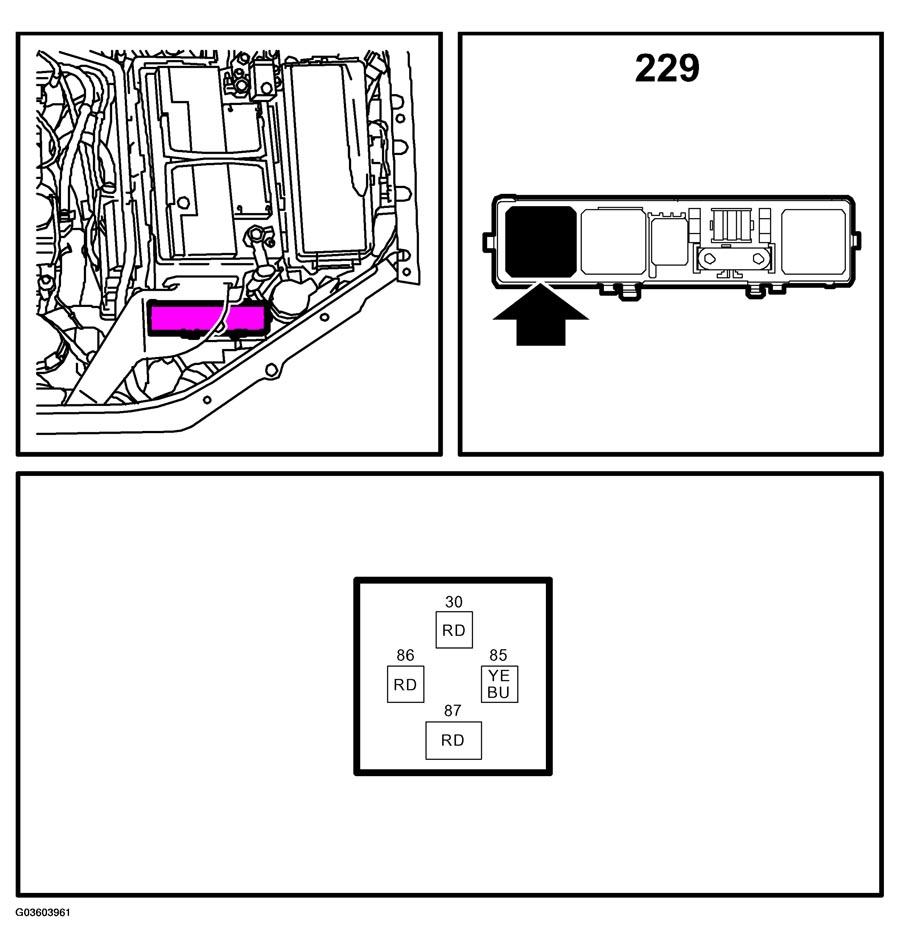

Fig 1: Locating & Identifying Engine Control System Main Relay - Trionic T8
G03603961Courtesy of SAAB-SCANIA OF AMERICA, INC.

PSG16  : in underhood electrical center 342

Fig 2: Locating & Identifying Engine Control System Main Relay - PSG16
G03603962Courtesy of SAAB-SCANIA OF AMERICA, INC.
