Heated oxygen sensor element (271)

Location  : integrated in the oxygen sensor

front heated oxygen sensor

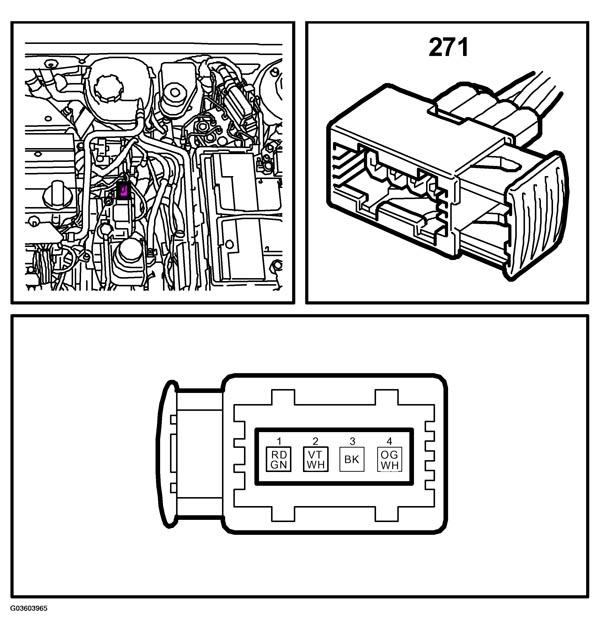

Fig 1: Locating & Identifying Front Heated Oxygen Sensor Element (271)
G03603965Courtesy of SAAB-SCANIA OF AMERICA, INC.

rear heated oxygen sensor

Fig 2: Locating & Identifying Rear Heated Oxygen Sensor Element (271)
G03603966Courtesy of SAAB-SCANIA OF AMERICA, INC.
