Crimp J36, petrol engine harness: Notes

Location  : Approx. 110 mm from branching of engine control module switch A towards the ignition coils

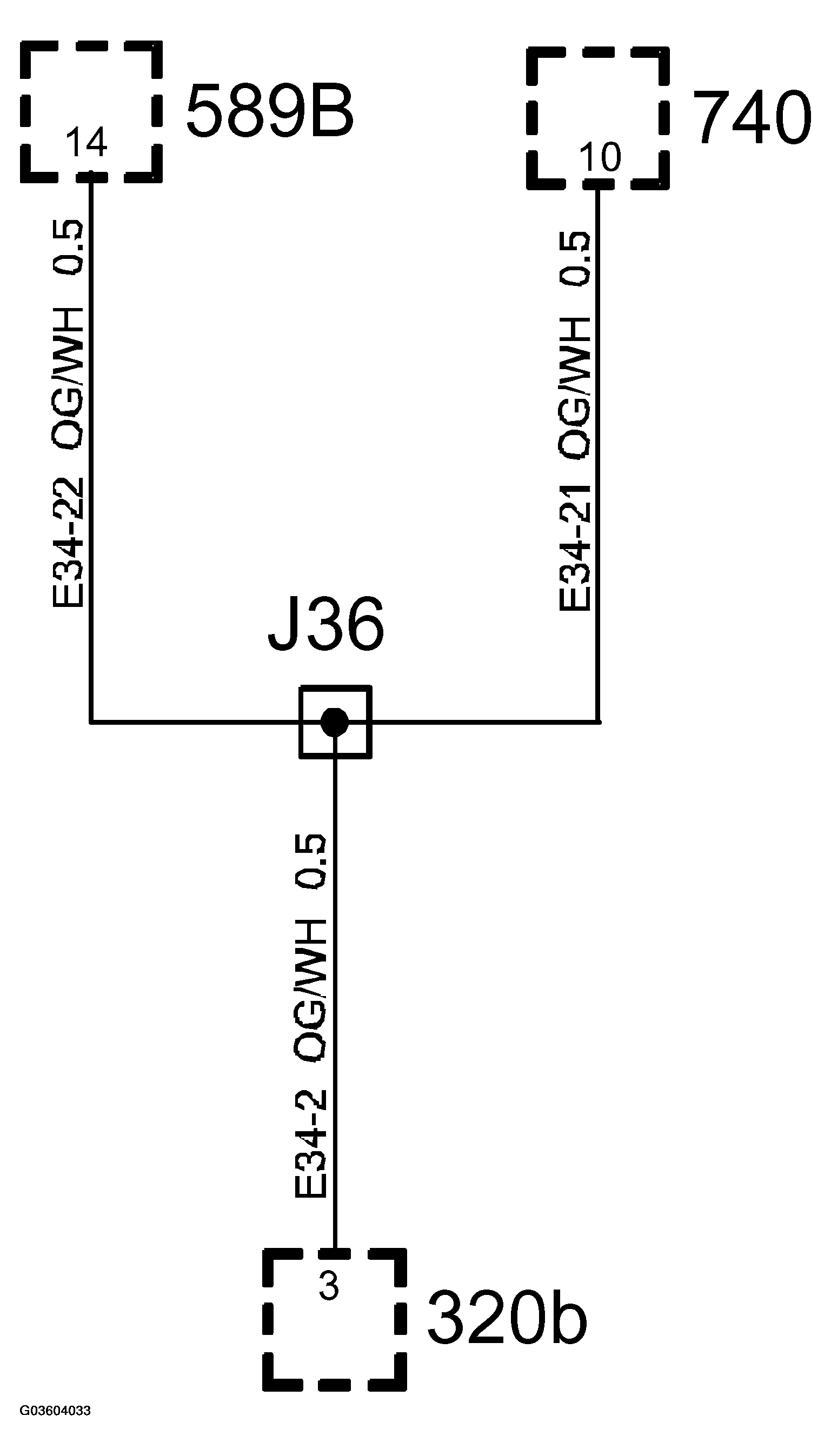

Fig 1: Identifying Crimp J36 And Petrol Engine Harness Wiring Diagram
G03604033Courtesy of SAAB-SCANIA OF AMERICA, INC.
