Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Component Location >> Connector H8 -9

Connector H8 -9

Location  : By the generator

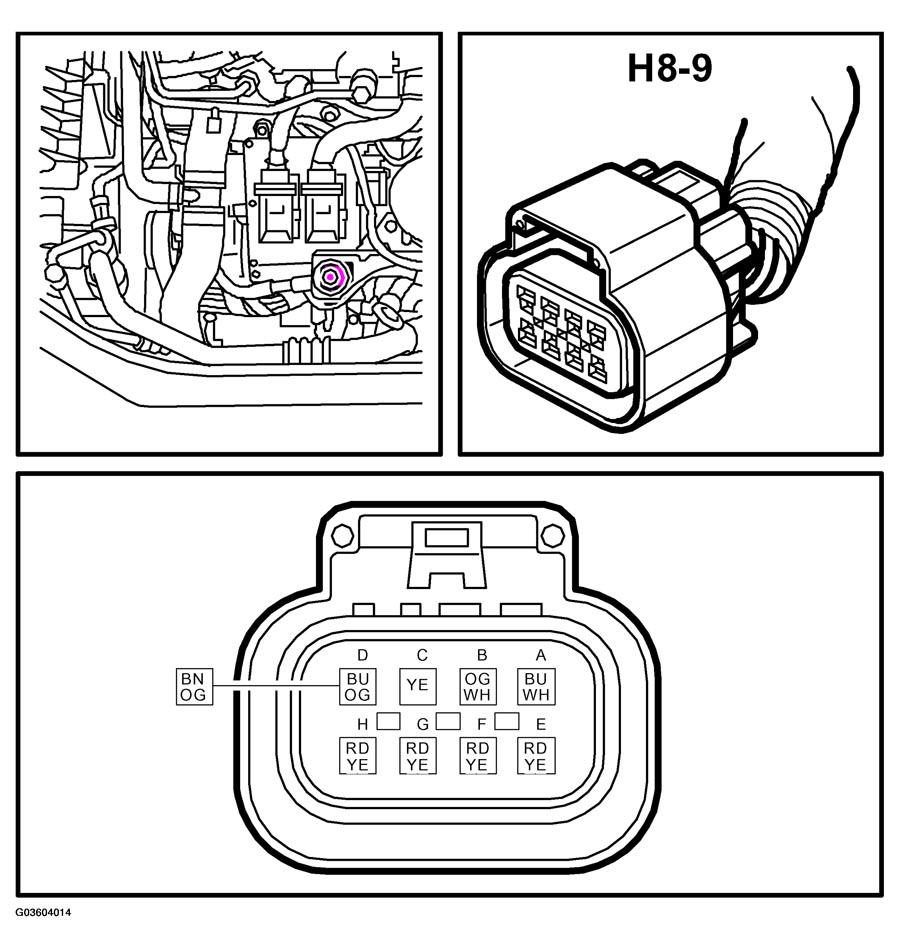

Fig 1: Locating & Identifying Connector H8 -9
G03604014Courtesy of SAAB-SCANIA OF AMERICA, INC.
