TRIONIC T8 Fuel Control System (Late; 9440)
>>
Component Location
>>
Connector H33-1
Connector H33-1
Location
: black connector on the console to the left of the ignition switch

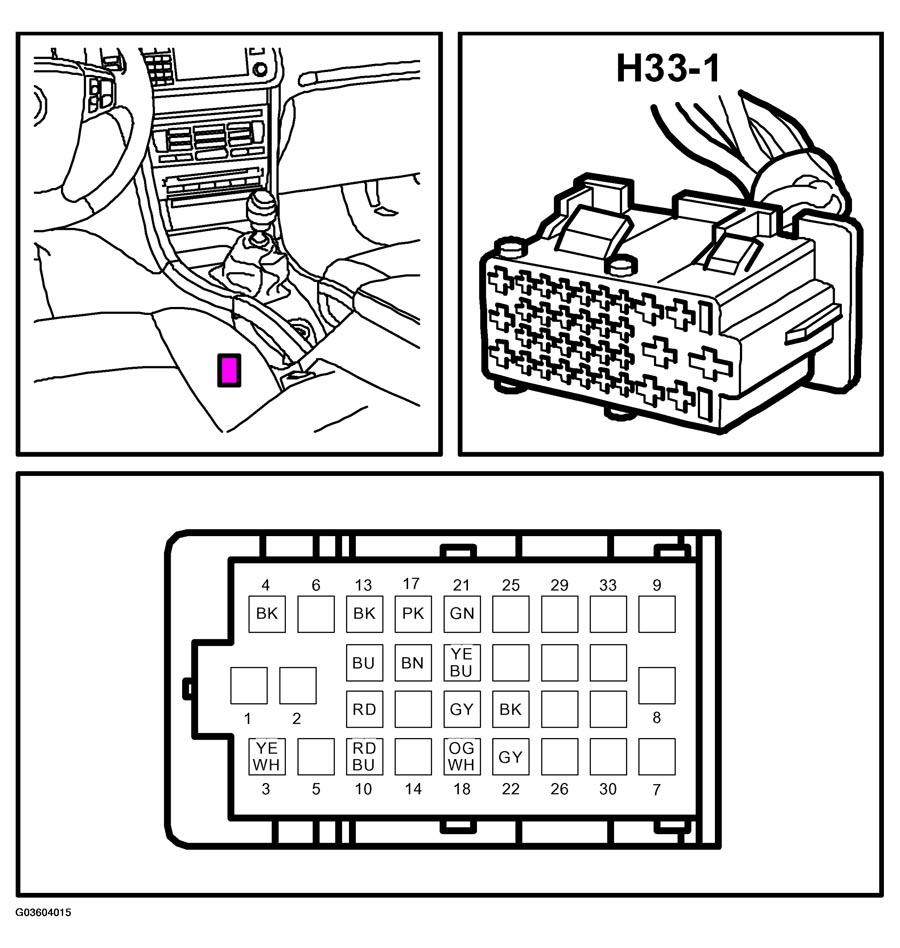

Fig 1: Locating & Identifying Connector H33-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
