Brake light switch (29)

Location  : On pedal bracket

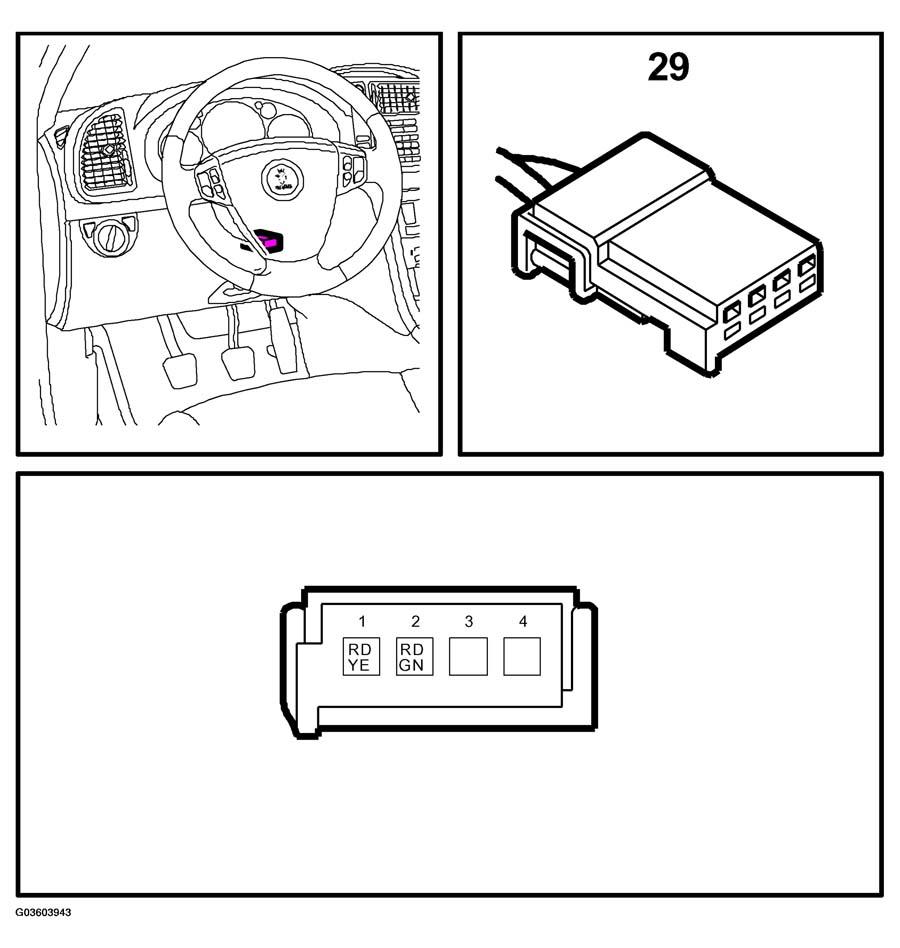

Fig 1: Locating & Identifying Brake Light Switch (29)
G03603943Courtesy of SAAB-SCANIA OF AMERICA, INC.
