DTC P1670: Relay of limp-home function, open circuit/short circuit to ground: Notes

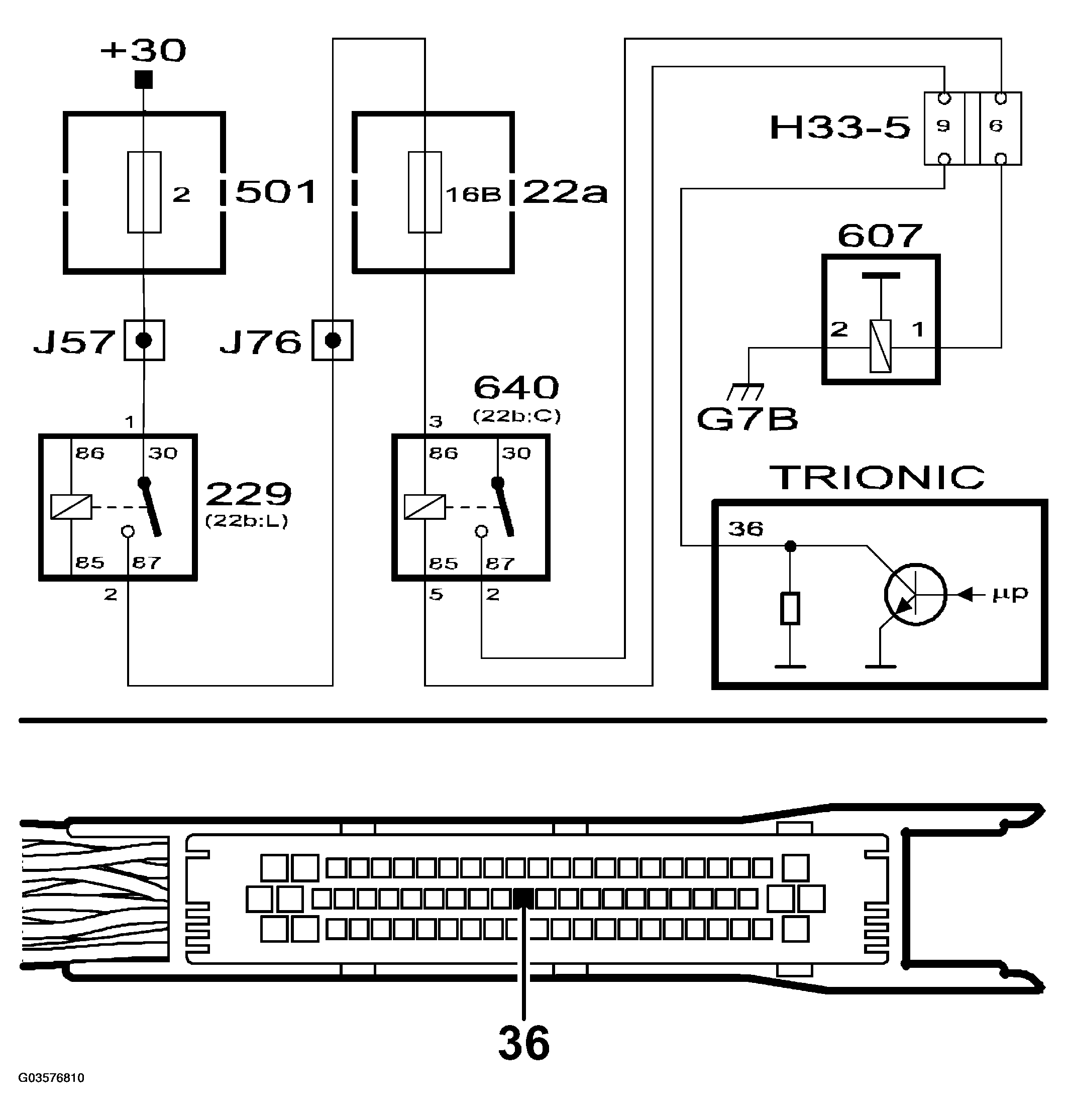

Fig 1: Circuit Diagram - Relay Of Limp-Home Function, Open Circuit/Short Circuit To Ground
G03576810Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The relay/electrical circuit that activates the throttle's limp-home function is faulty.
