DTC P1107: Charge Air Absolute Pressure Sensor Circuit. Short to Ground/Open.: Notes

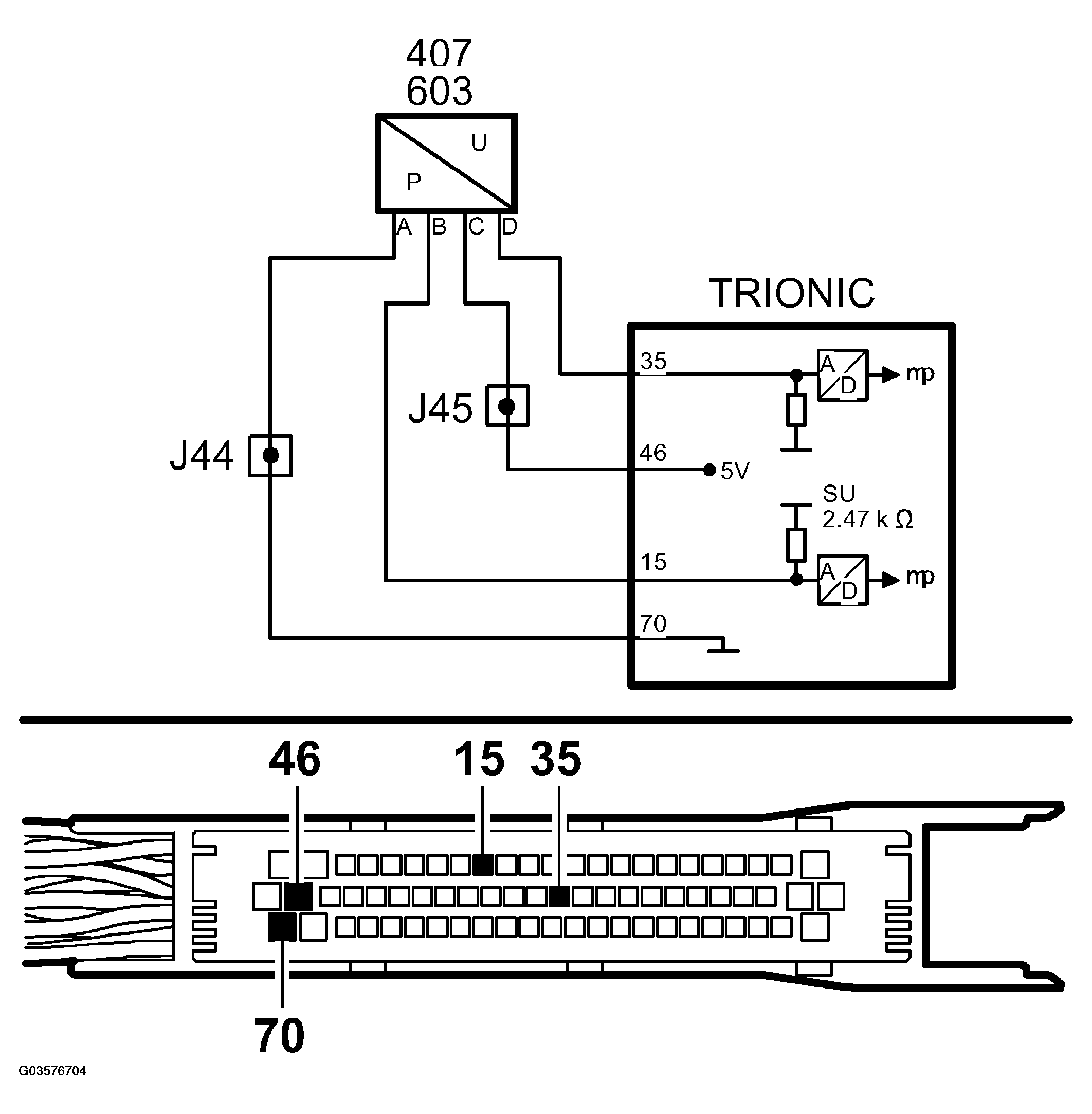

Fig 1: Circuit Diagram - Charge Air Absolute Pressure Sensor Circuit. Short To Ground/Open
G03576704Courtesy of SAAB-SCANIA OF AMERICA, INC.
