DTC P0445: EVAP Purge Valve Circuit. Short to B+.: Notes

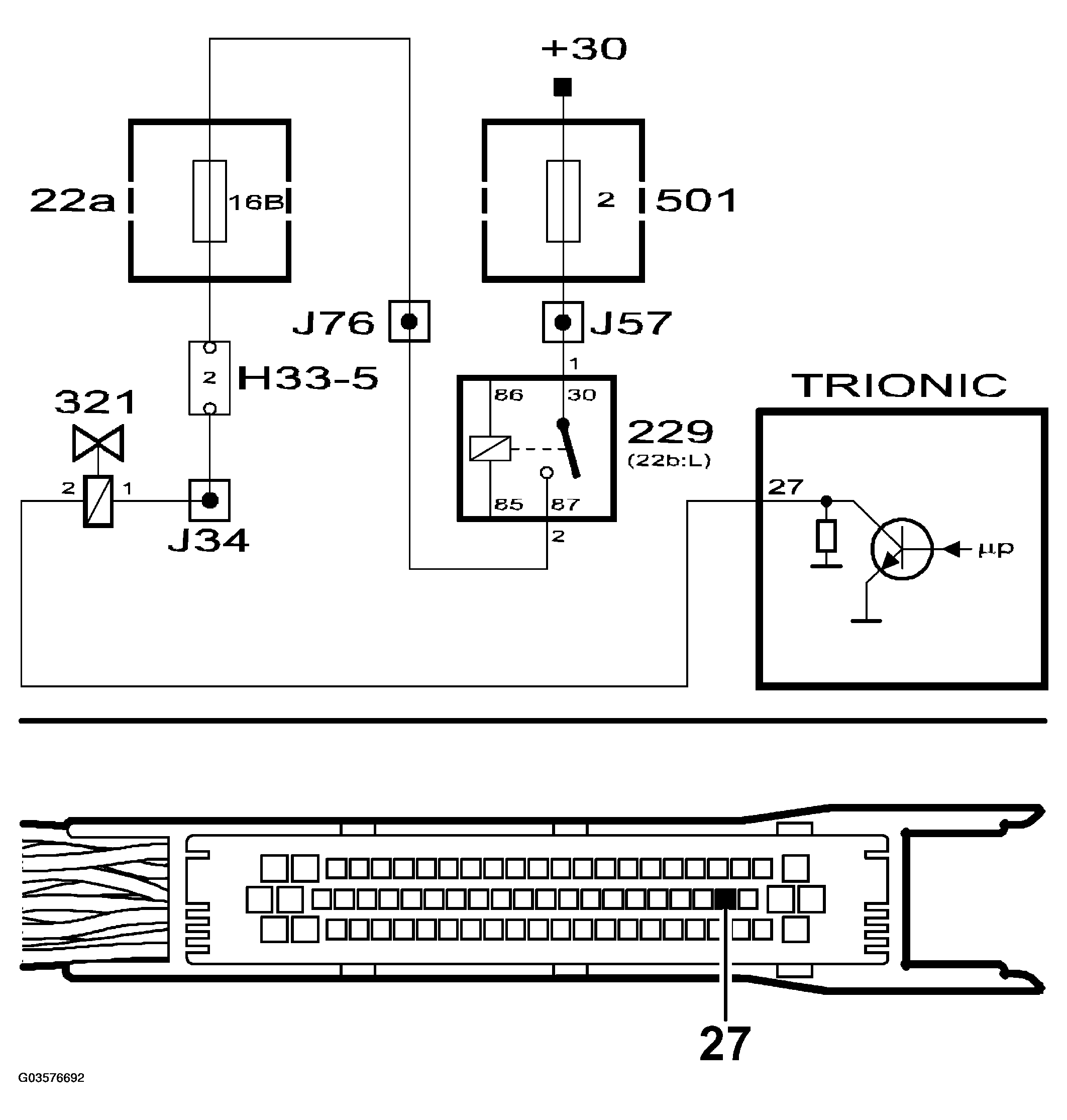

Fig 1: Circuit Diagram - EVAP Purge Valve Circuit. Short To B+.

G03576692

Courtesy of SAAB-SCANIA OF AMERICA, INC.
