Pressure sensor, intake manifold (431): T7

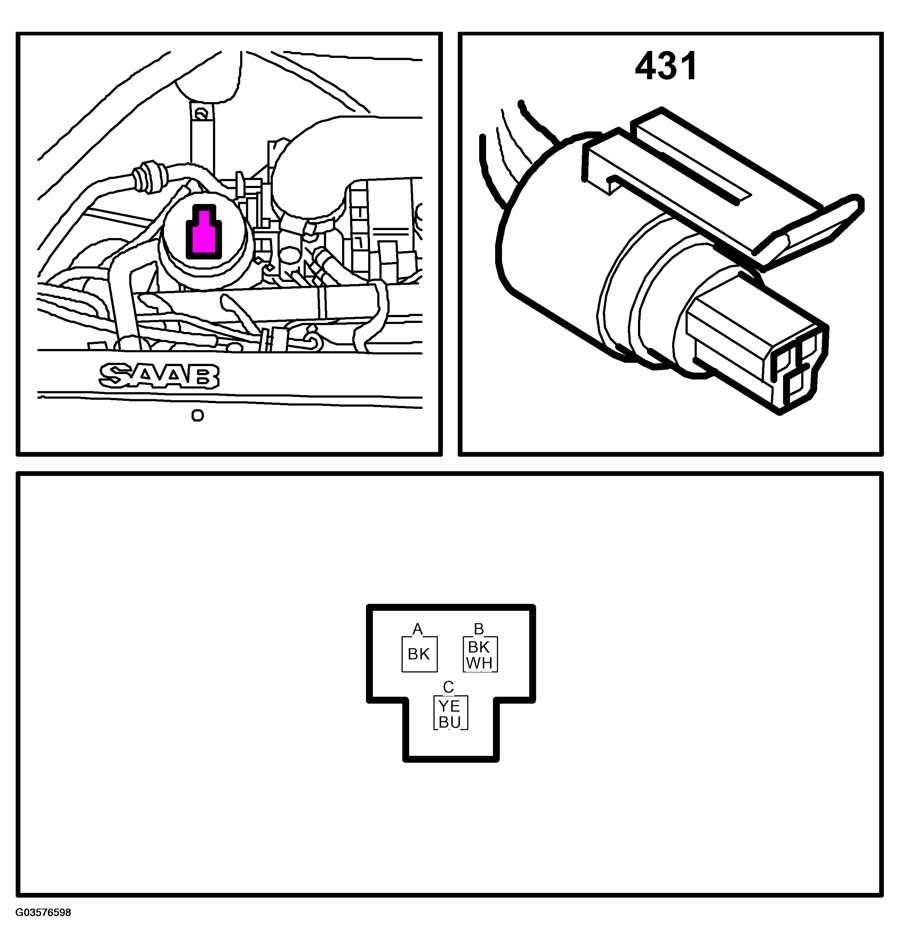

Fig 1: Identifying Intake Manifold Pressure Sensor Connector Pinouts - T7

G03576598

Courtesy of SAAB-SCANIA OF AMERICA, INC.
