Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Component Location >> Pressure sensor, charge air (603) >> T7

Pressure sensor, charge air (603): T7

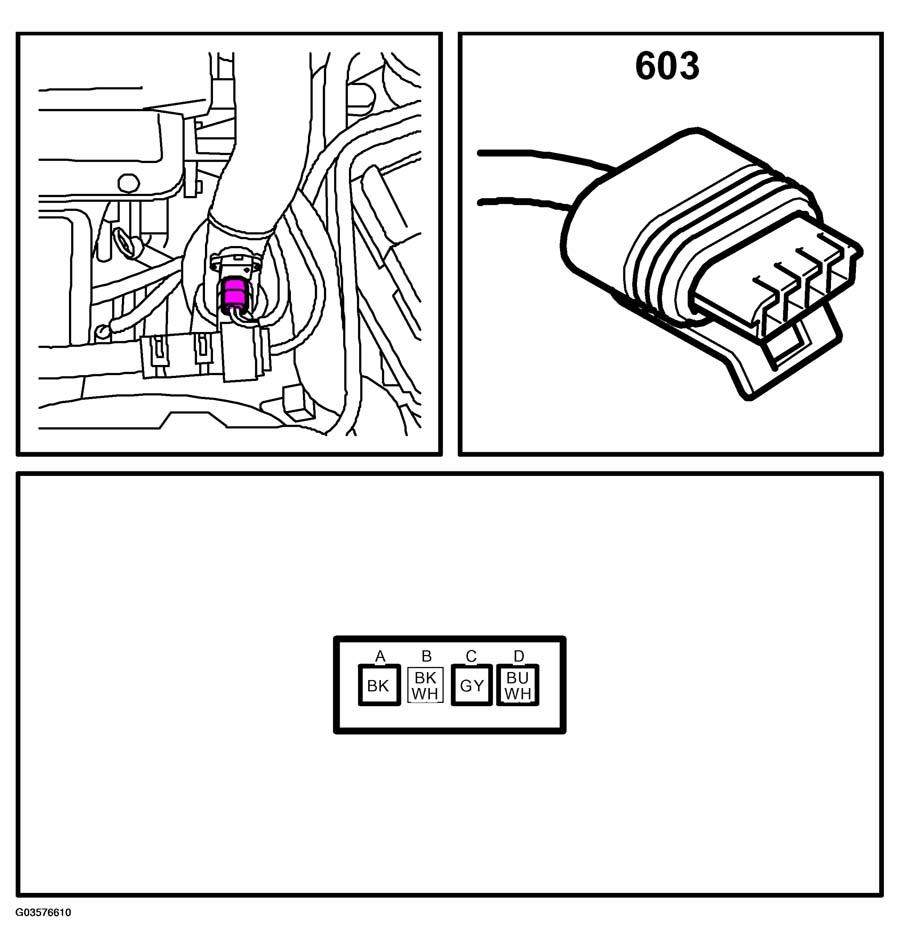

Fig 1: Identifying Charge Air Pressure Sensor Connector Pinouts - T7
G03576610Courtesy of SAAB-SCANIA OF AMERICA, INC.
