Crimp J93, main harness: Notes

Location:  Approx. 90 mm from branching point TCM control module towards main fuse box

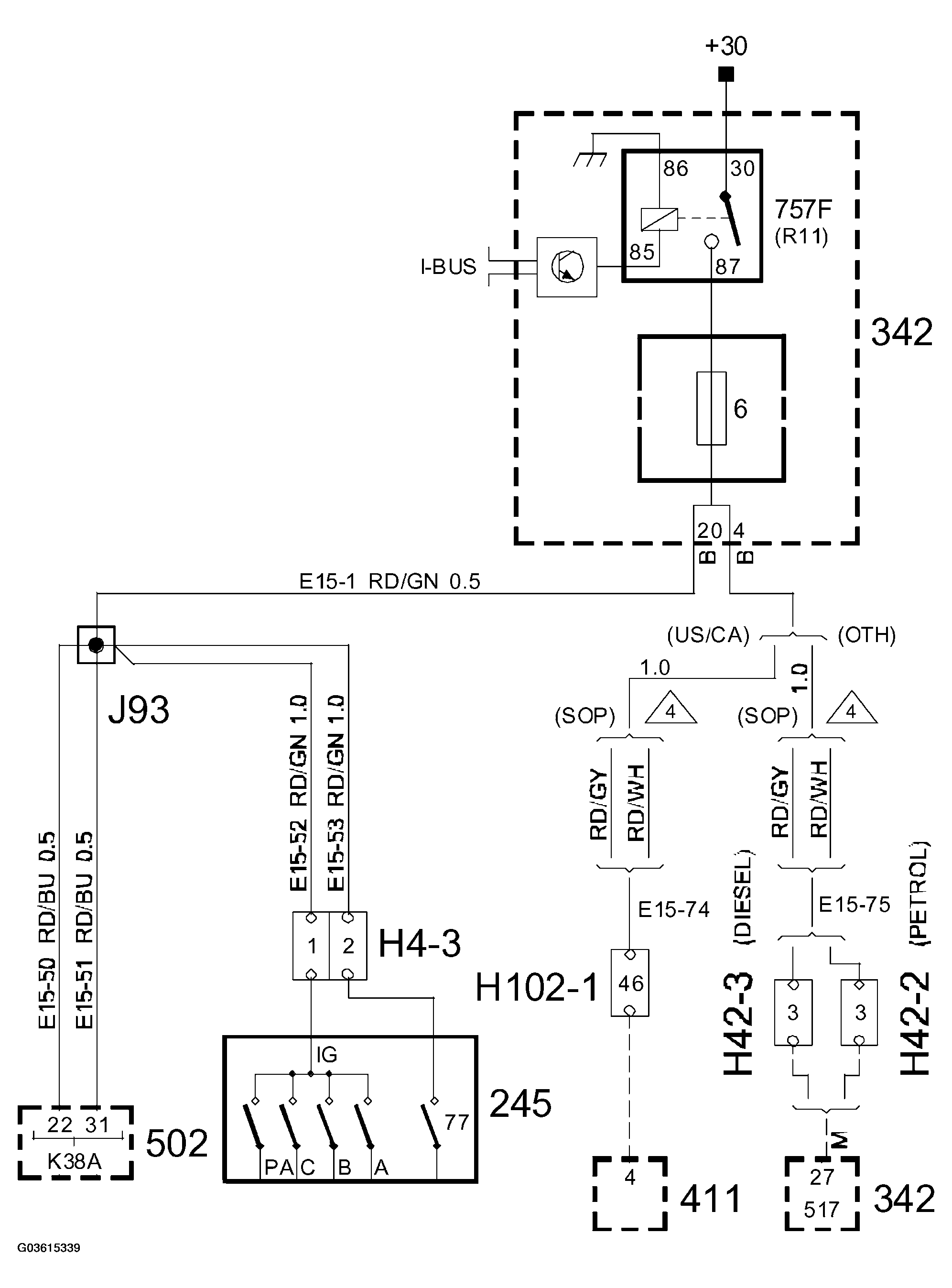

Fig 1: Identifying Main Harness Crimp J93 Connection Diagram
G03615339Courtesy of SAAB-SCANIA OF AMERICA, INC.
