Starter motor, B207: Notes

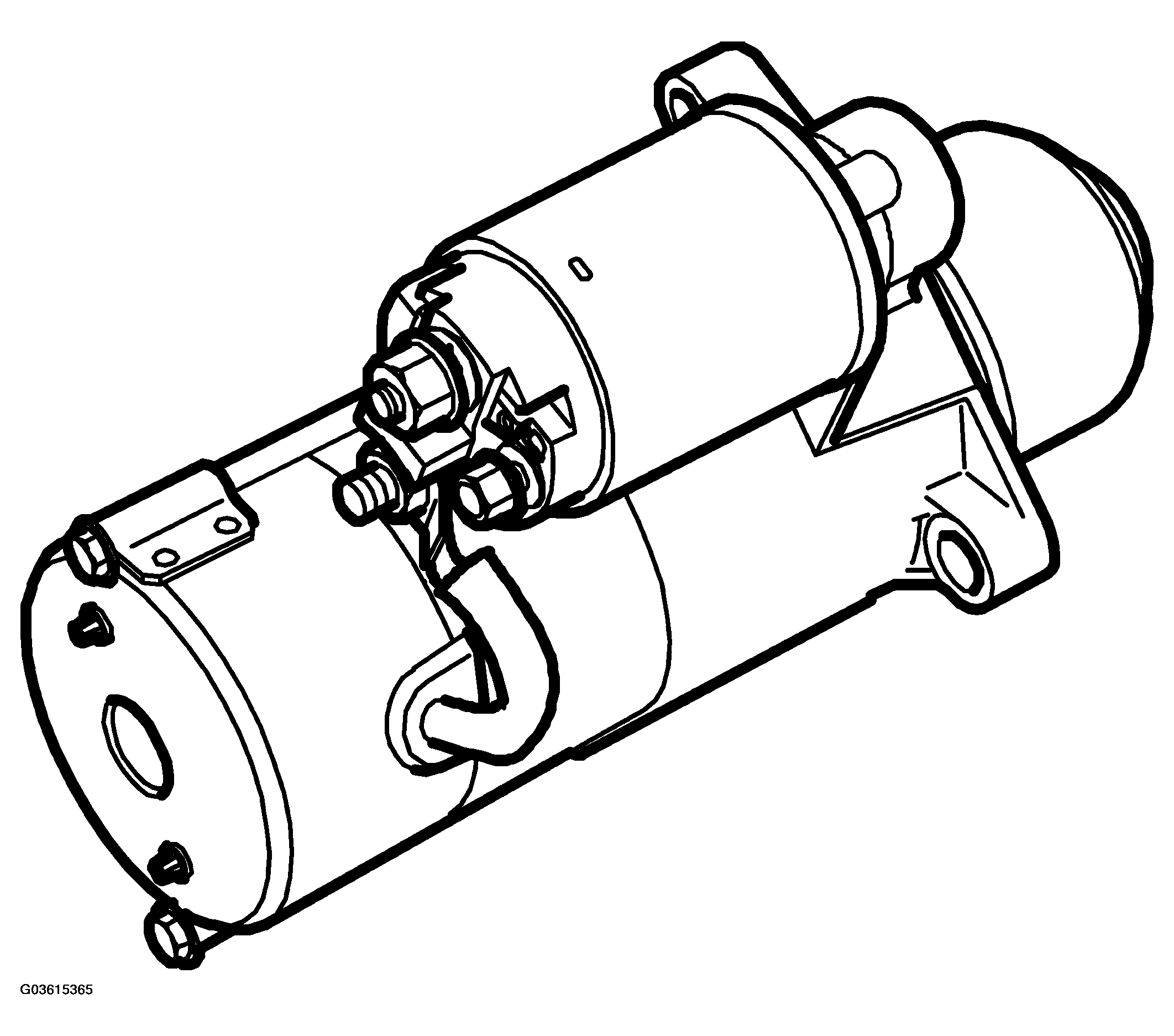

Fig 1: Identifying Starter Motor, B207
G03615365Courtesy of SAAB-SCANIA OF AMERICA, INC.
STARTER MOTOR SPECIFICATION

Type designation Delco
Power 1.8 kW
No. of teeth on starter motor pinion 11
Number of teeth on ring gear 135
Ratio engine/starter motor 12.5:1
