Component Location

To locate starting system components, see Fig 1 or Fig 2.

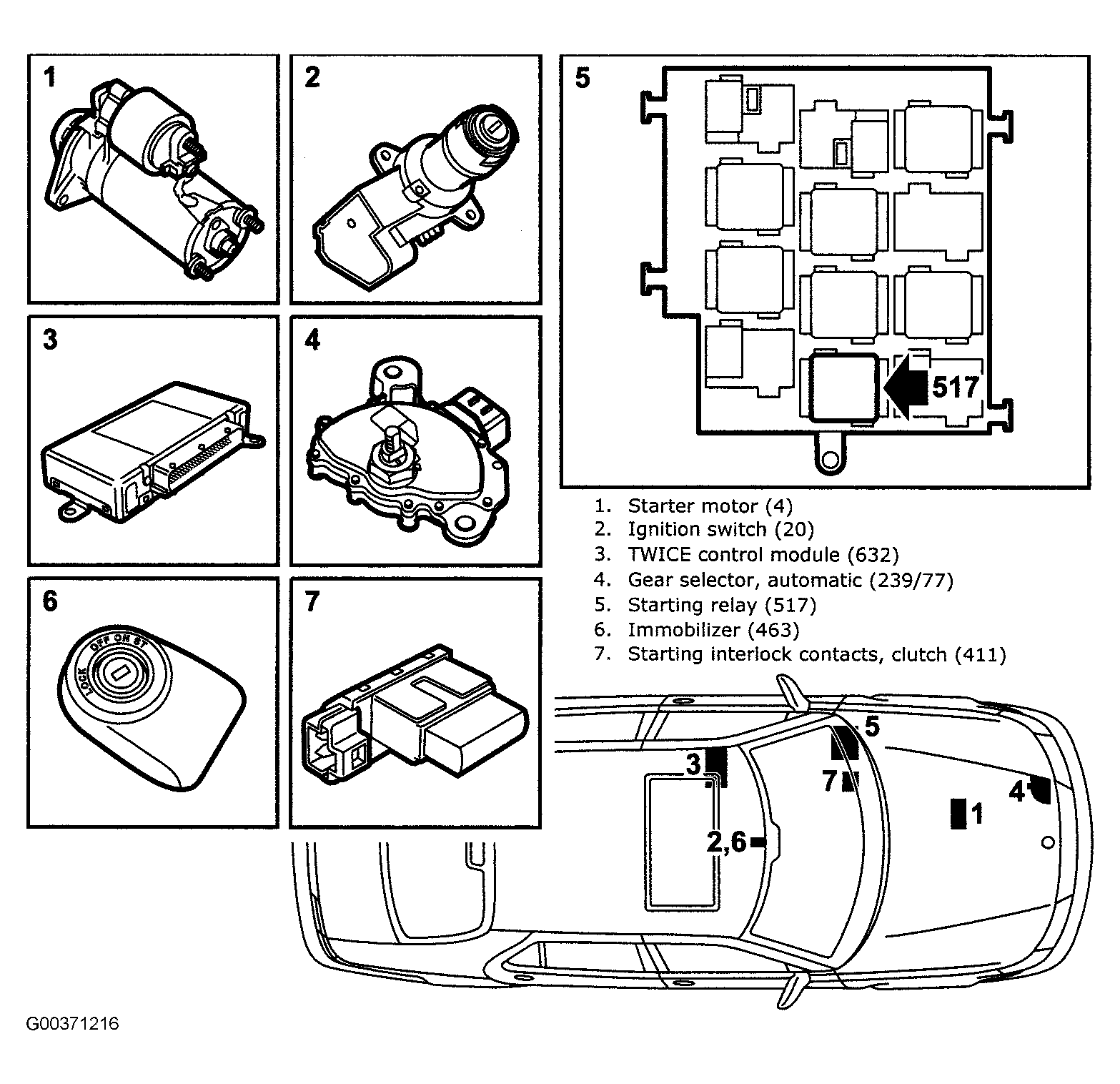

Fig 1: Locating Starting System Components (9-3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

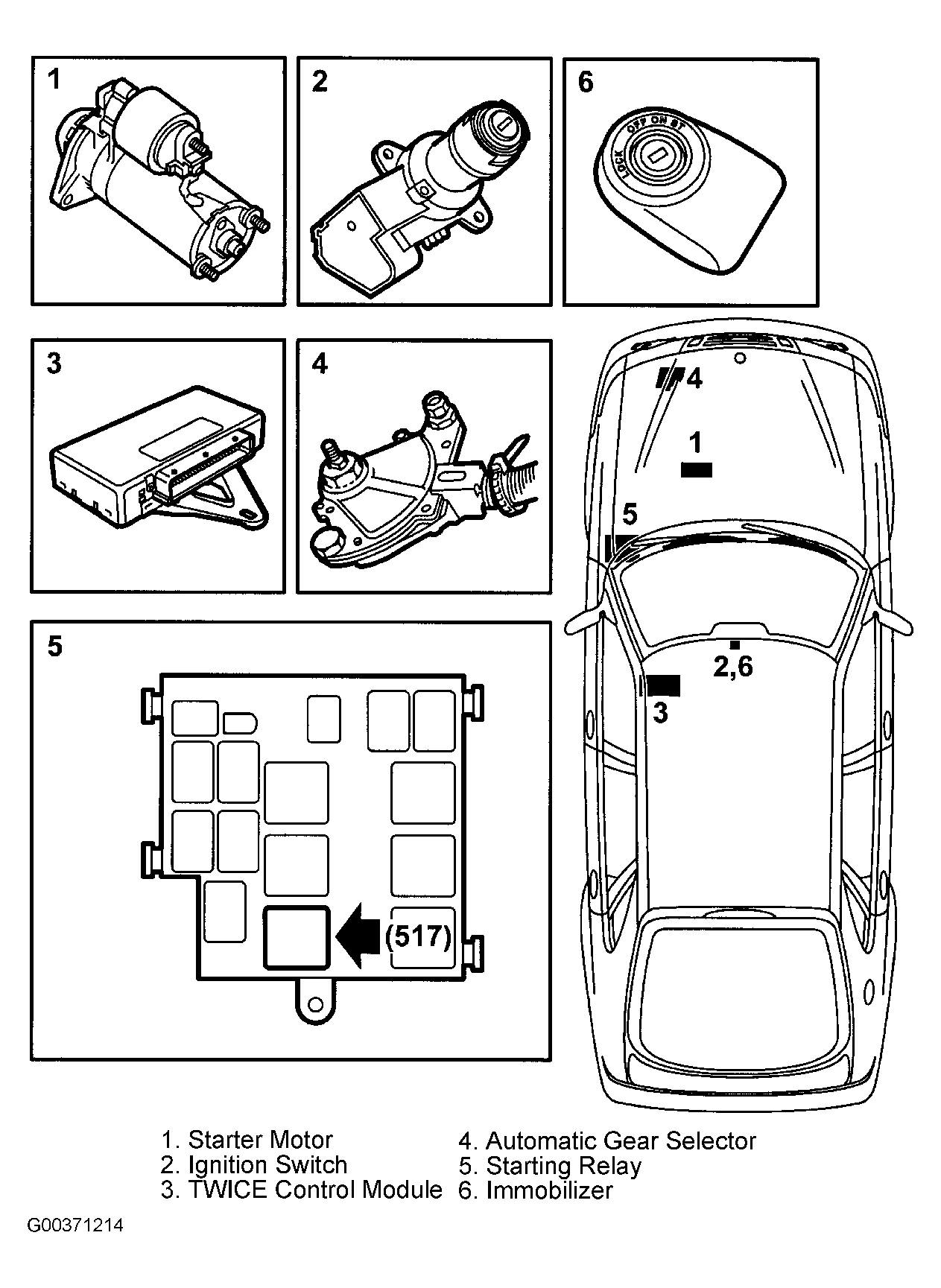

Fig 2: Locating Starting System Components (9-5)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
