SID (541): Connection: Notes

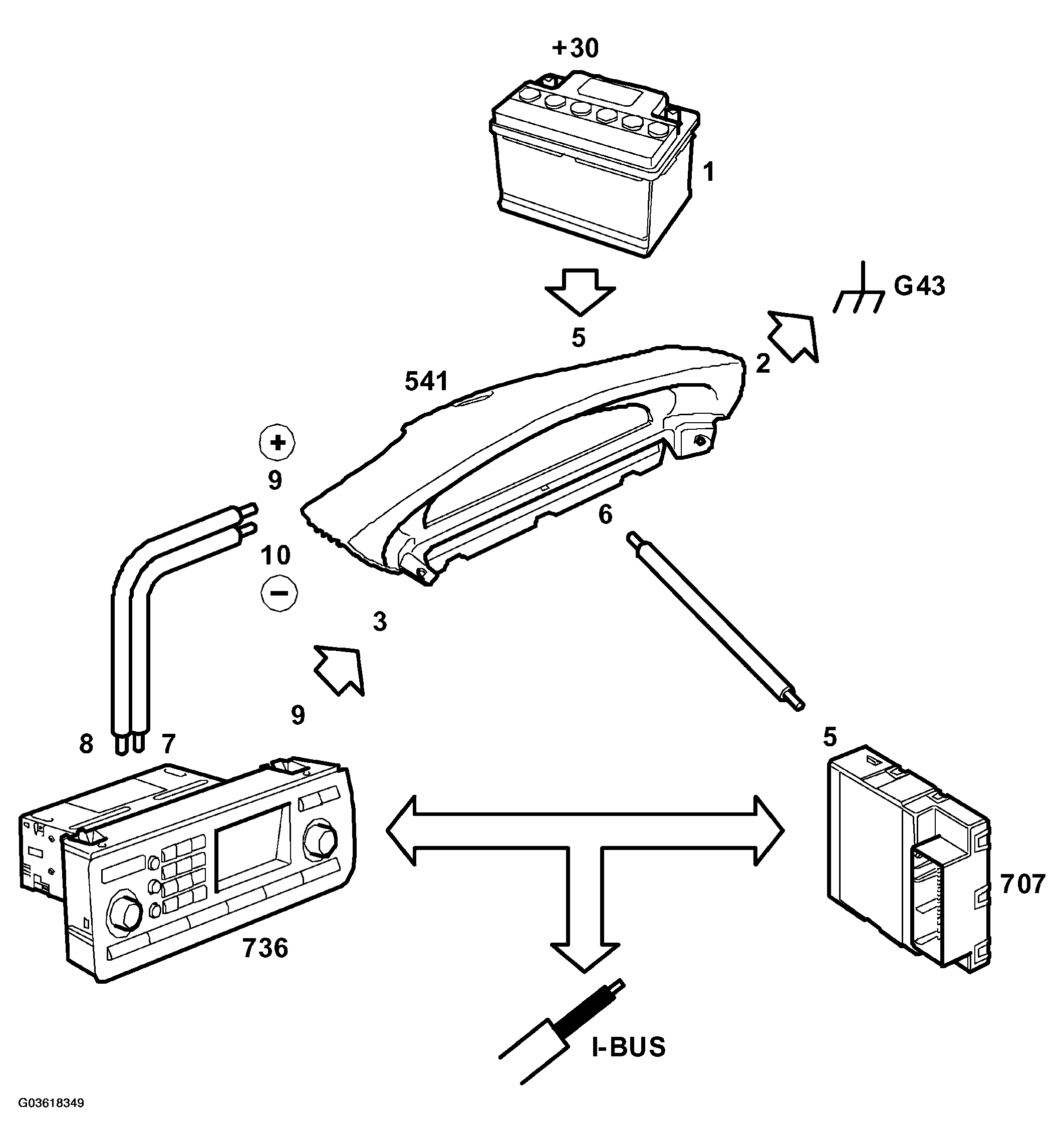

SID - CONNECTION DESCRIPTION
| Pin no. | Signal type | Description |
|---|---|---|
| 2 | Ground | Grounding point G43 |
| 3 | Wake-up signal | Wake-up lead from ICM pin 9. |
| 5 | +30 supply | From instrument panel main fuse box (22) pin 14 via fuse 14. |
| 6 | Signal input, alarm indicator light | If an alarm is fitted, pin 6 will be connected and alarm status will be indicated by the LED on SID. |
| 9 | Communication cable, bus (+) | Lead to ICM pin 8. |
| 10 | Communication cable, bus ( -) | Lead to ICM pin 7. |
