Generator 130A, 4-cyl petrol

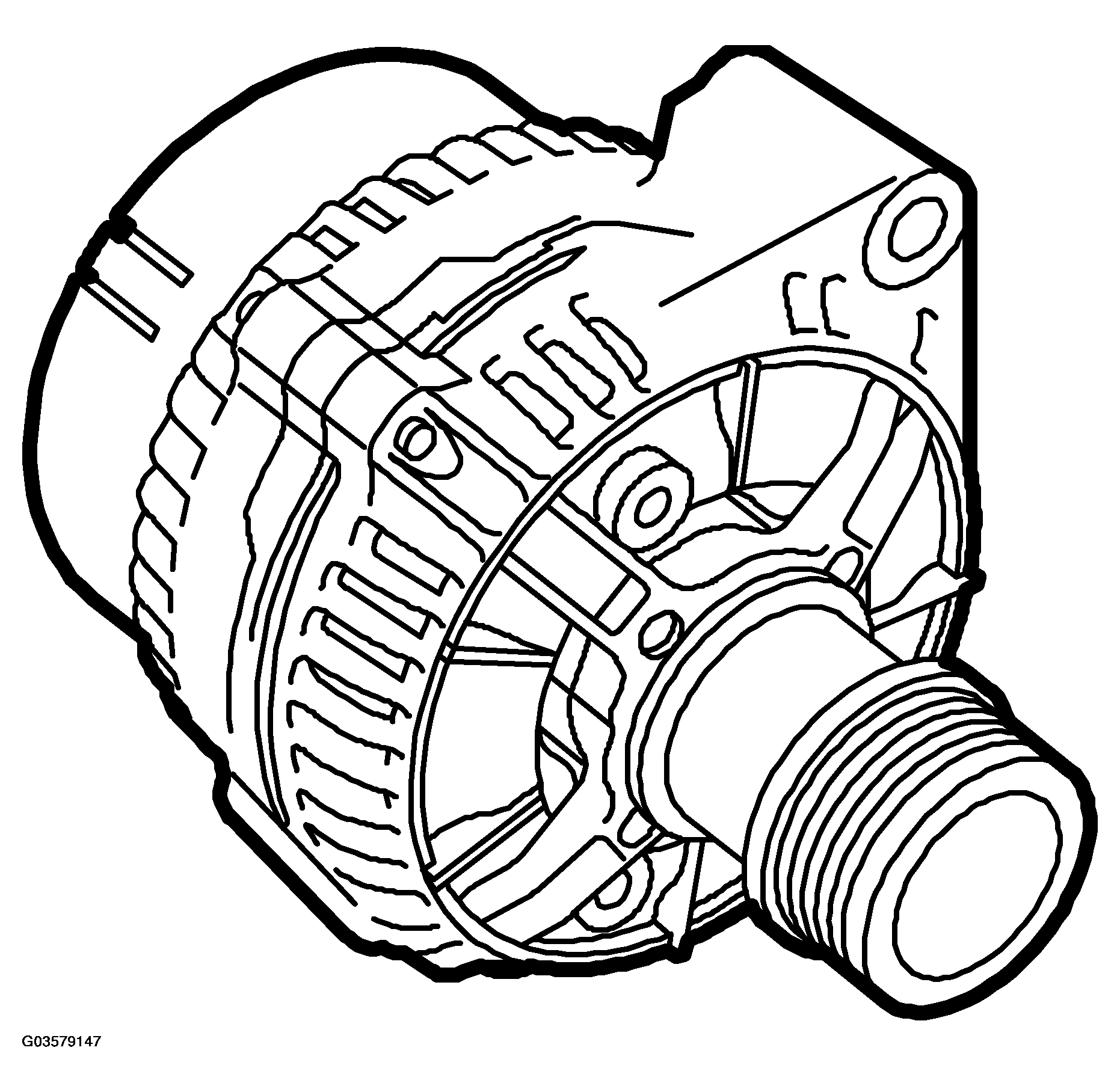

Fig 1: View Of Generator 130A, 4-Cyl Petrol

Courtesy of SAAB-SCANIA OF AMERICA, INC.

GENERATOR 130A, 4-CYL PETROL SPECIFICATIONS

Type designation	Bosch NC 14V 65-130A
Rated voltage	14 V
Stator connection	Delta connection
Slip ring diameter: new min	15.4 mm 14.4 mm
Max. permissible radial runout: belt pulley slip rings rotor	0.2 mm 0.02 mm 0.087 mm
Min. brush length, from brush holder opening	7.5 mm
Ratio crankshaft/generator belt pulleys	1:2.85

TEST VALUES

Test values
Resistance, rotor winding Resistance, stator between phases	2.6 Ohm 0.051 Ohm
Generator RPM/rated current at: 1800 RPM 6000 RPM	65A 130A
