To remove

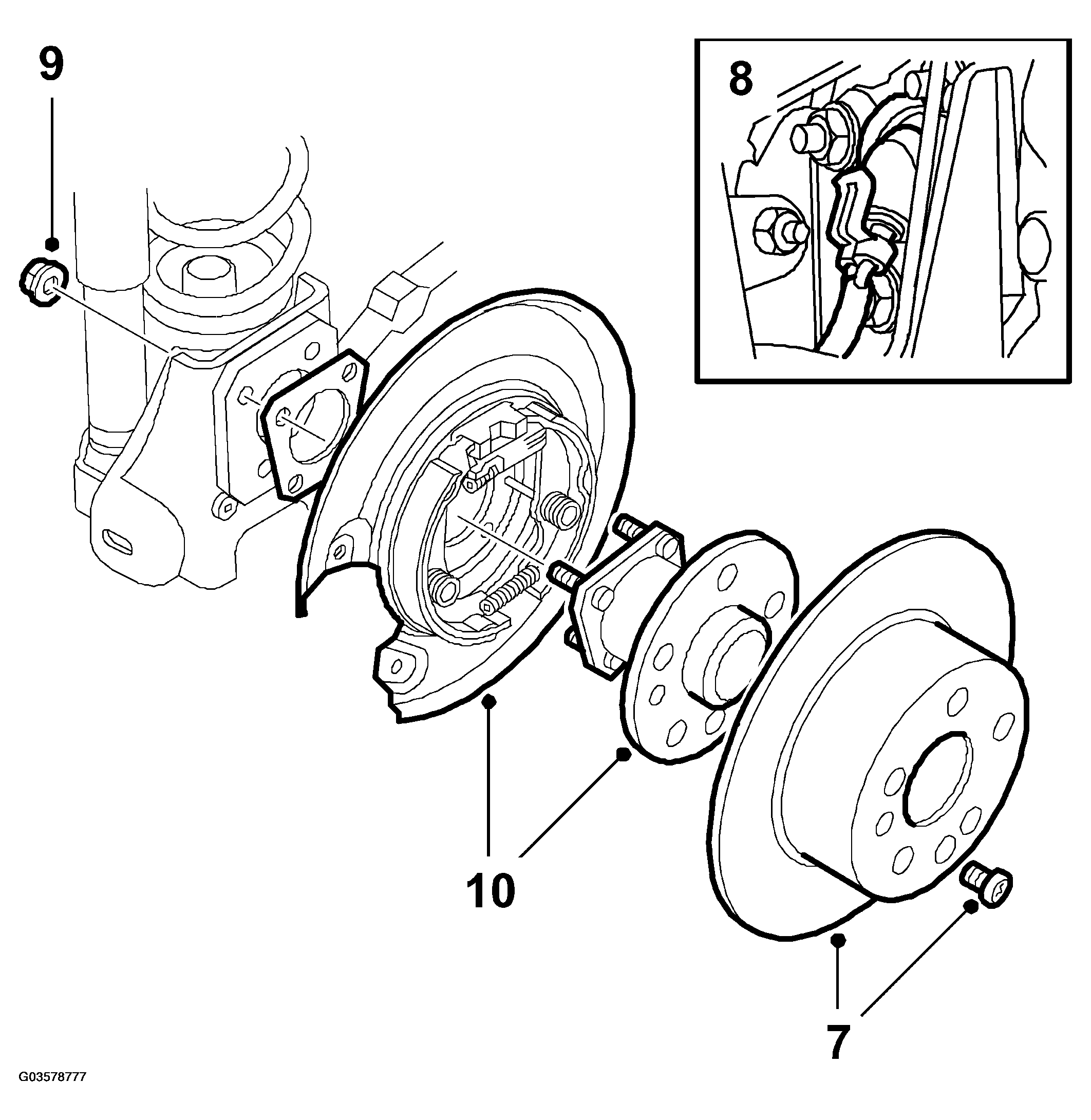

Fig 1: Illustration For Steps 7-10
G03578777Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the wheel.
  2. Press the brake pistons back, using a pair of slip-joint pliers.
  3. Remove the brake caliper's two retaining bolts. Remove the brake pipe from the clips. Use a cable tie to hang the brake caliper up out of the way.
  4. Back off the adjustment for the handbrake shoes (accessible through a hole in the brake disc).
  5. Remove the lever return spring.
  6. Detach the handbrake cable from the lever.
  7. Remove the brake disc retaining bolts and take off the brake disc.
  8. Separate the wheel sensor connector.
  9. Remove the four wheel-hub nuts.
  10. Remove the wheel hub, back-plate and spacer.

    Separate the wheel hub from the back-plate.
