Clutch pedal switch (133)

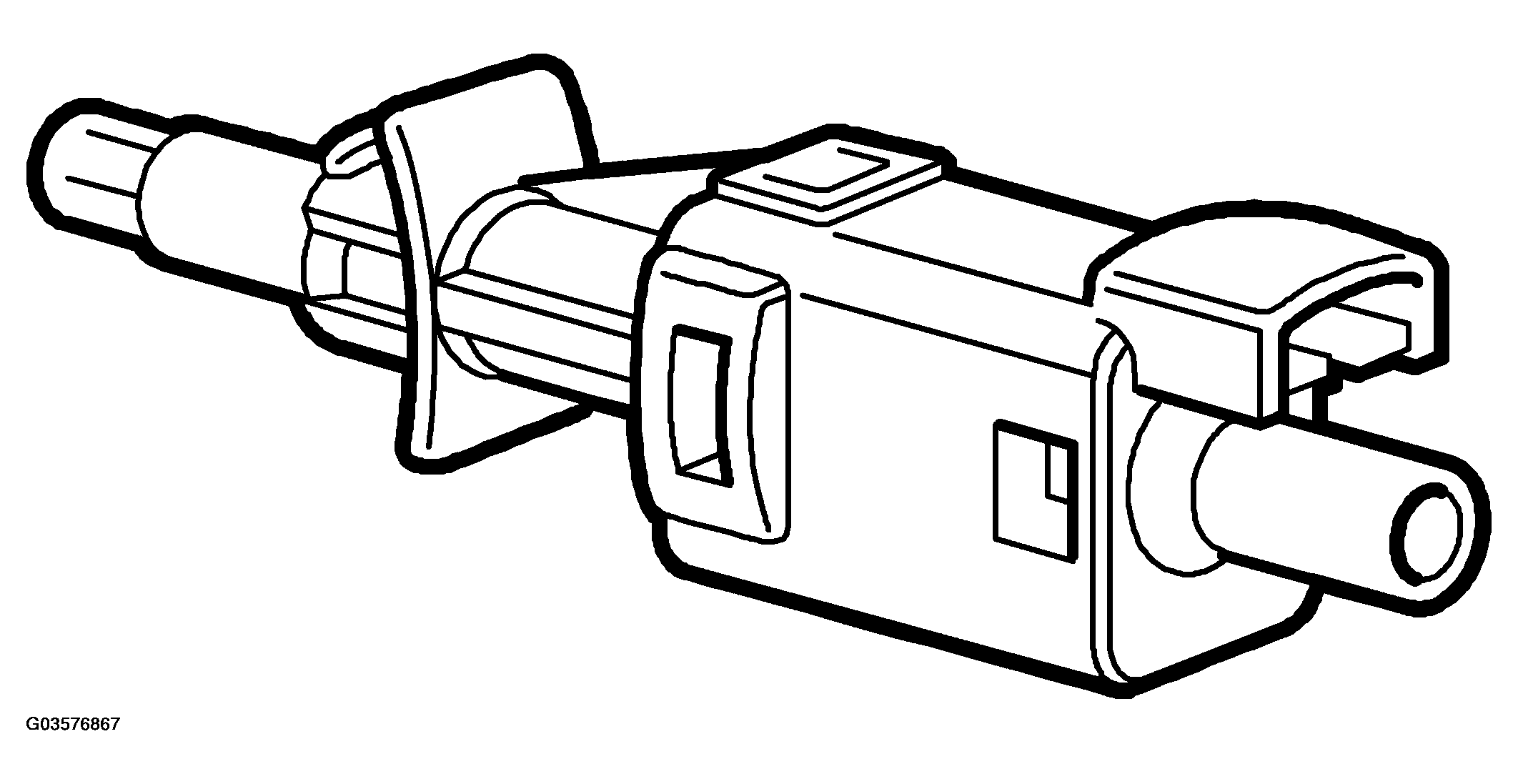

Fig 1: Identifying Clutch Pedal Switch
G03576867Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - CLUTCH PEDAL SWITCH

Location On pedal bracket
Characteristics, pins 1-2 Normally closed when pedal released
