Home >> Saab >> 2003 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault Diagnosis, Symptoms >> Cruise control not working >> Notes

Cruise control not working: Notes

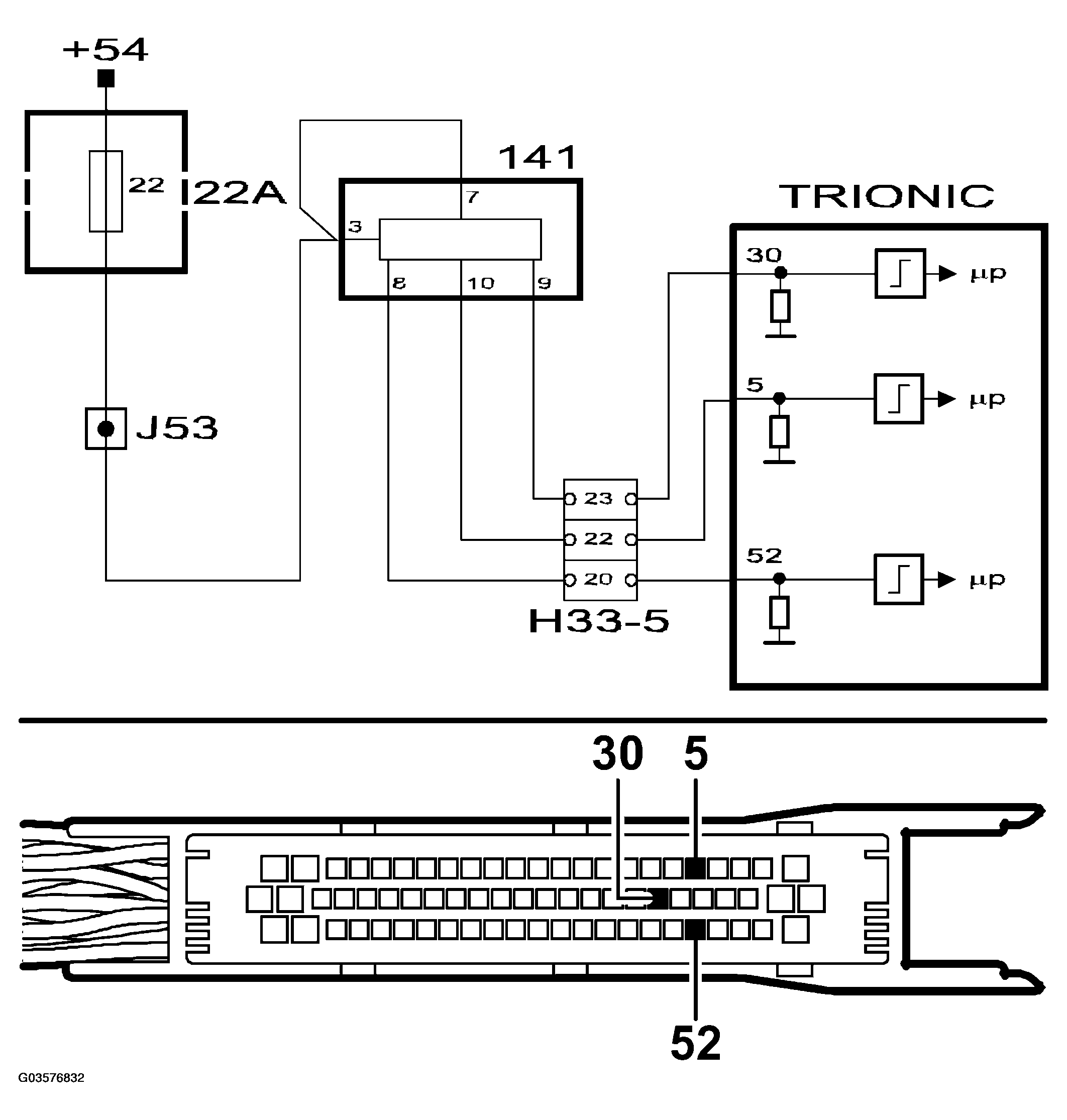

Fig 1: Circuit Diagram - Cruise Control Not Working (1 Of 2)
G03576832Courtesy of SAAB-SCANIA OF AMERICA, INC.

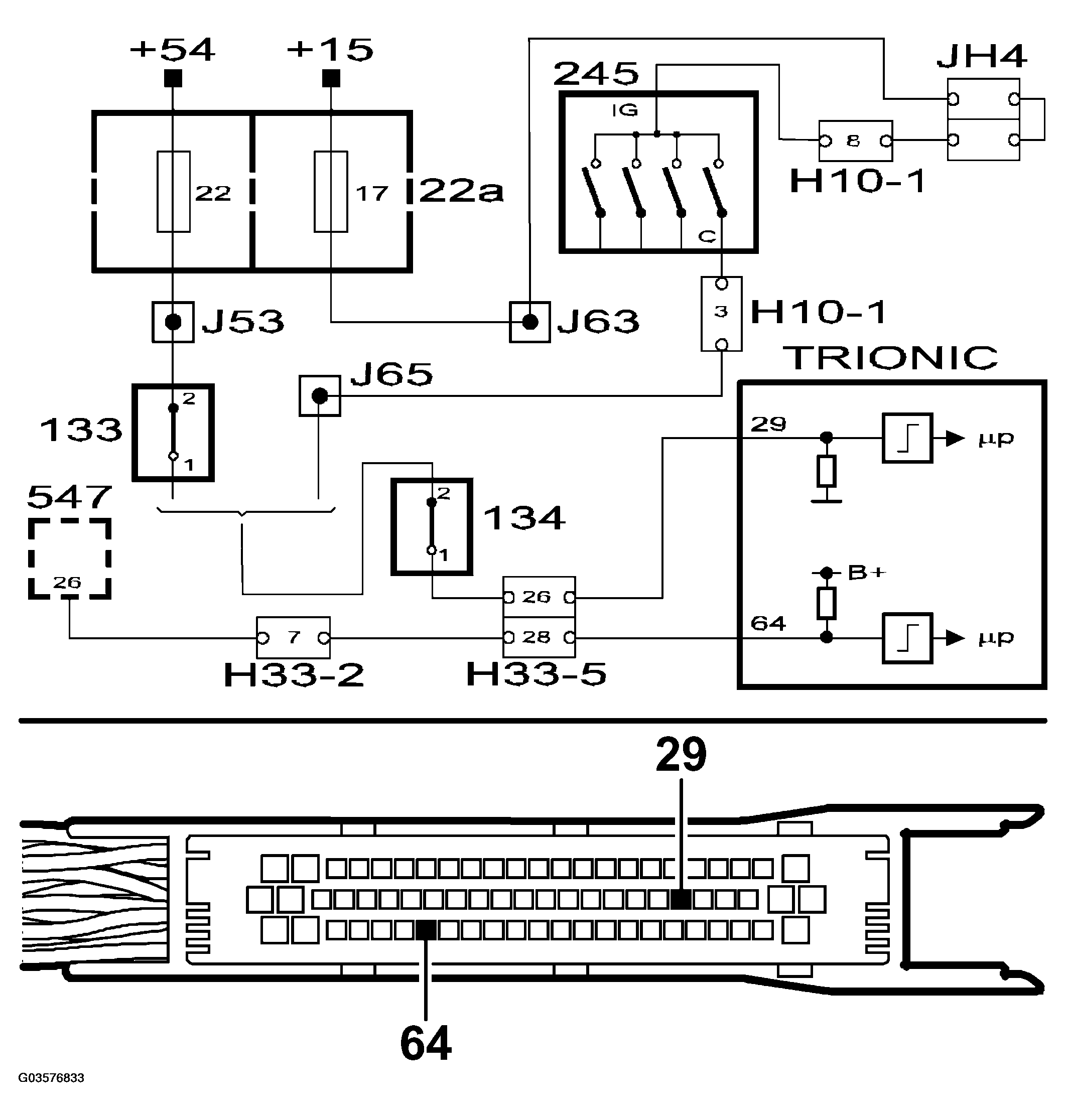

Fig 2: Circuit Diagram - Cruise Control Not Working (2 Of 2)
G03576833Courtesy of SAAB-SCANIA OF AMERICA, INC.
