Home >> Saab >> 2003 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Component Location >> Temperature sensor, intake air (407) >> EDC15

Temperature sensor, intake air (407): EDC15

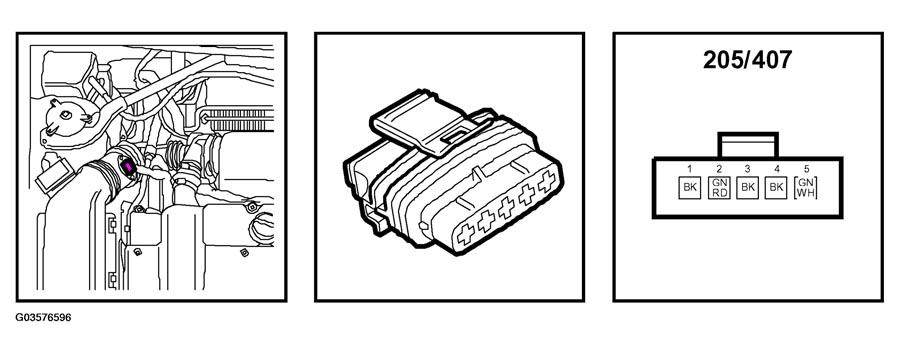

Fig 1: Identifying Intake Air Temperature Sensor Connector Pinouts - EDC15

G03576596

Courtesy of SAAB-SCANIA OF AMERICA, INC.
