Relay, limp-home (640)

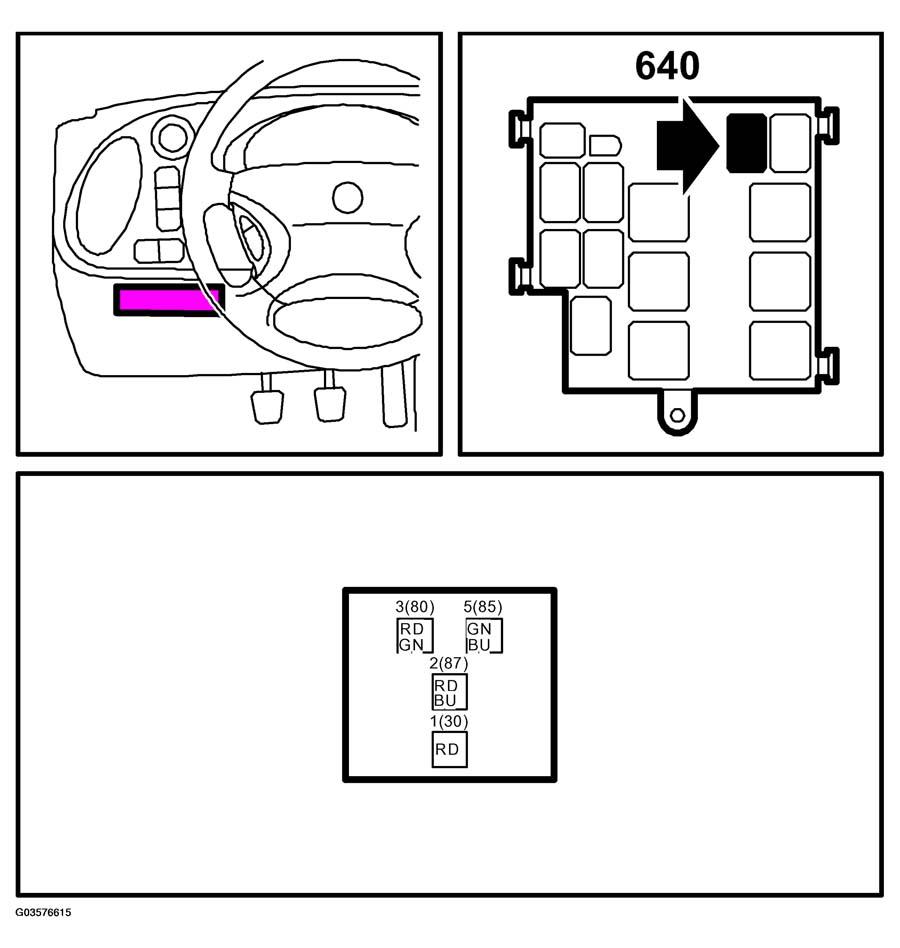

Fig 1: Identifying Limp-Home Relay - Connector Pinouts
G03576615Courtesy of SAAB-SCANIA OF AMERICA, INC.
