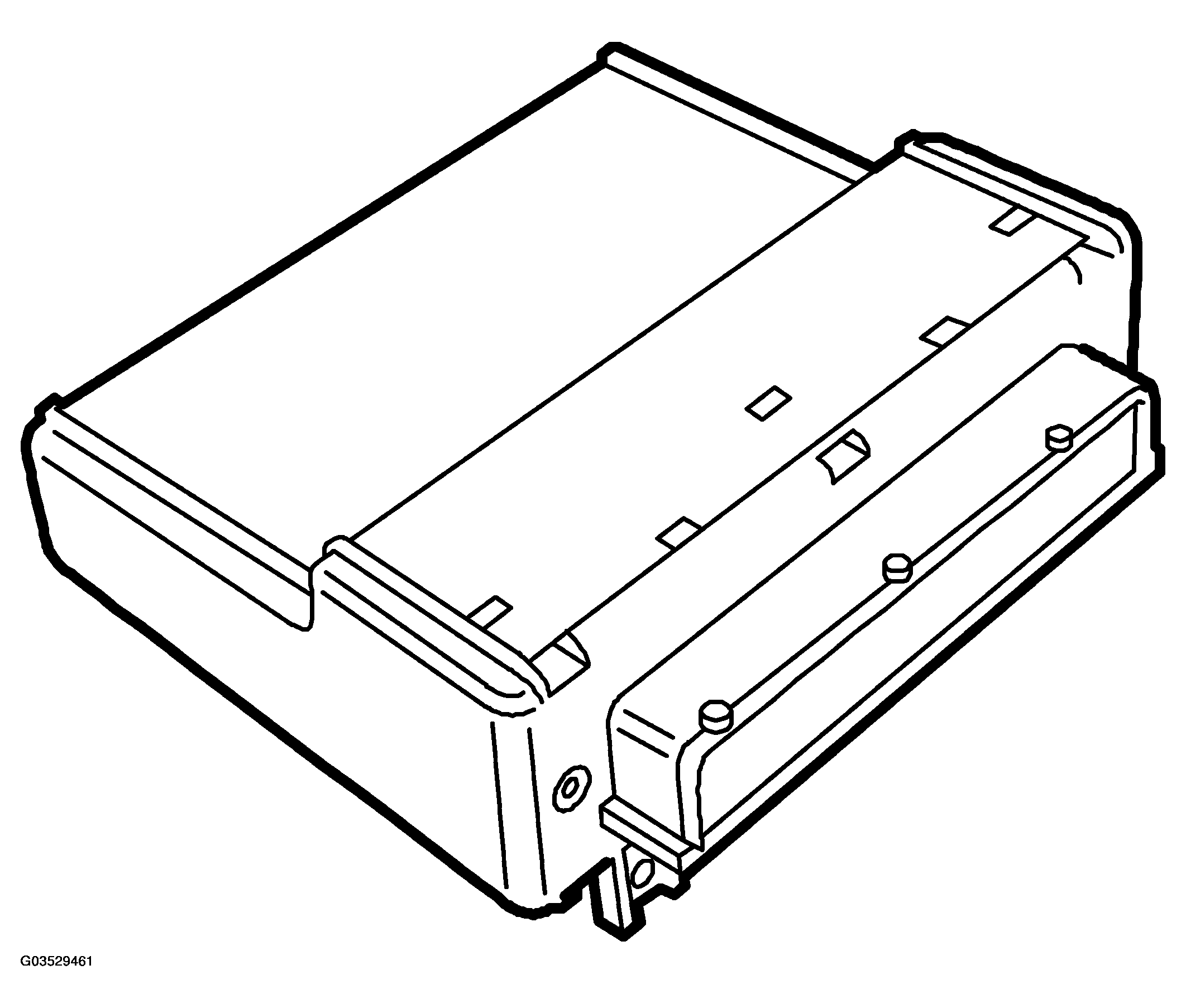

Control Module
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL MODULE REFERENCE DATA
| Location | LHD | Above main relay board |
| RHD | Next to main relay board | |
| Number of pins | 70 | |
| Power supply (+B circuit) | Pin no. | 7 |
| Power supply (+15 circuit) | Pin no. | 64 |
| Power supply (+30 circuit) | Pin no. | 26 |
| Power supply (+54 circuit) | Pin no. | 31 |
| Power ground | Pin no. | 57 |
| Instrument bus, I-BUS (+) | Pin no. | 14 |
| Instrument bus, I-BUS (-) | Pin no. | 5 |
