To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

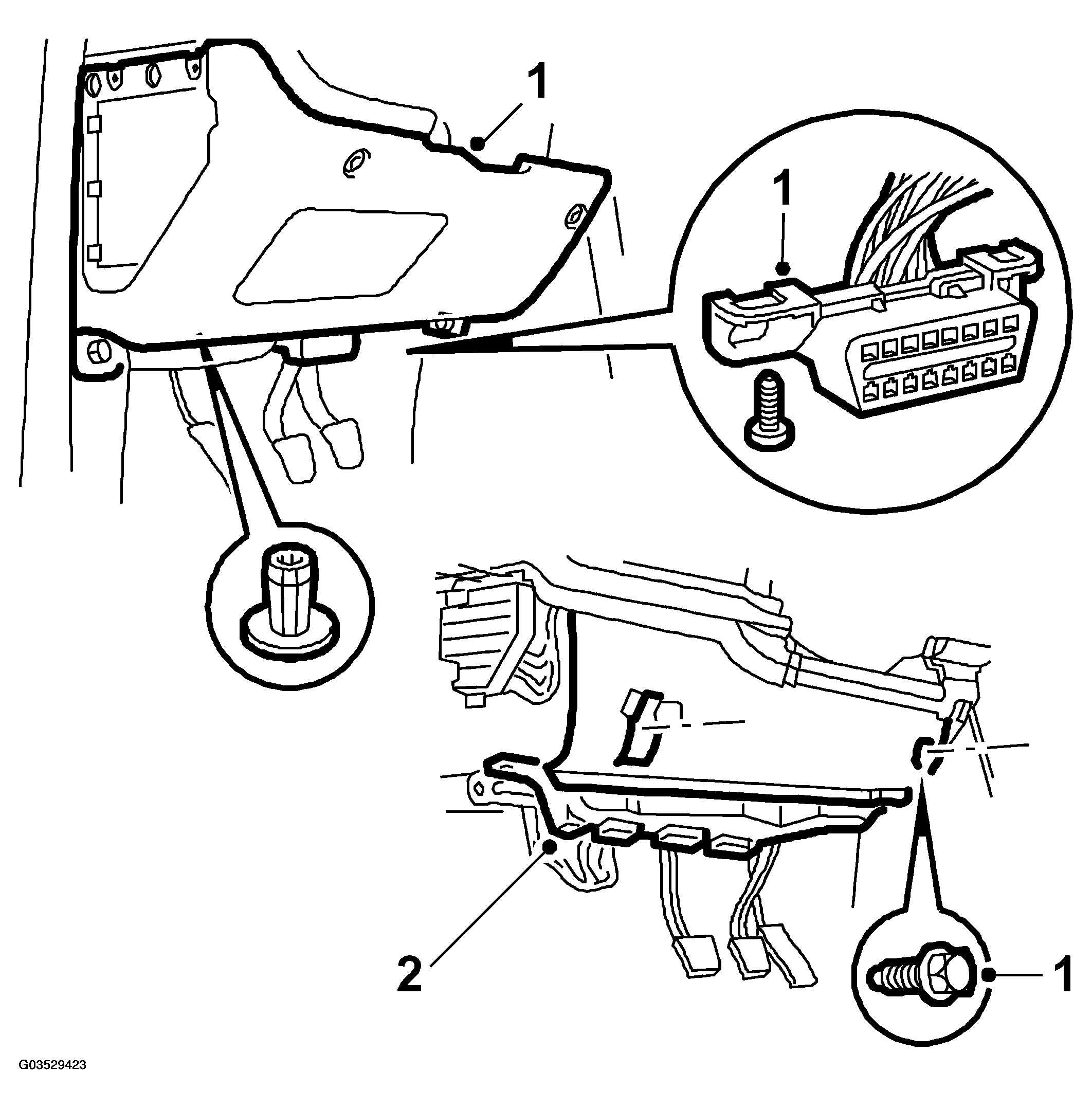

Fig 1: Illustration For Step 1-2
G03529423Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Undo the knee shield above the pedal bracket
  2. Lift off the air duct for easier access to the relay retainer behind it. (Only LHD)

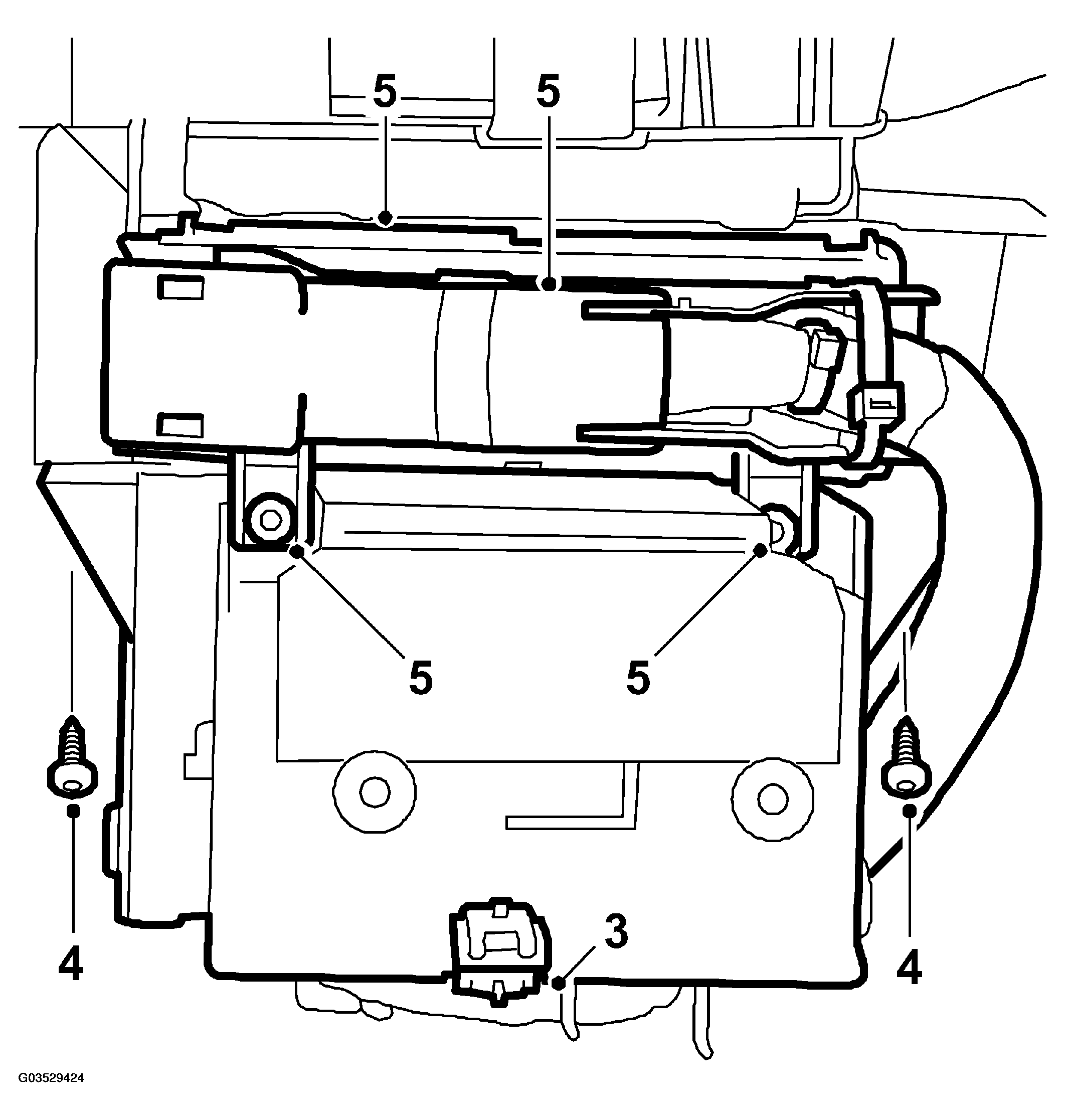

    Fig 2: Illustration For Step 3-5
    G03529424Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the screw securing the relay retainer and place it out of the way.
  4. Undo the screws to the bracket on which the control module is mounted.
  5. Unplug the connectors on the DICE control module and remove the screws. Lift off the DICE control module.
