To Fit

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

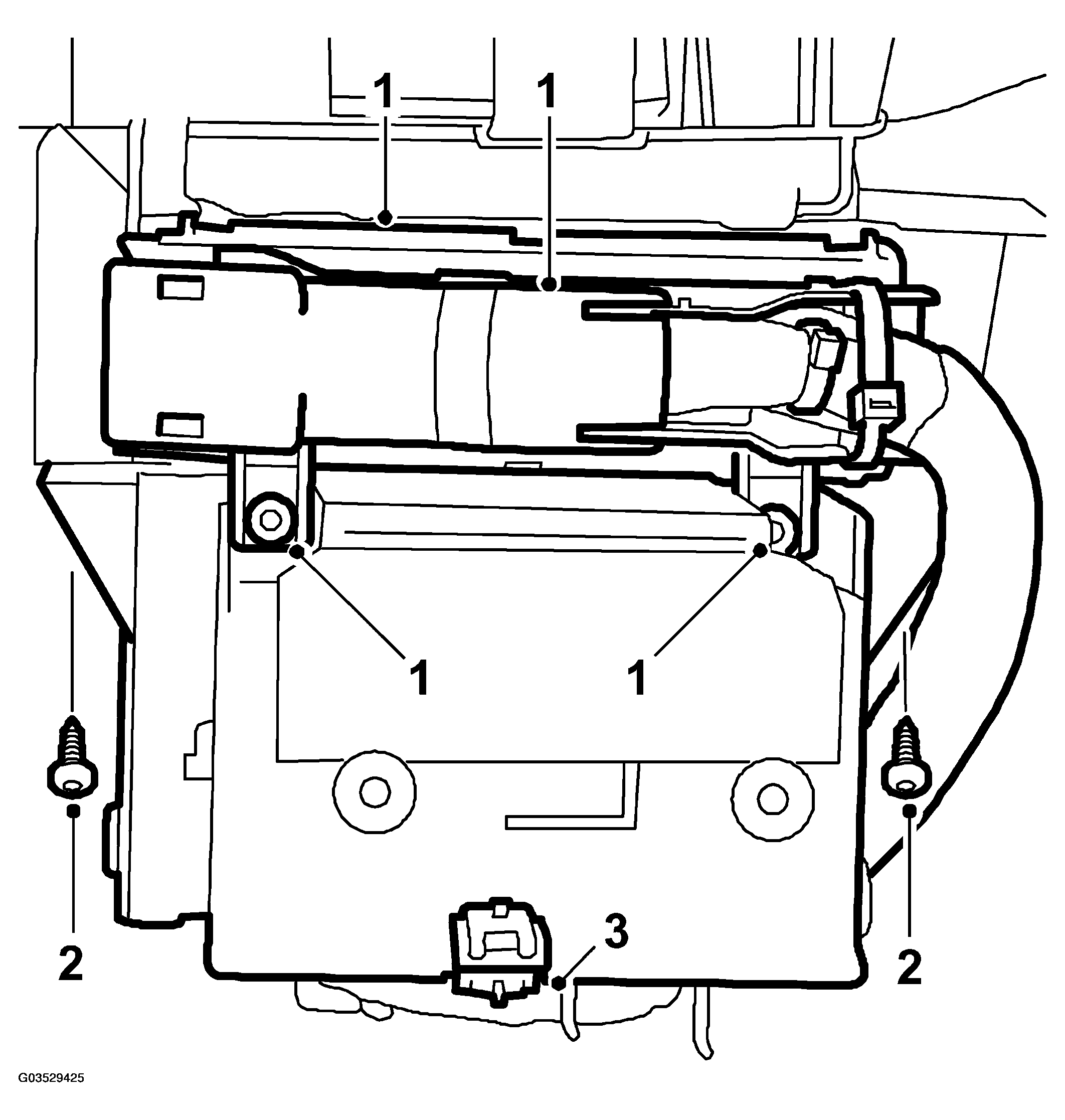

Fig 1: Illustration For Step 1-3
G03529425Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the control module to the bracket with two screws and plug in the connectors to the control module.
  2. Fit the bracket.
  3. Reposition the relay retainer and tighten the screws.

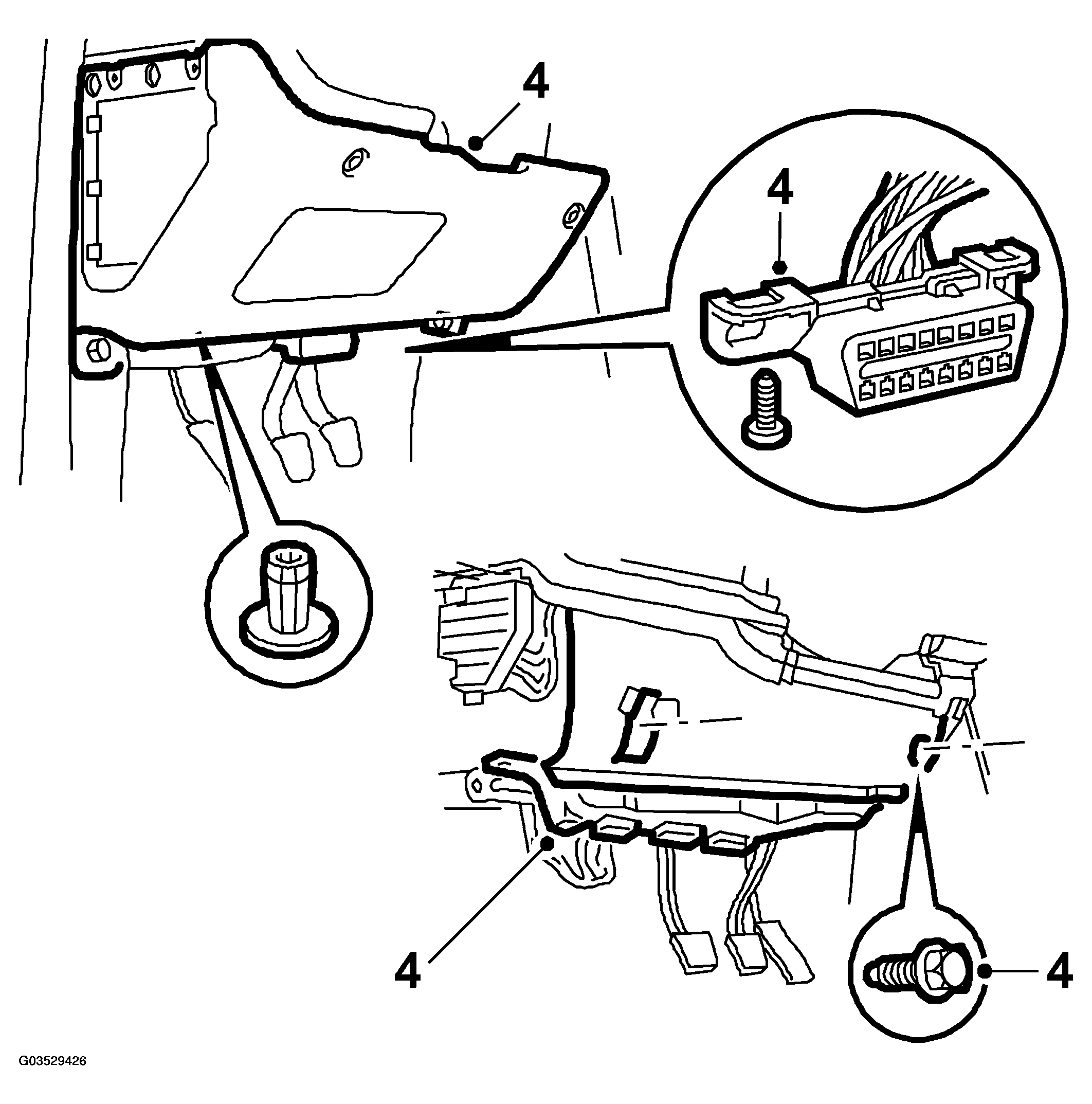

    Fig 2: Illustration For Step 4
    G03529426Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the knee shield.
  5. Spare parts programming must  be carried out after changing the DICE control module. Follow instructions given in the "Programming" menu in the diagnostic tool.
