Window seals

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Outer window -well seal, door window

    Seals between the outside of the door window and the door. It is pressed onto the outer door plate and is secured with a clip at the rear.

  2. Inner window-well seal, door window

    Seals between the door window and the door. It is pressed onto the seal holder flange.

  3. Front seal, door window

    Seals between the front part of the door window and the base of the door mirror. It is pressed onto the front window guide rail and the front edge is secured with a clip.

  4. Outer window -well seal, rear side window

    Seals between the outside of the rear side window and the side plate. it is integrated with the decor strip on the top edge of the side plate, which in turn is pressed onto the side plate flange.

  5. Inner window-well, rear side window

    Seals between the inside of the rear side window and the inner side plate. It is pressed onto a holder that is screwed to the inner side reinforcement. The holder is adjustable sideways.

  6. Front seal, rear side window

    Seals between the rear side window and the door window. It is integrated with the rear side window.

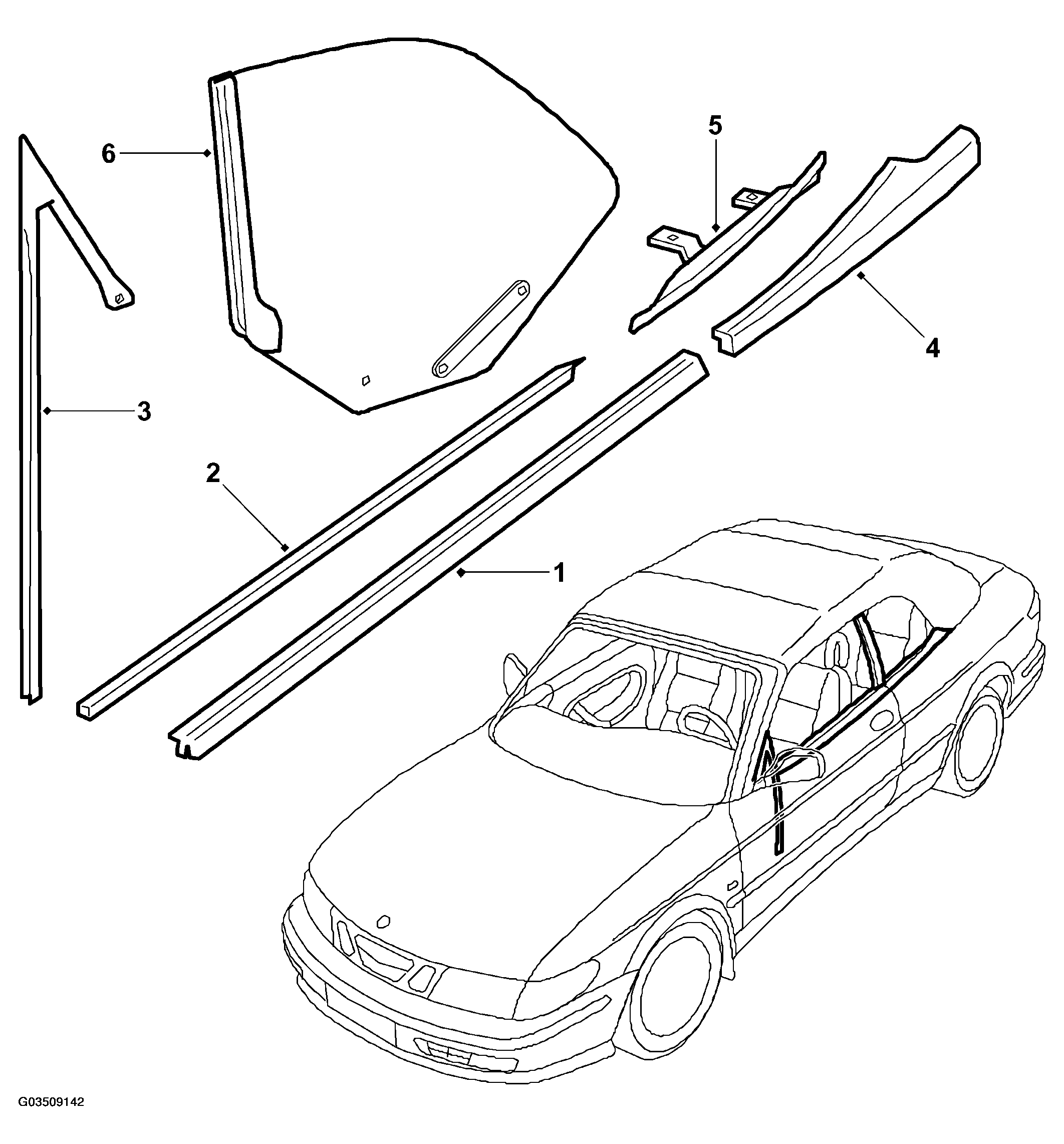

    7. Fig 1: Illustration For Steps 1-6
    G03509142Courtesy of SAAB-SCANIA OF AMERICA, INC.
