ROOF switch

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The soft top is operated with a switch located on the switch panel in the center console. The switch is fed with B+ from control module pin 40.

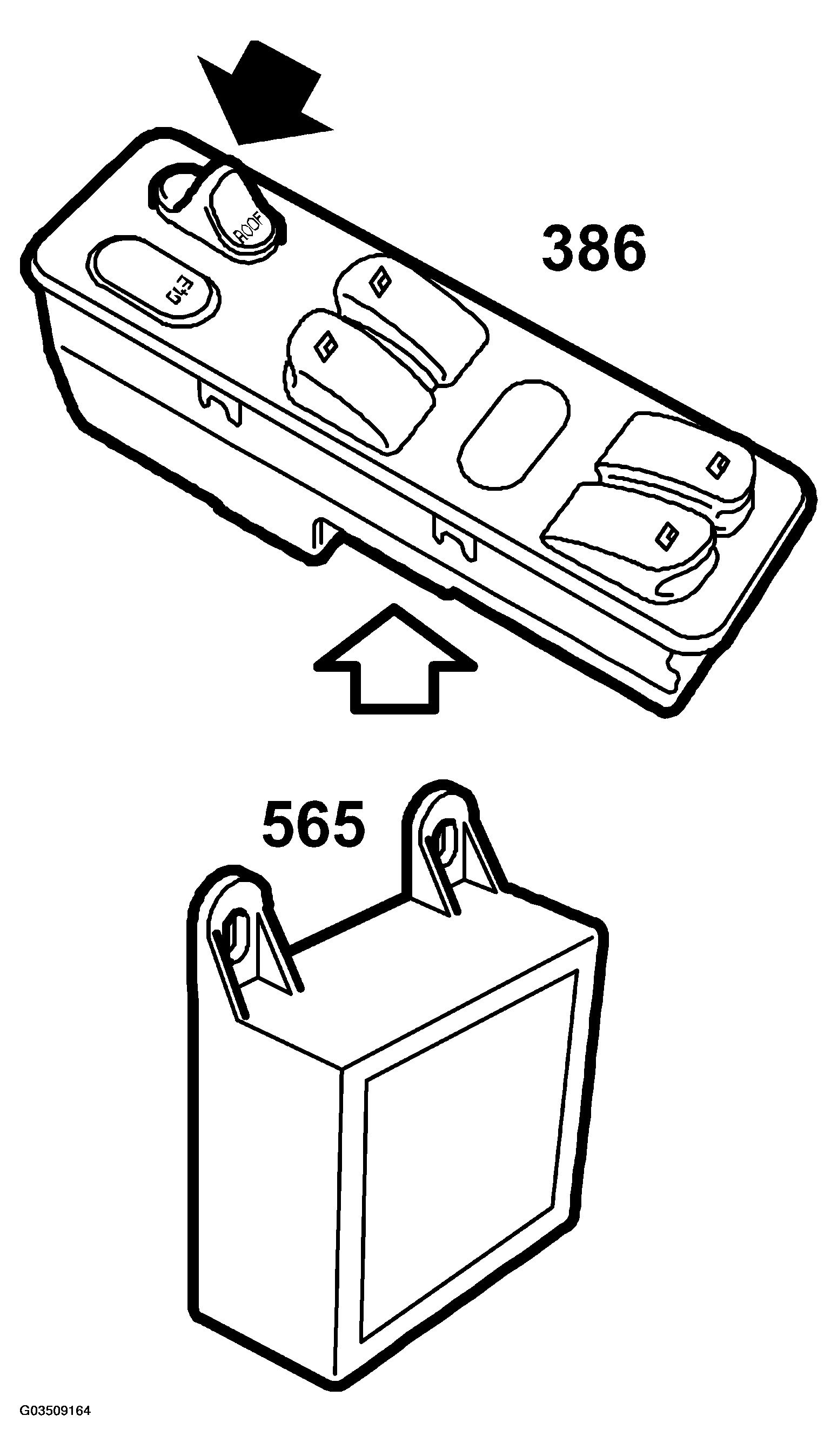

Fig 1: Identifying Roof Switch Panel
G03509164Courtesy of SAAB-SCANIA OF AMERICA, INC.

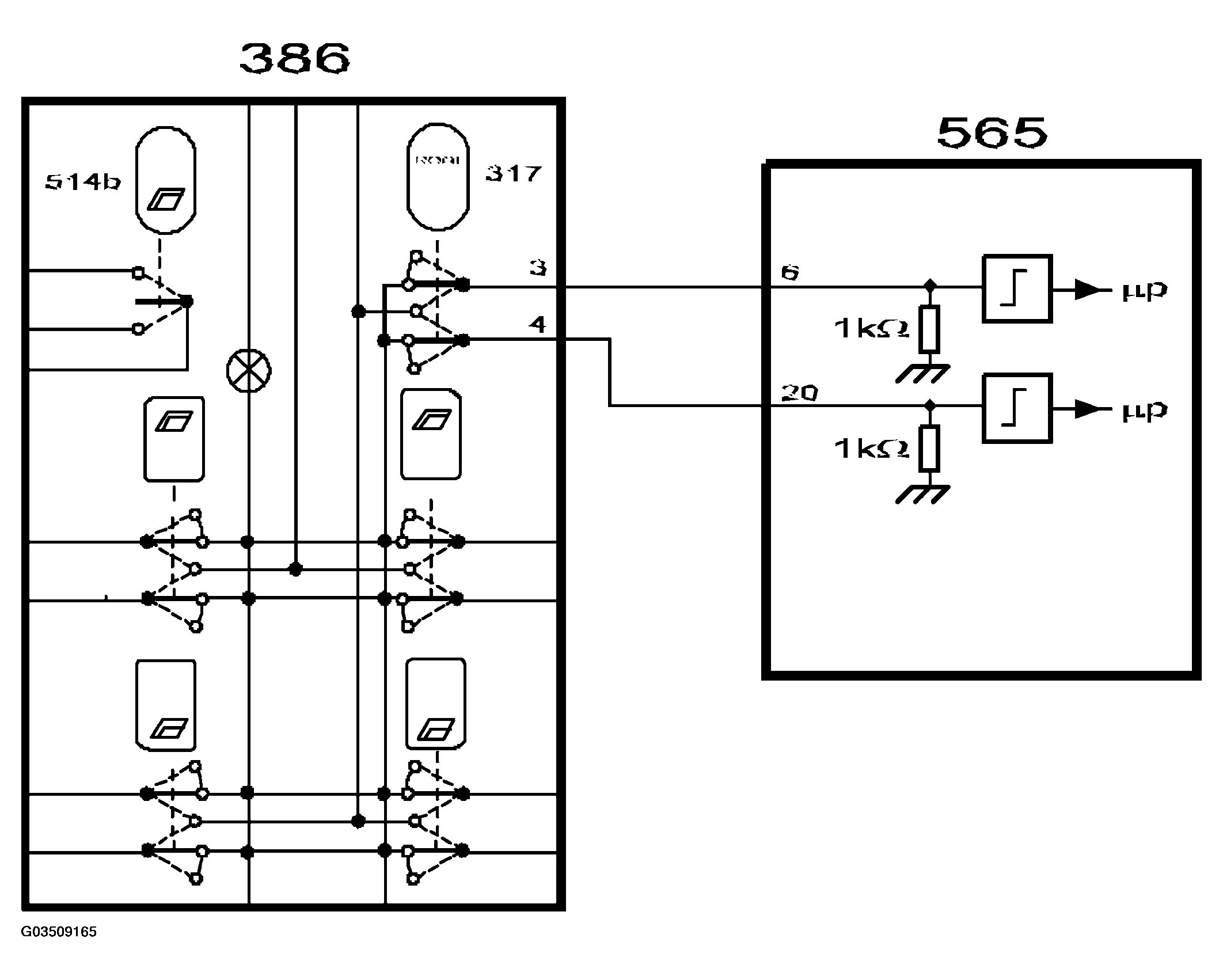

Fig 2: Identifying Roof Switch Connection Diagram
G03509165Courtesy of SAAB-SCANIA OF AMERICA, INC.

When the switch is pressed backwards (open soft top), the switch closes and output 4 from the switch panel feeds pin 20 in the control module with B+.

When the switch is pressed forward (close soft top), the switch closes and output 3 from the switch panel feeds pin 6 in the control module with B+.
