Compressor (170): Notes

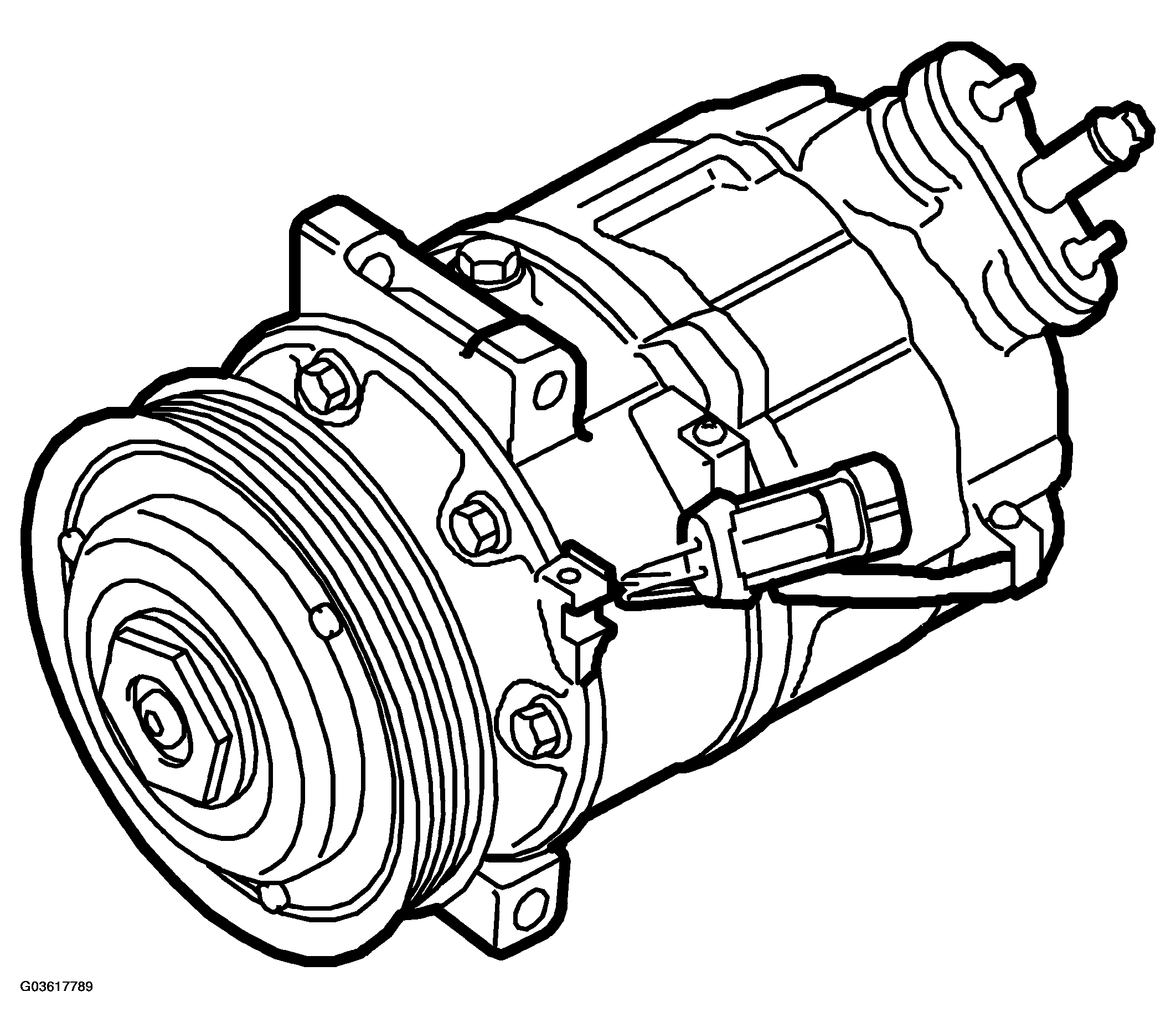

Fig 1: Identifying Compressor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - COMPRESSOR

Type designation		Sanden PXV16
Compressor type		Reciprocating compressor with variable displacement
Cylinder volume	cm³	163/5,5
Oil quantity, new compressor	ml	120 +/- 15 cc
Speed range	r/min	575-8000
Weight with clutch	kg	6,2
Overheating protection in electromagnetic clutch (cannot be reset)	° C	182+/- 5
Play, electromagnetic clutch	mm	0,45+/- 0,15
