Fuel pressure regulator, test readings

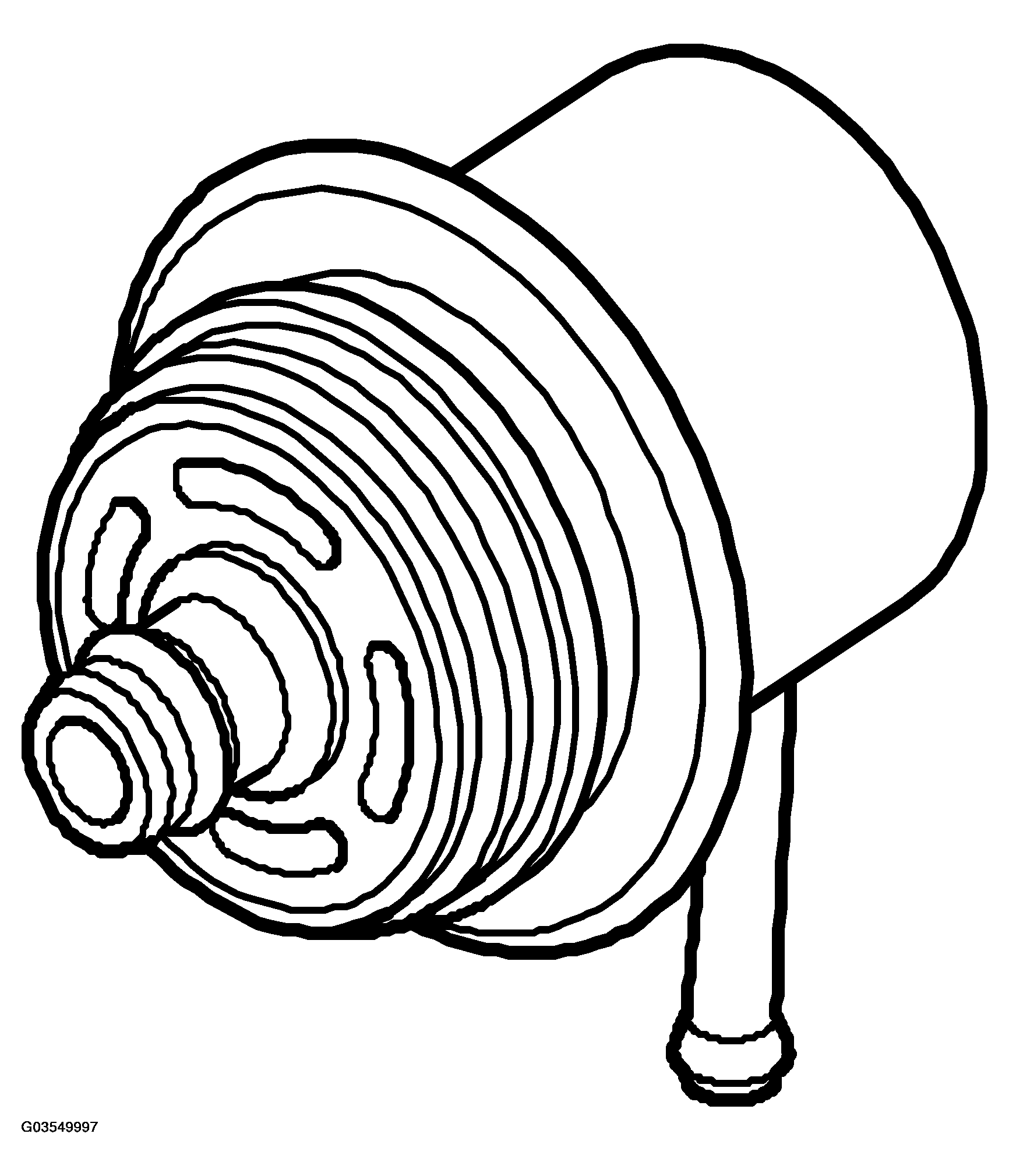

Fig 1: Identifying Fuel Pressure Regulator

G03549997

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TEST READINGS (FUEL PRESSURE REGULATOR)

System pressure

bar (psi)

3,0 (43)
