DTC C1376: Wheel Sensor Front Right. Signal Incorrect: Notes

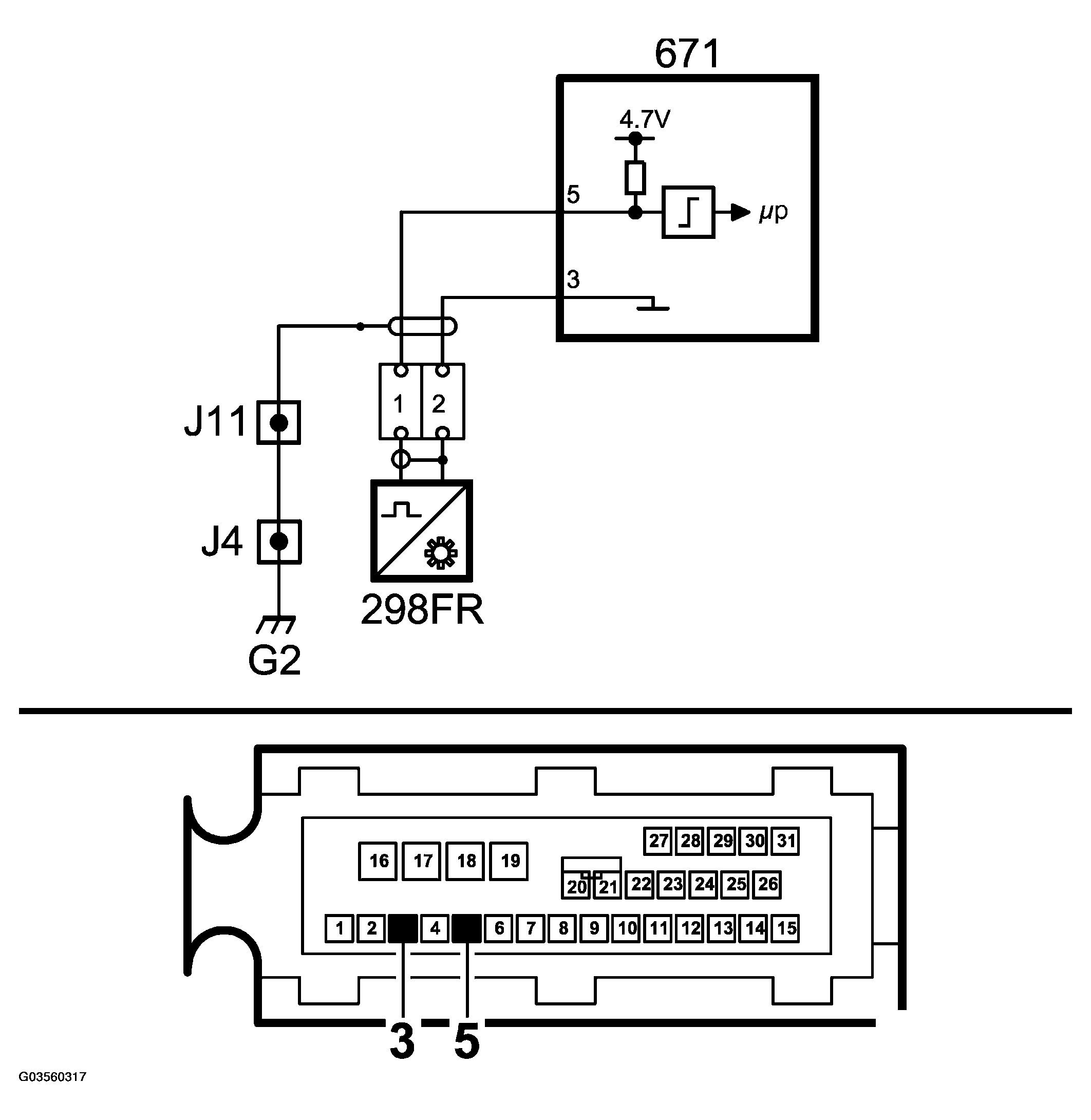

Fig 1: Wheel Sensor Front Right - Circuit Diagram (Signal Incorrect)

G03560317

Courtesy of SAAB-SCANIA OF AMERICA, INC.
