Connecting rods
WARNING: This page is about a different variant/trim than selected.

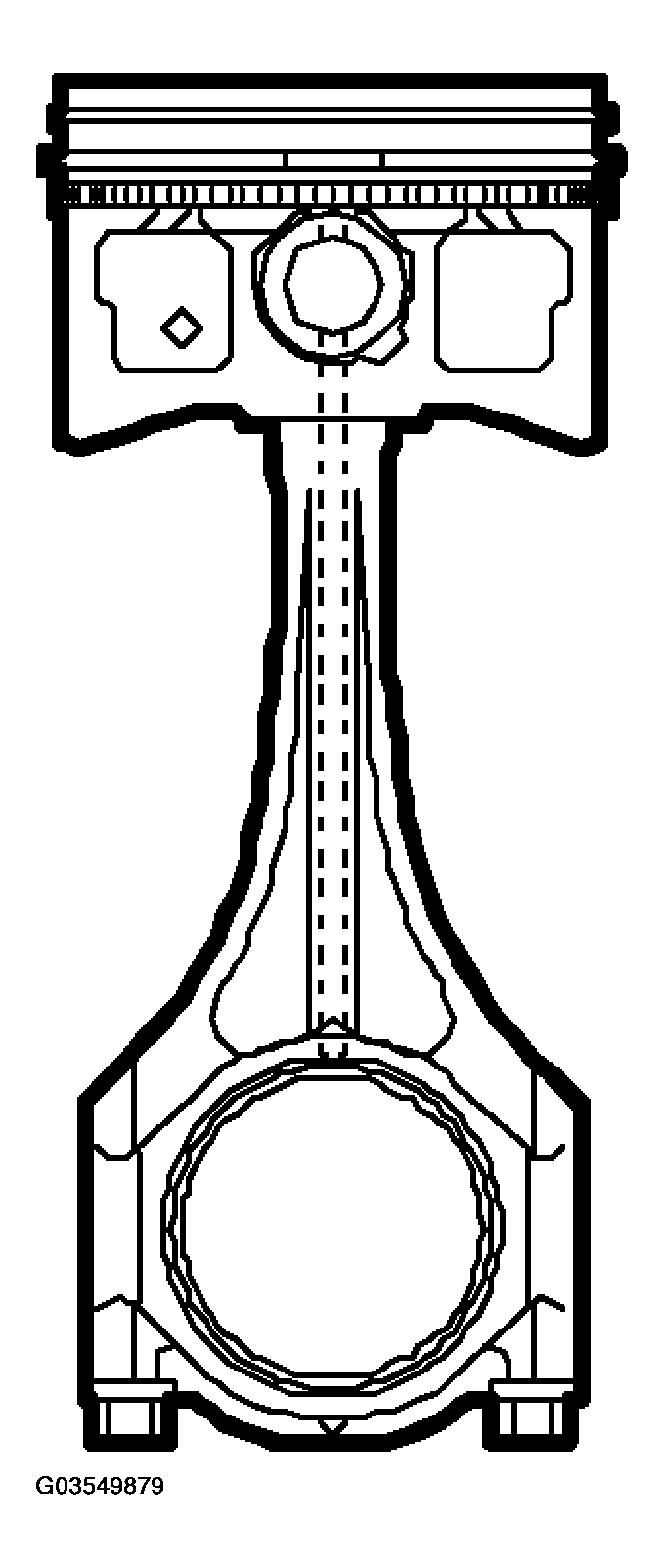

Courtesy of SAAB-SCANIA OF AMERICA, INC. CONNECTING ROD TECHNICAL DATA
| Big-end diameter |
52.000-52.012 mm |
| Length |
148 mm |
| The difference in weight between connecting rods in the same engine must not exceed |
6 g |
| Through oil way in connecting rod |
4 mm |
