Valve guides

WARNING: This page is about a different variant/trim than selected.

The valve guides cannot be changed but must be reamed to oversize and the valve then has to be changed for one of corresponding size.

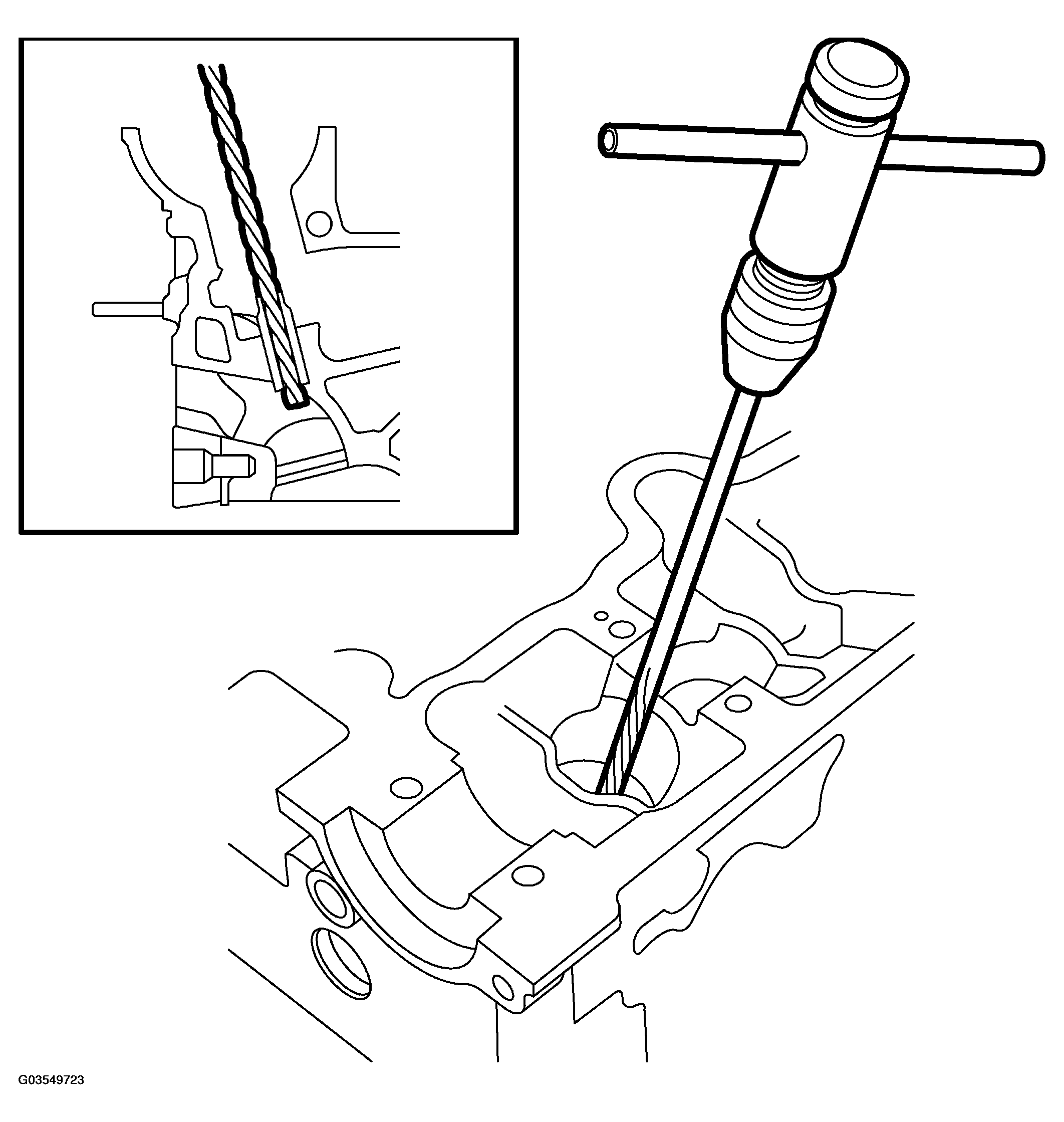

Fig 1: Reaming Valve Guides
G03549723Courtesy of SAAB-SCANIA OF AMERICA, INC.

Use valve guide reamer, part No. 83 95 089.
