End float

WARNING: This page is about a different variant/trim than selected.

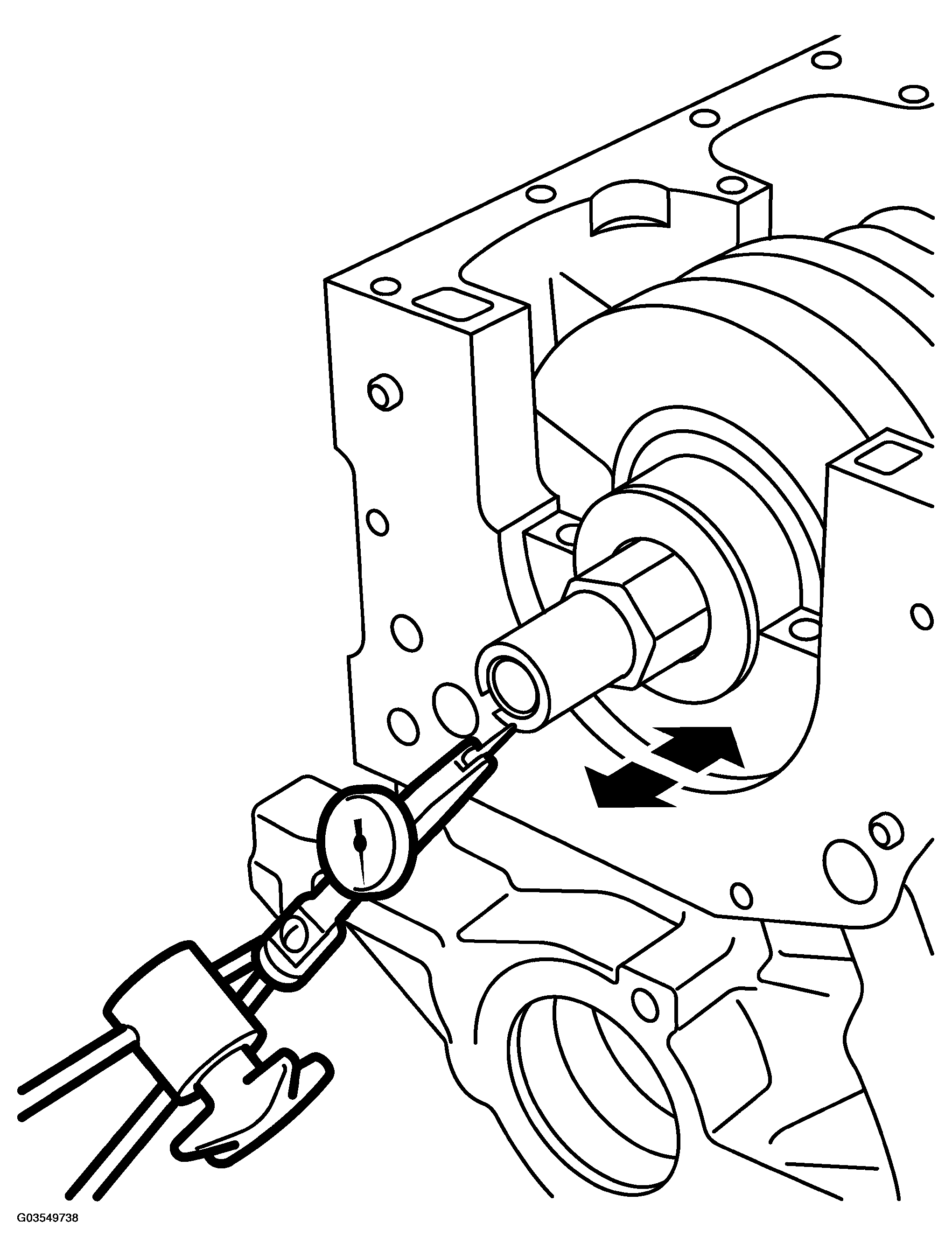

Fig 1: Placing Dial Gauge With Holder On Cylinder Block End With Tip On Crankshaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Place the dial gauge, part No.87 92 194 DIAL GAUGE KIT with holder 87 90 727 BRACKET, DIAL GAUGE on the end of the cylinder block with its tip resting on the crankshaft.

Push the crankshaft lengthwise (axially).

Maximum permissible clearance is 0.1-0.76 mm.

Remove the dial gauge.
