Connecting rods

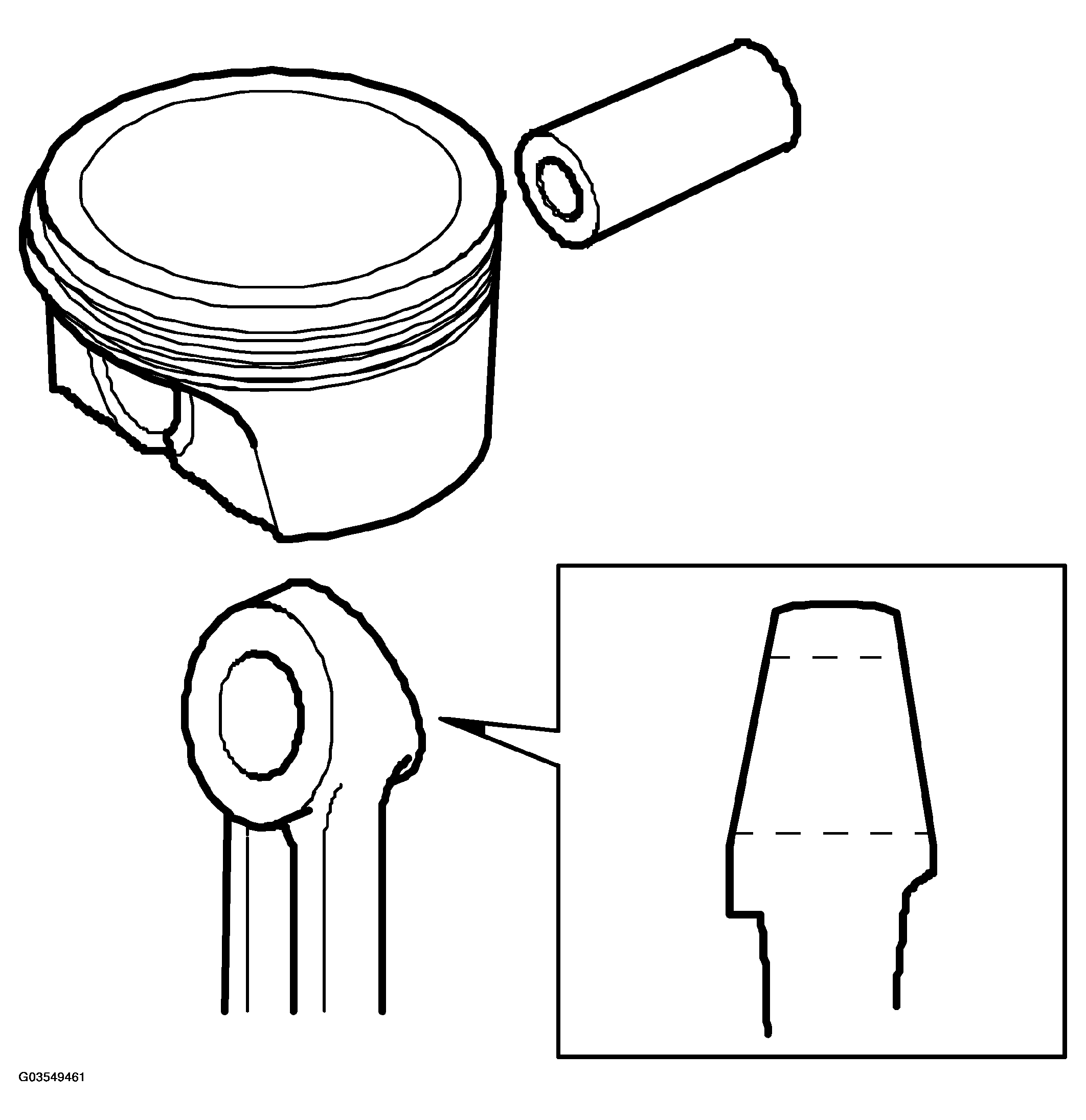

Fig 1: Identifying Connecting Rods Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CONNECTING RODS TECHNICAL SPECIFICATION

Diameter at big-end	mm	56.000 - 56.019
Gudgeon pin bushing, inside diameter (fitted)	mm	24.012 - 24.017
Maximum difference in weight between connecting rod big - ends in the same engine	g (oz.)	6 (0.21)
Length B235 Centre-Centre	mm	153
Length B205 Centre-Centre	mm	159
