To remove

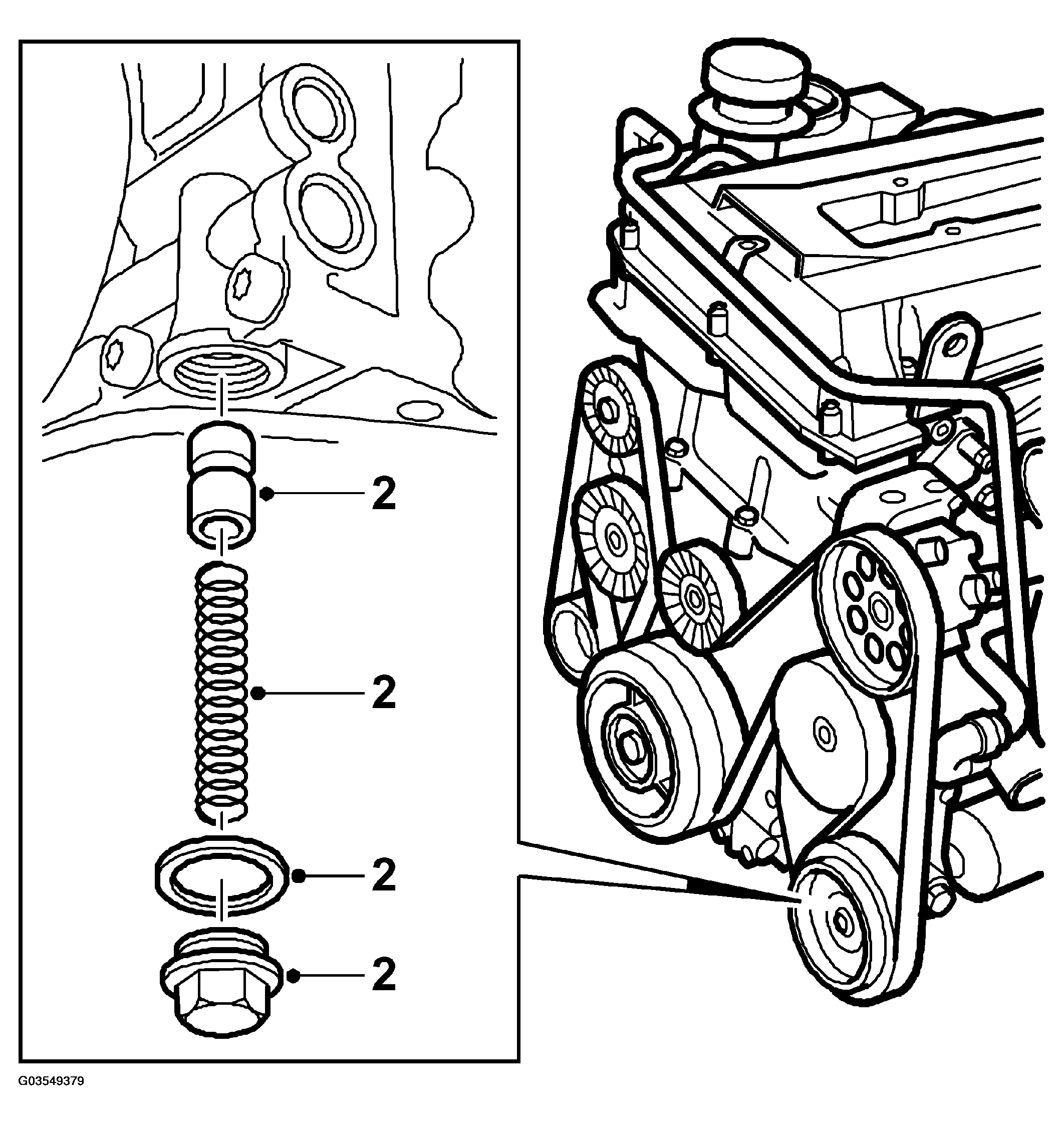

Fig 1: Illustration For Step 2
G03549379Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the cover.
  2. Unscrew the plug and extract the spring and reducing valve.
