To remove

  1. Raise the car.
  2. Remove the screws to the torque arm.

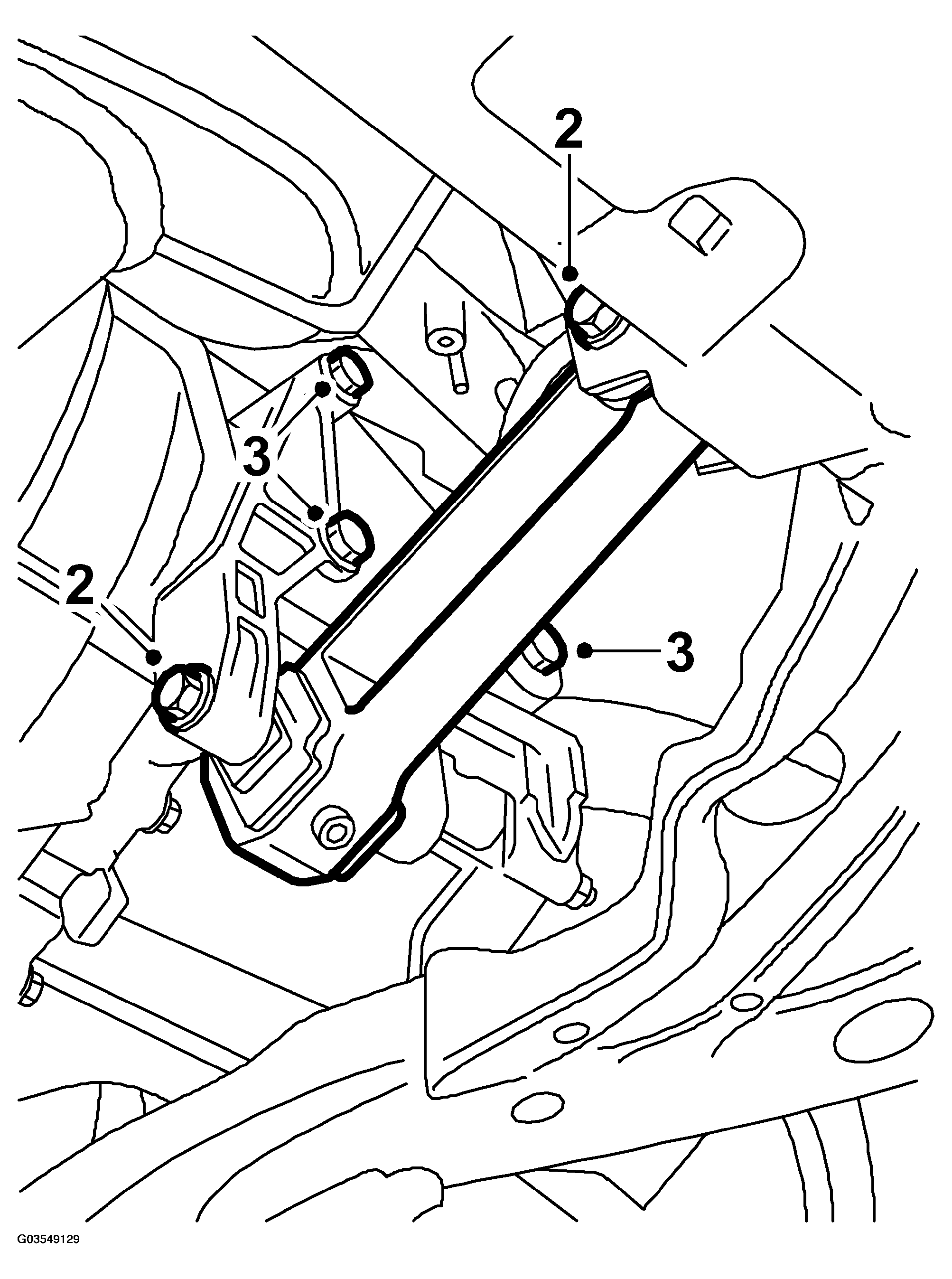

    Fig 1: Illustration For Step 2 & 3
    G03549129Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Loosen the screws on the gearbox bracket so the torque arm's rear screw can be removed.
  4. Remove the torque arm.
