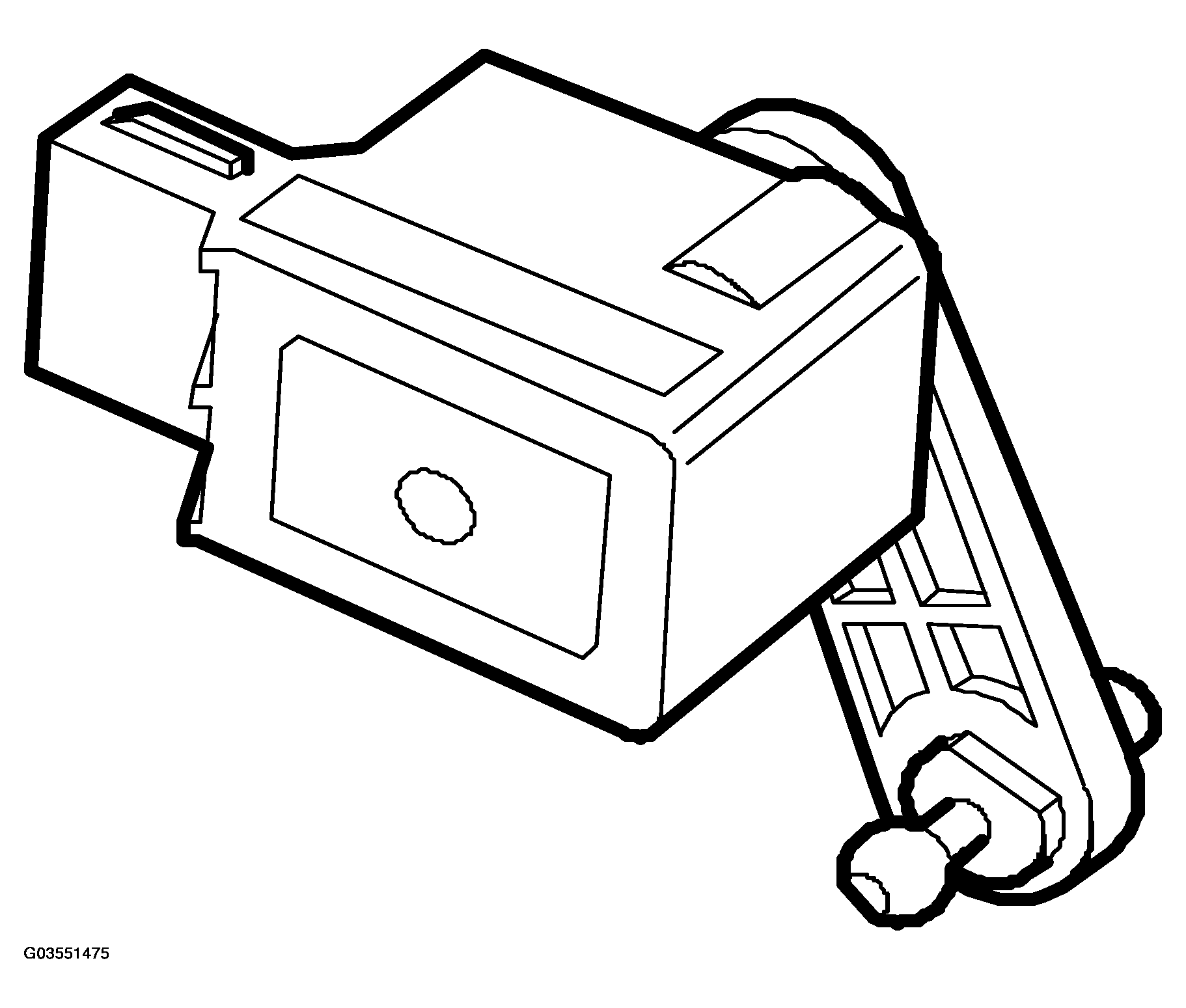

Front load angle sensors
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - FRONT LOAD ANGLE SENSORS
| Location: |
Front right on subframe and suspension arm |
| Number of pins |
4 |
| Power supply +30 |
pin 5 |
| Ground |
pin 1 |
| Coding input (ground) |
pin 2 |
| Serial communication, PWM 200Hz |
pin 4 |
