Grounding point G30: Notes

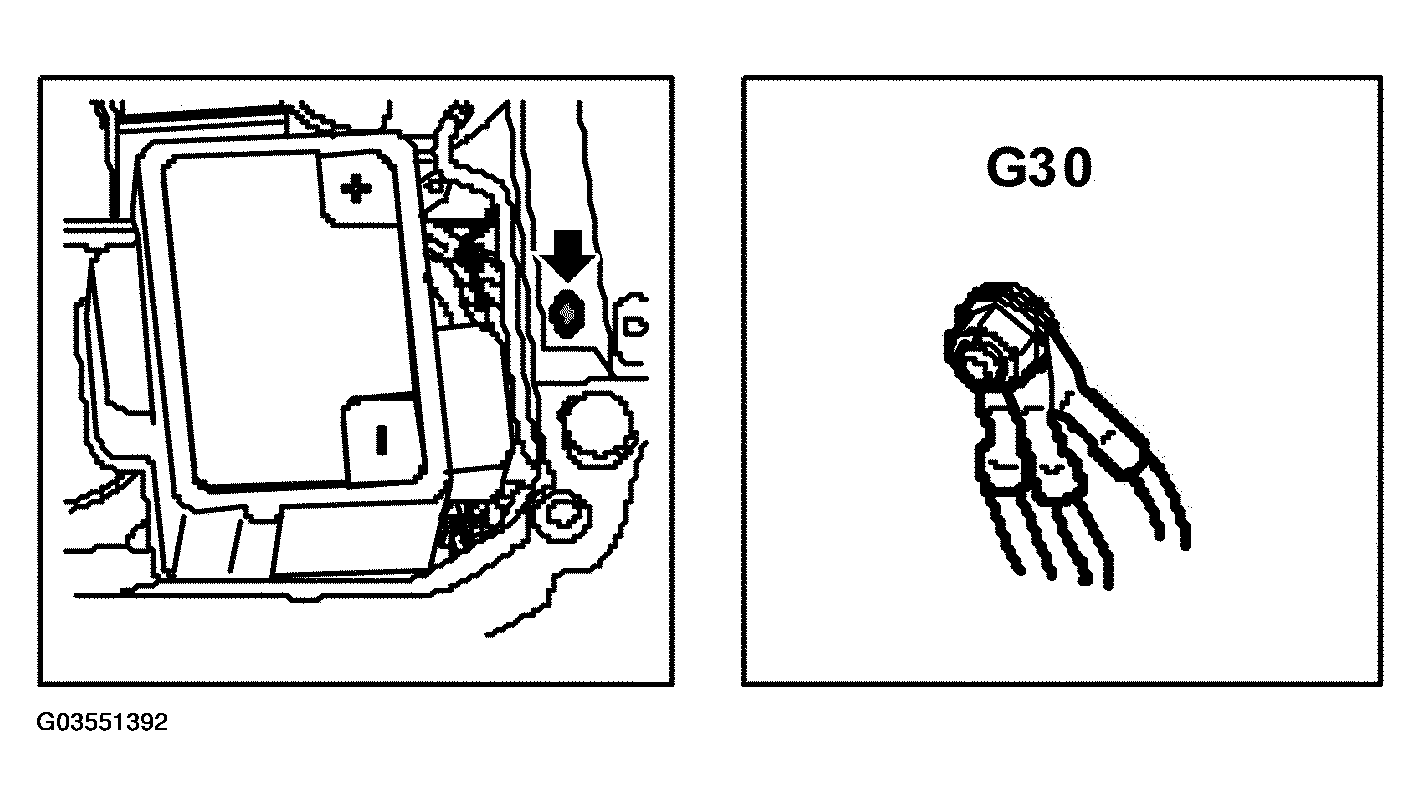

Fig 1: Identifying Grounding Point G30
G03551392Courtesy of SAAB-SCANIA OF AMERICA, INC.

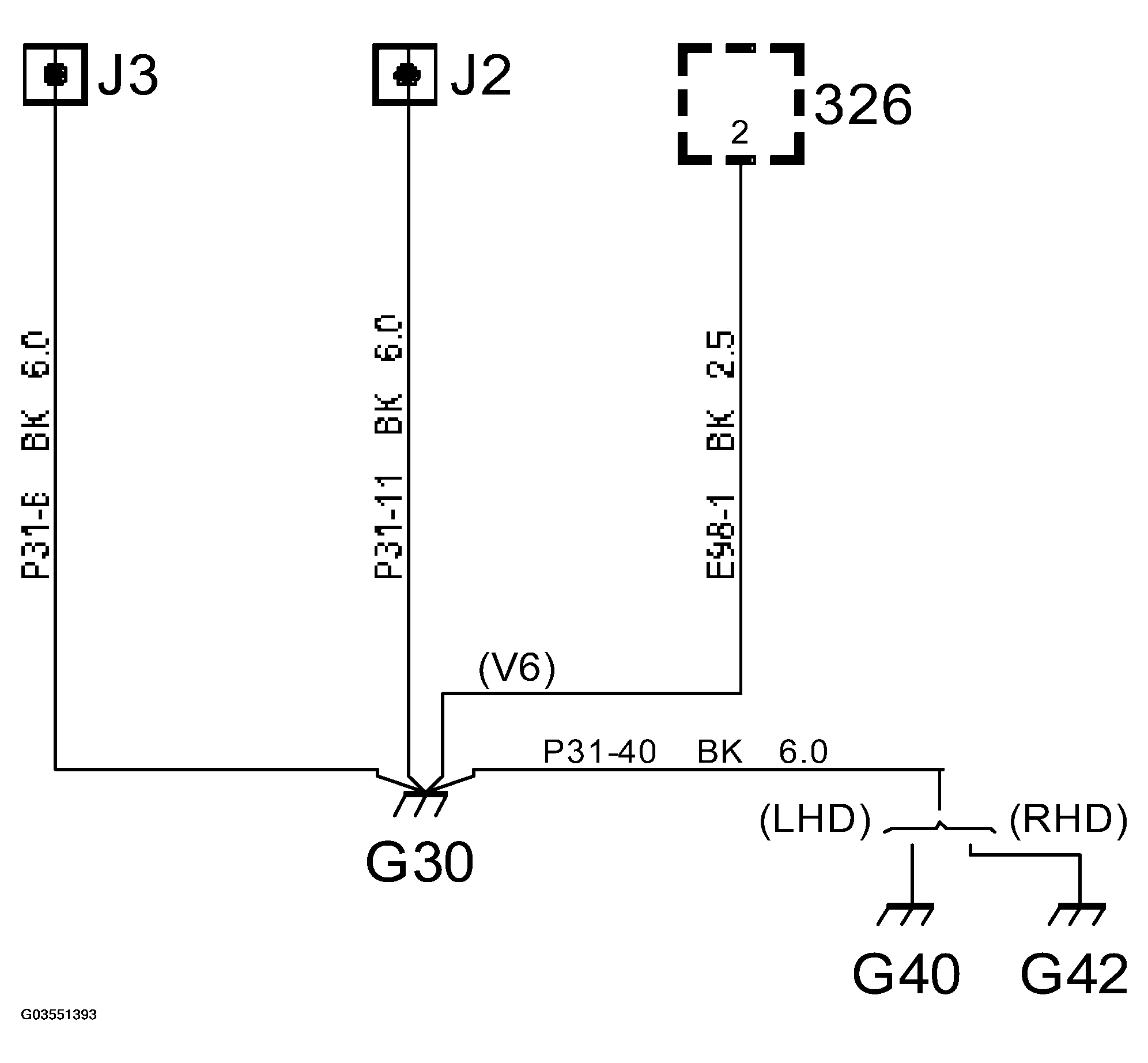

Fig 2: Identifying Grounding Point G30 Connection Diagram
G03551393Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In the engine bay on the side panel in front of the left-hand wheel housing
