To remove

  1. Remove the headlamp, see HEADLAMPS .

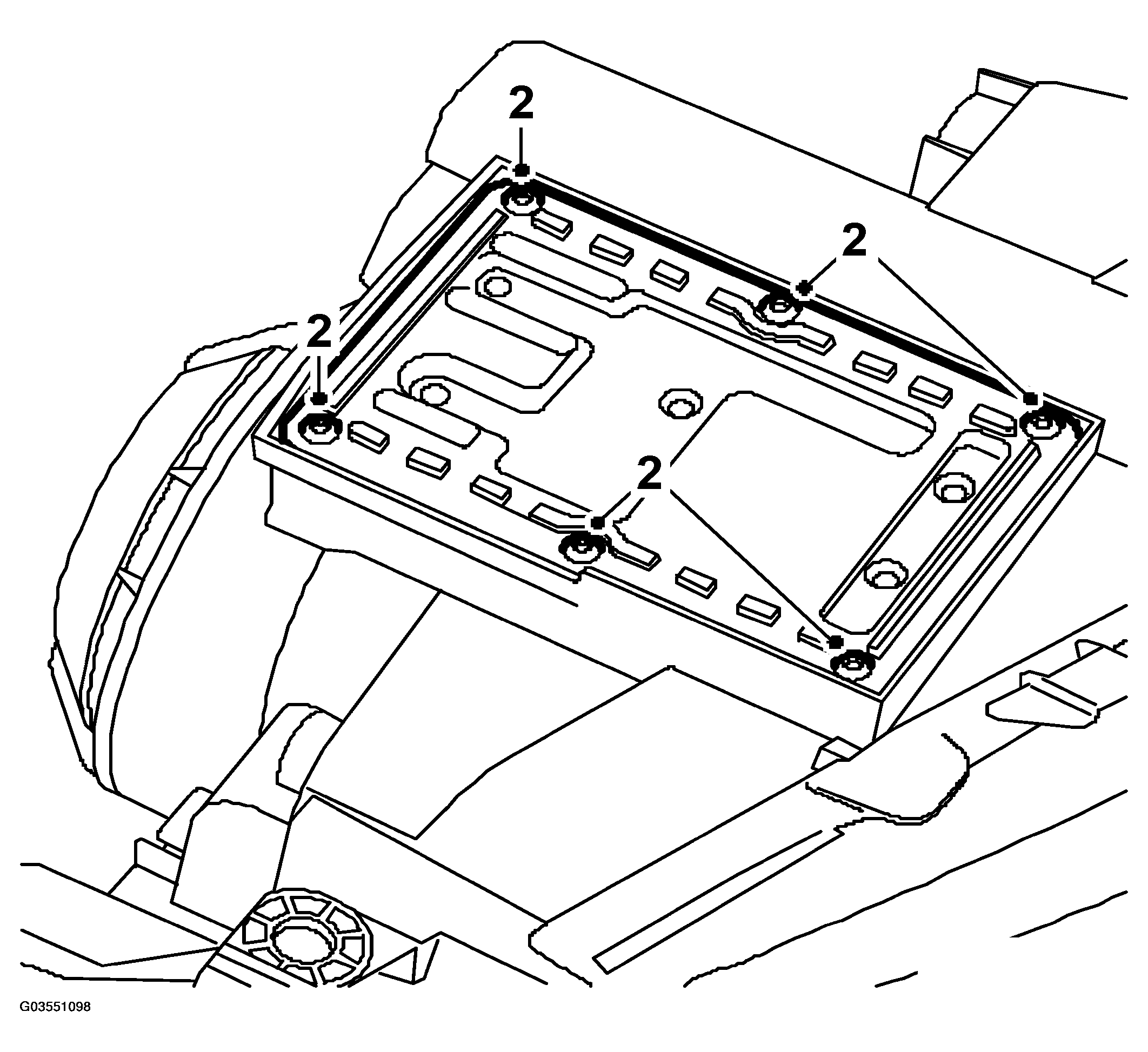

  2. Unscrew the control module.
    Fig 1: Illustration For Step 2
    G03551098Courtesy of SAAB-SCANIA OF AMERICA, INC.

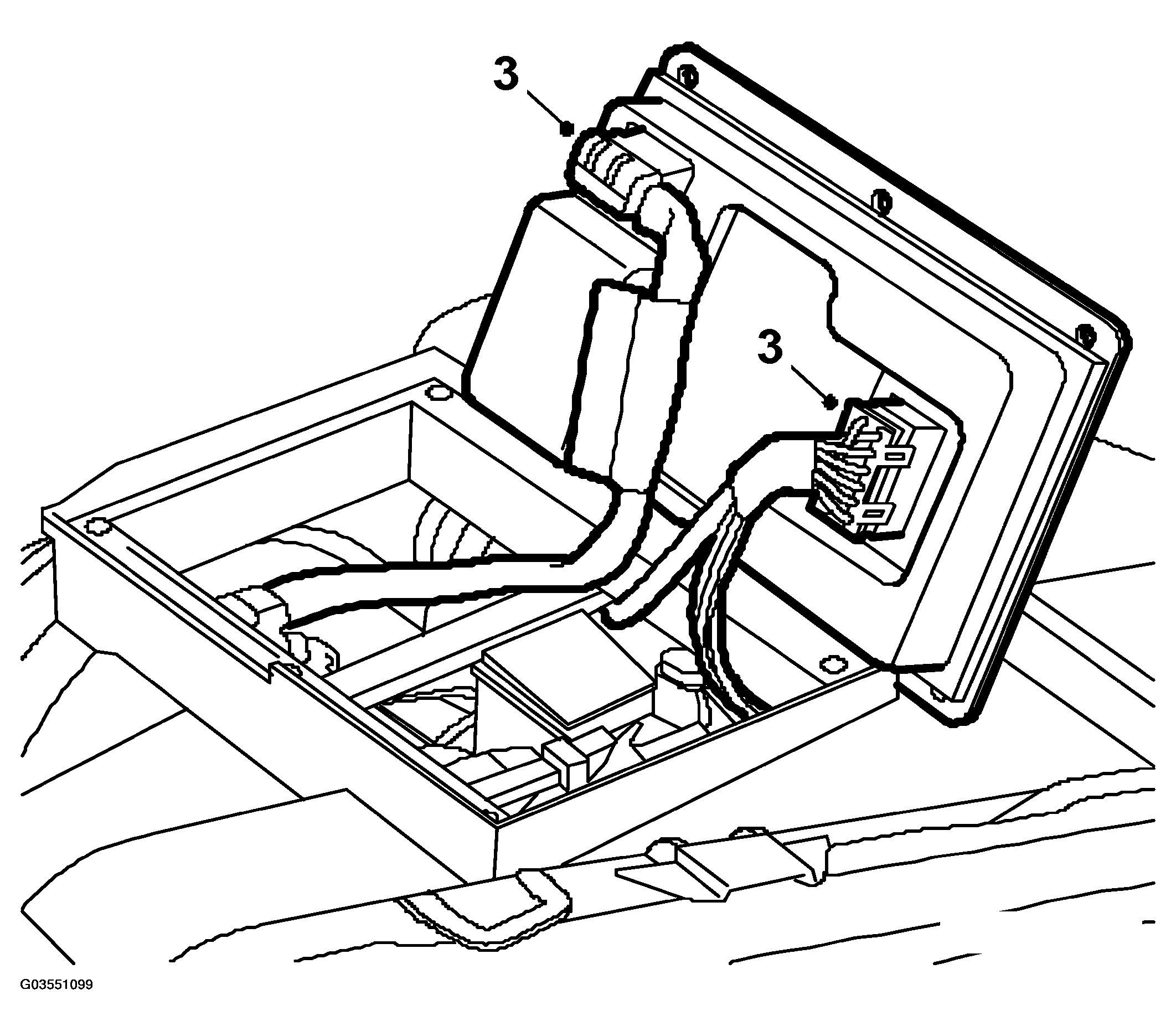

  3. Unplug the connector and lift up the control module.
    Fig 2: Illustration For Step 3
    G03551099Courtesy of SAAB-SCANIA OF AMERICA, INC.
