To remove

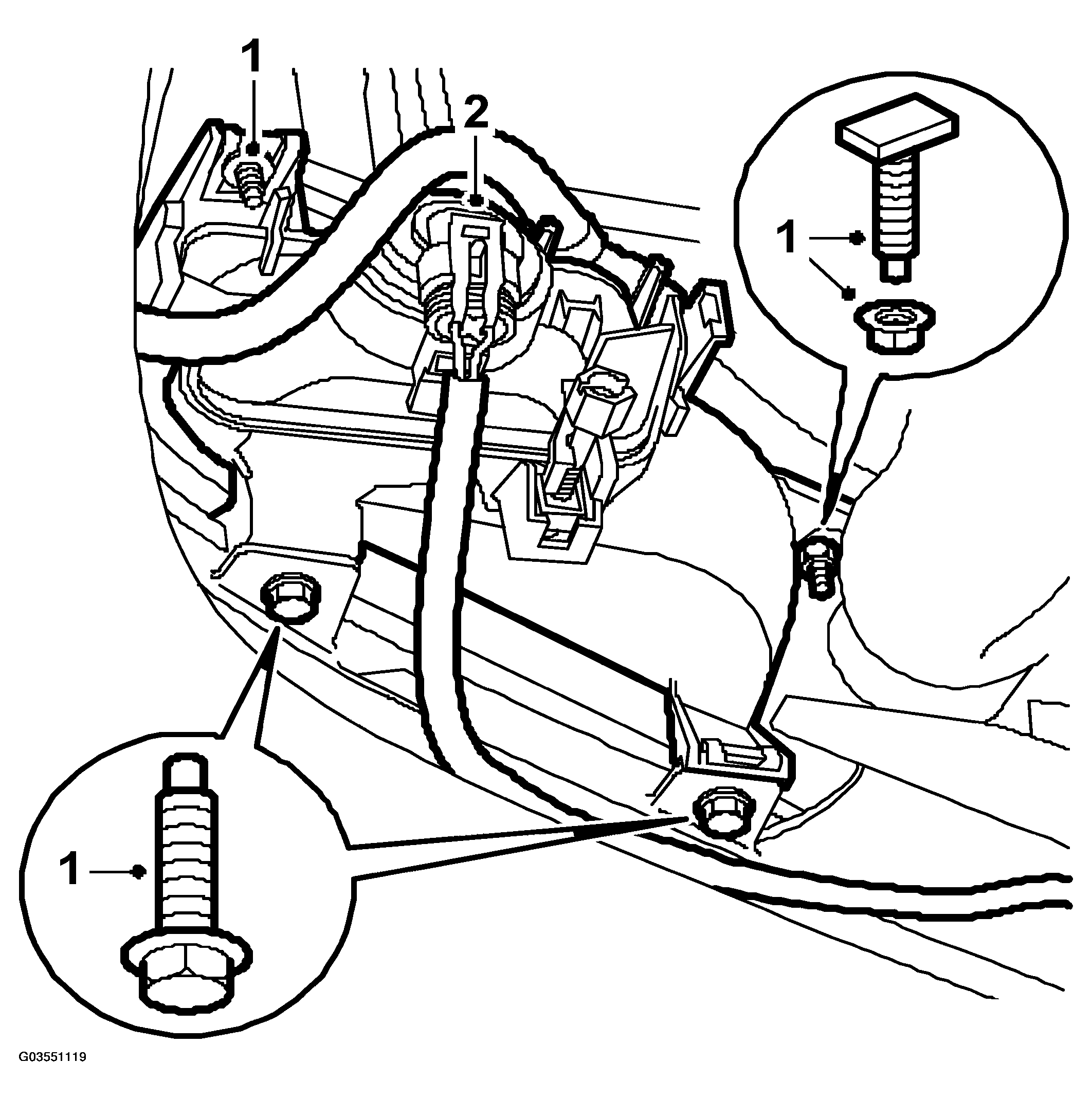

Fig 1: Illustration For Steps 1-2
G03551119Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the fog light by unscrewing the clip mounting on the lower flange and removing the screw and nut at the top.
  2. Lift out the fog light and unplug the connector.
