Generator Not Charging: Check

Make sure that:

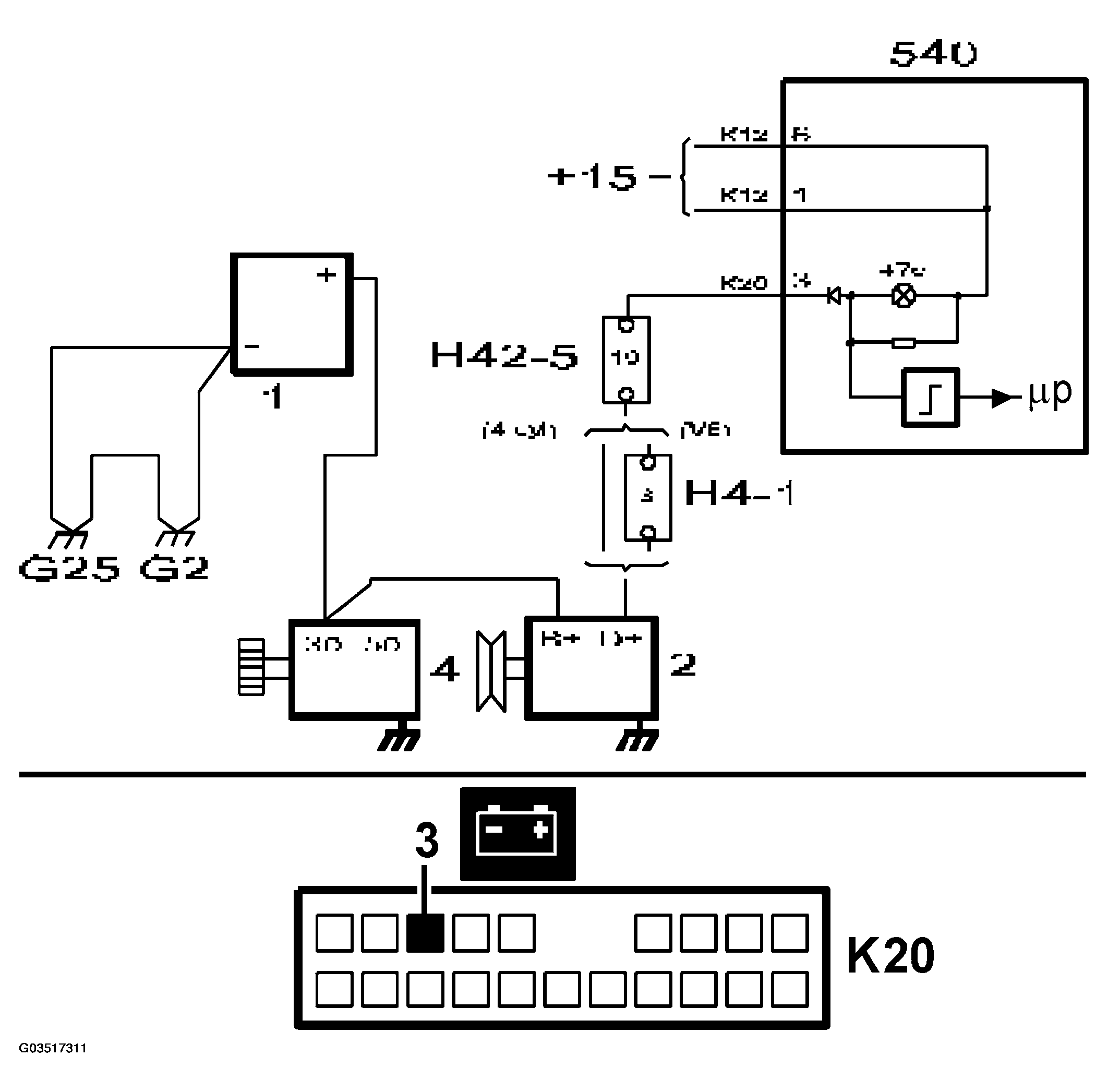

Fig 1: Battery Voltage Measuring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

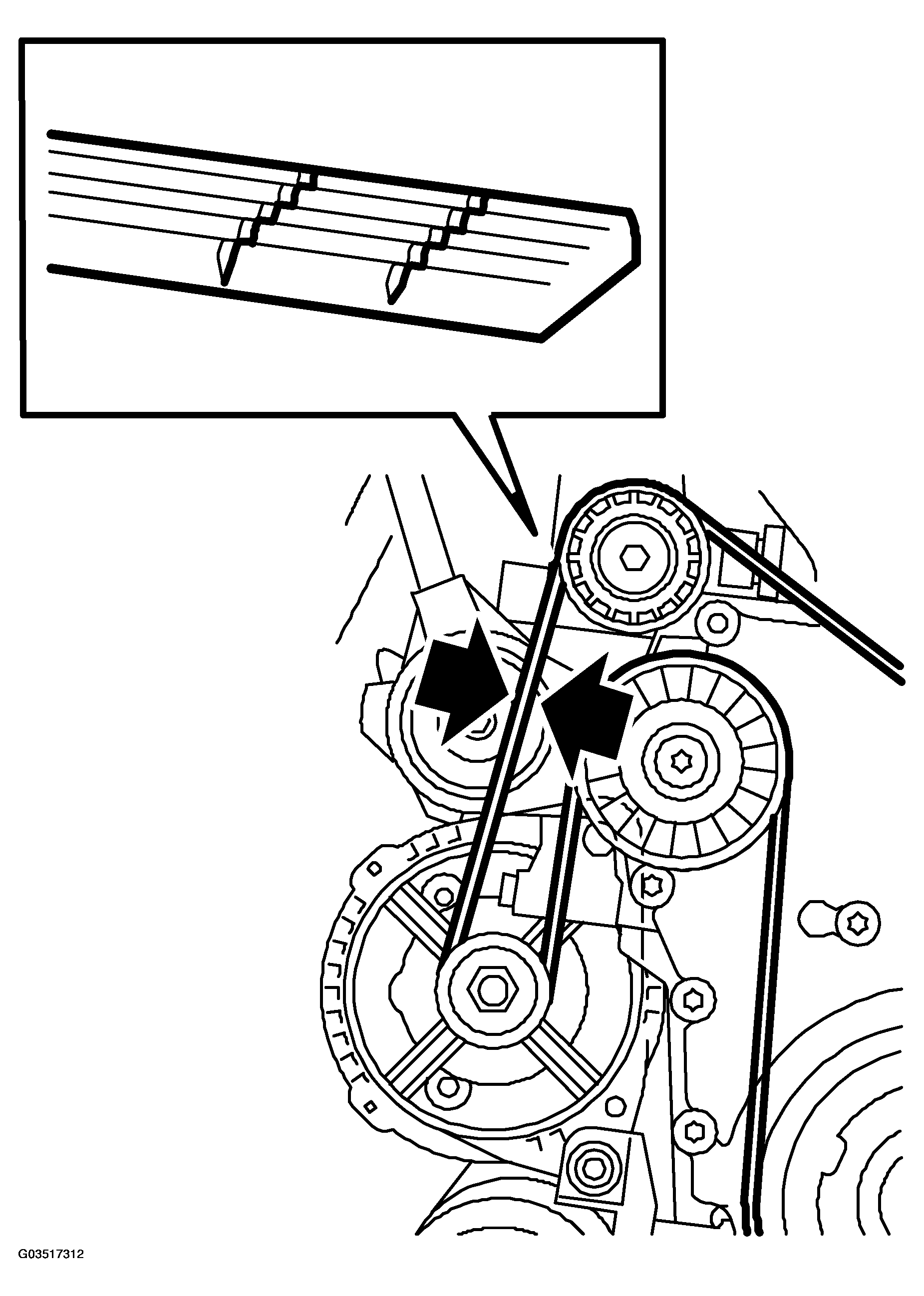

Fig 2: View Of Drive Belt Connection

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• the battery cables are tightened firmly on to the terminals and are not oxidized;
• the battery connections to the car are tight and that there is no oxide or corrosion causing poor contact;
• the generator connections are correctly tightened and that contact has not been affected by oxide or corrosion;
• the generator belt is in good condition and correctly tension.
