Grounding point G42: Notes

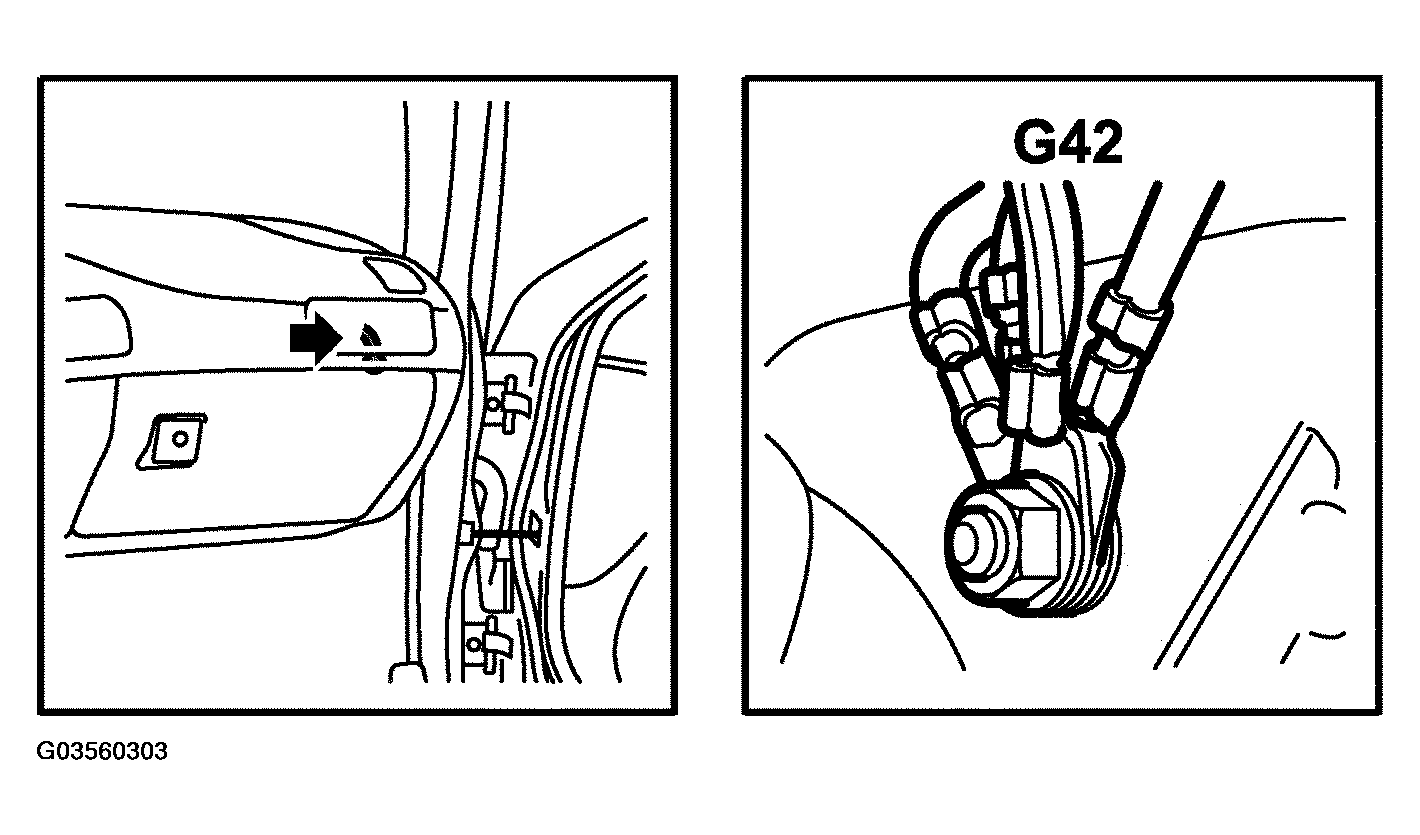

Fig 1: Identifying Grounding Point G42

Courtesy of SAAB-SCANIA OF AMERICA, INC.

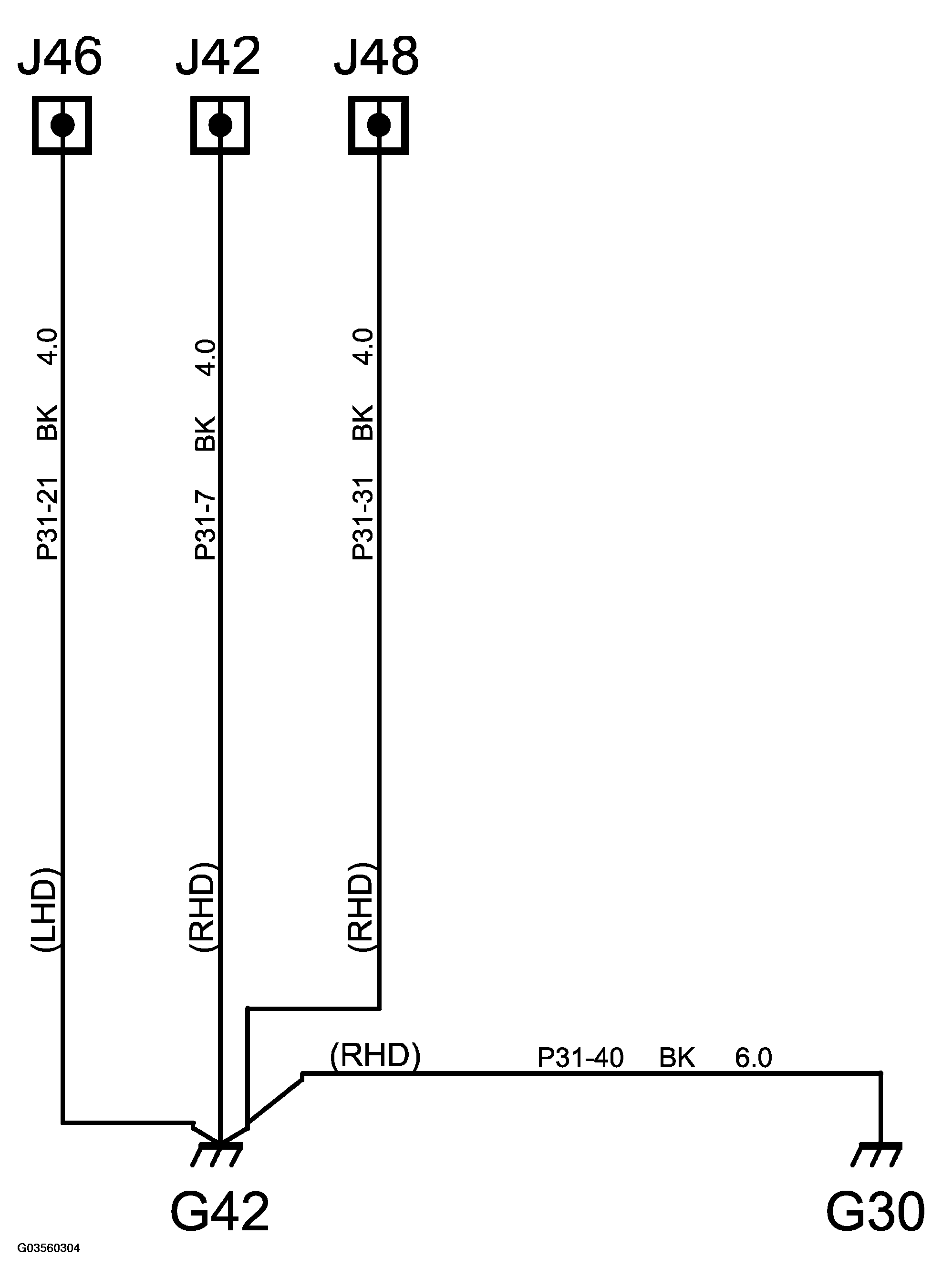

Fig 2: Grounding Point G42 Component Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On right-hand side of knee protection bar.
