Grounding point G40: Notes

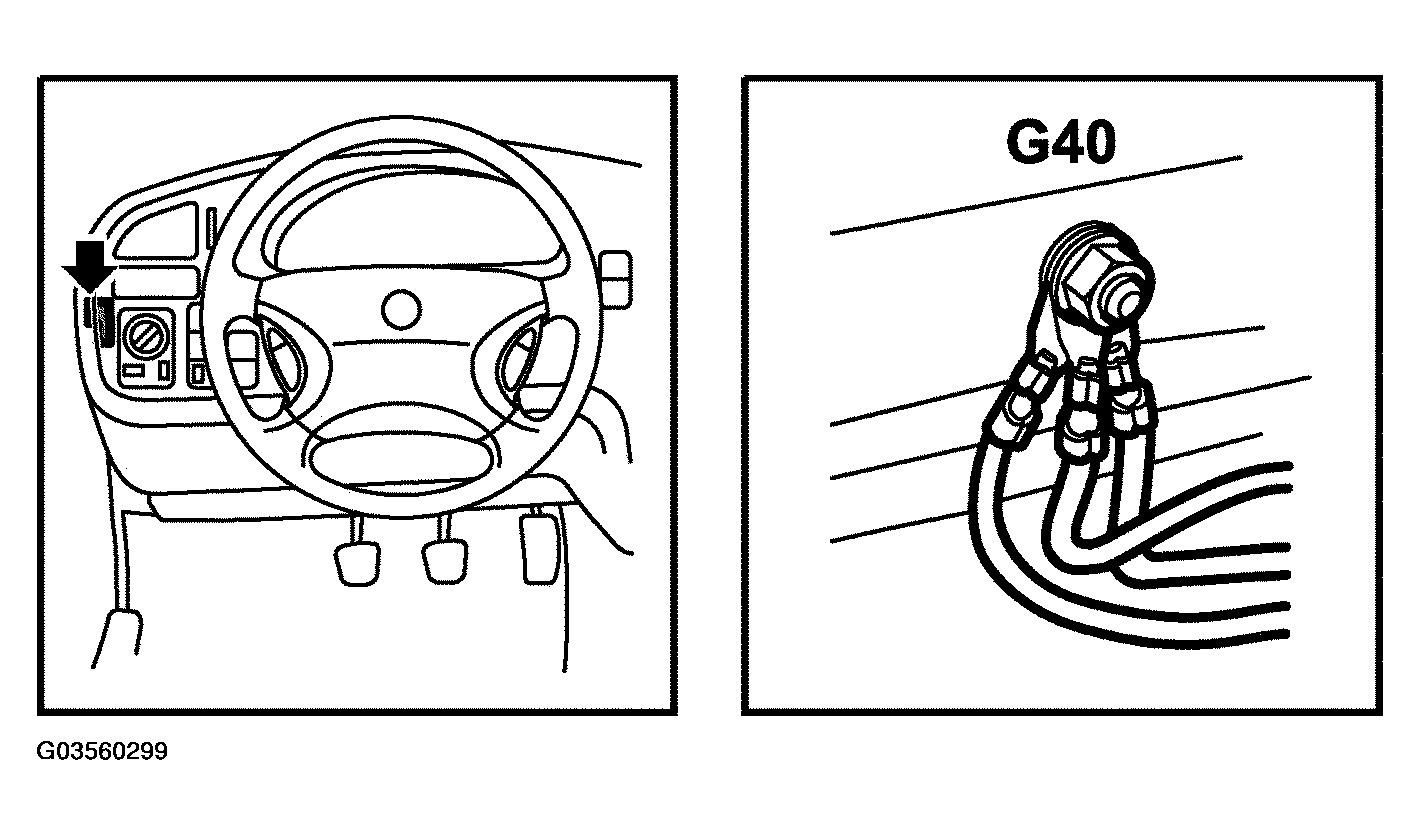

Fig 1: Identifying Grounding Point G40

Courtesy of SAAB-SCANIA OF AMERICA, INC.

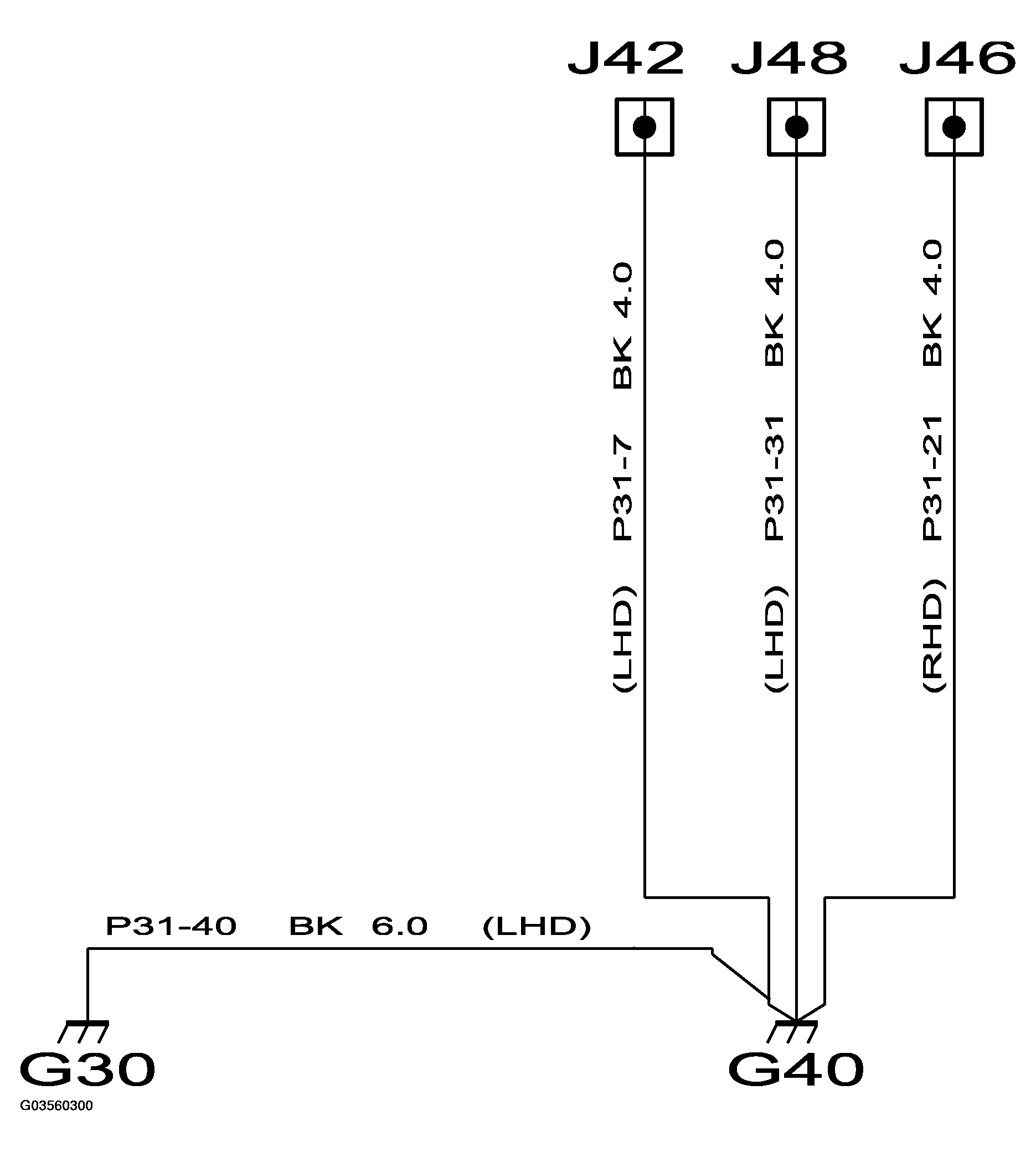

Fig 2: Grounding Point G40 Component Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In cabin on left-hand side of knee protection bar.
