PSM control module (357Dk)

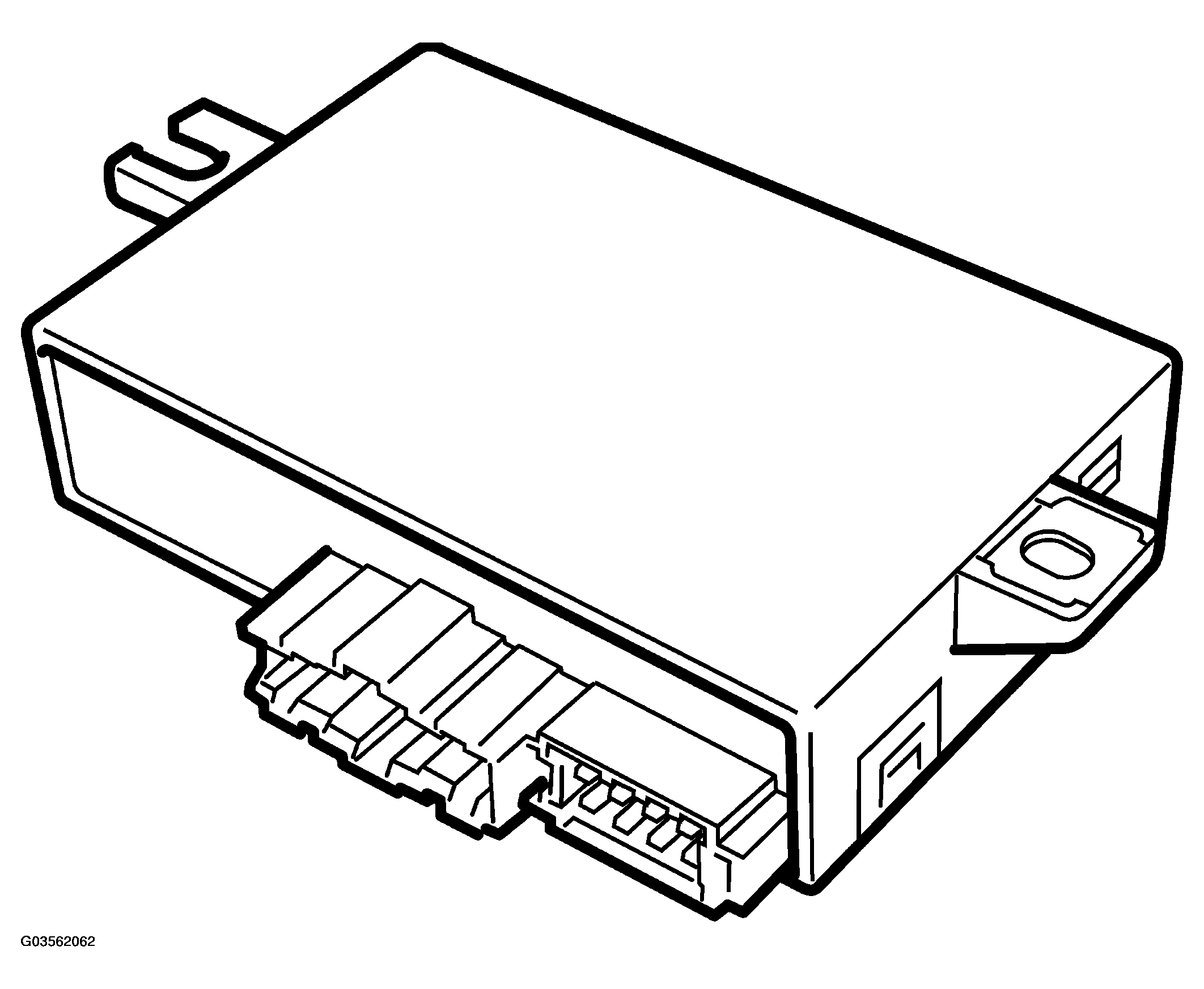

Fig 1: Identifying PSM Control Module (357Dk)
G03562062Courtesy of SAAB-SCANIA OF AMERICA, INC.
TOOL COMPATIBILITY - PSM CONTROL MODULE

Number of contacts qty 3
Power supply +30 pin 6 (connector 1)
Power supply +15 pin 1 (connector 1)
Ground pin 7 (connector 1)

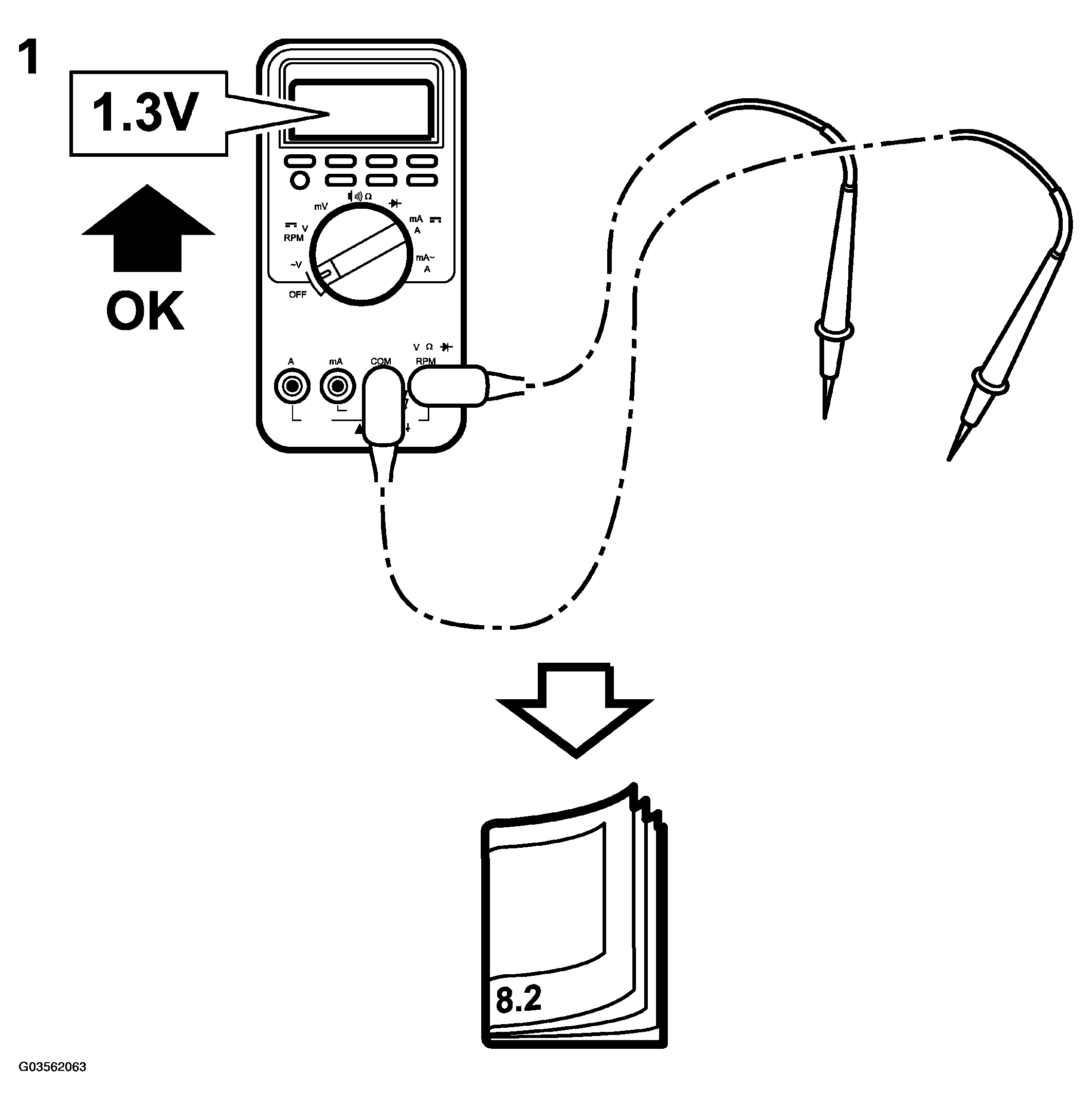

Fig 2: Identifying Test Readings, Control Module Connections (1 Of 2)
G03562063Courtesy of SAAB-SCANIA OF AMERICA, INC.
