Electrically adjustable passenger seat: Notes

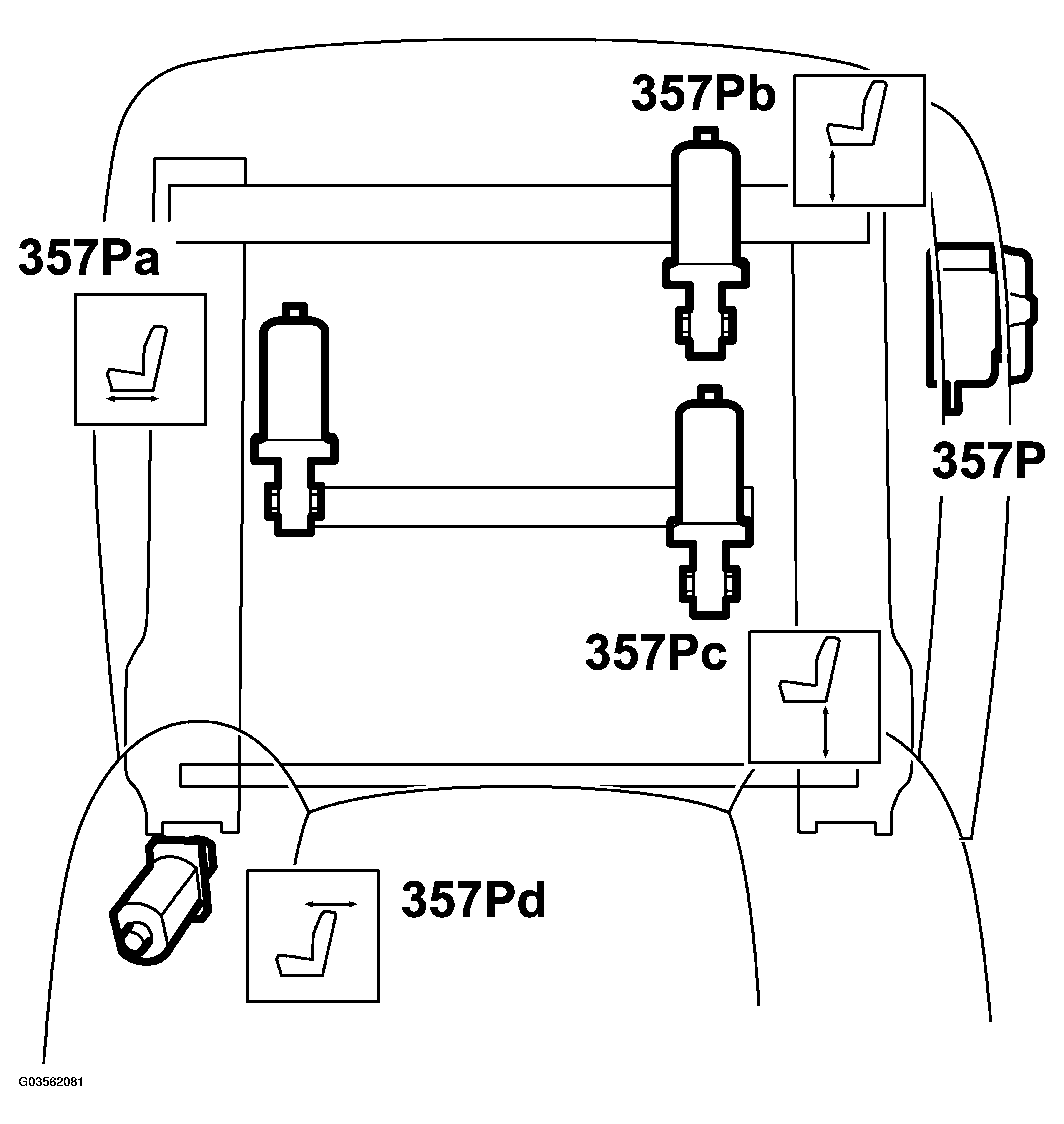

Fig 1: Identifying Electrically Adjustable Passenger Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

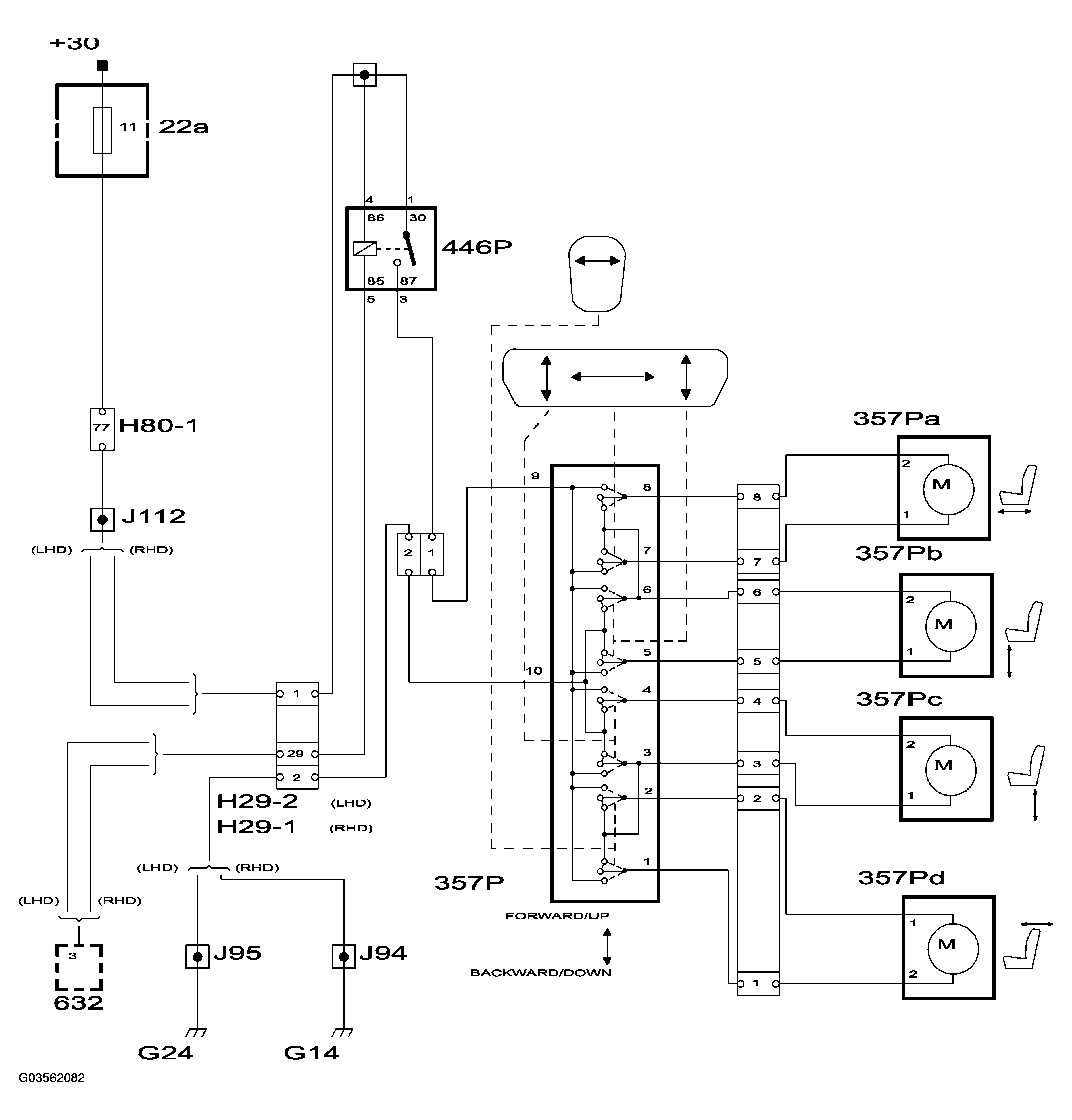

Fig 2: Bus Communication Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The passenger seat is adjusted with a switch located on the upper seat side panel on the outside of the seat. Electric motors move the seat laterally, change the height front and back and change the inclination of the backrest.
