Cars with a petrol engine

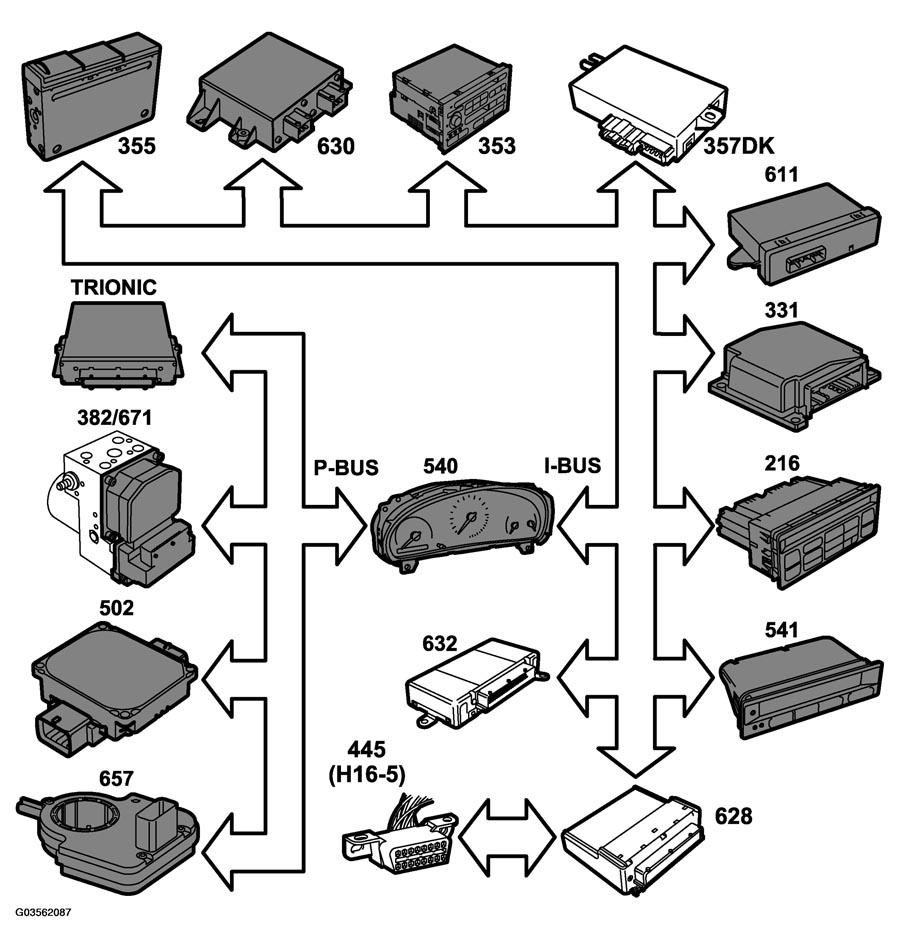

Fig 1: Identifying Control Module Bus Inputs (Cars With Petrol Engine)

G03562087

Courtesy of SAAB-SCANIA OF AMERICA, INC.
