Grounding point G5: Notes

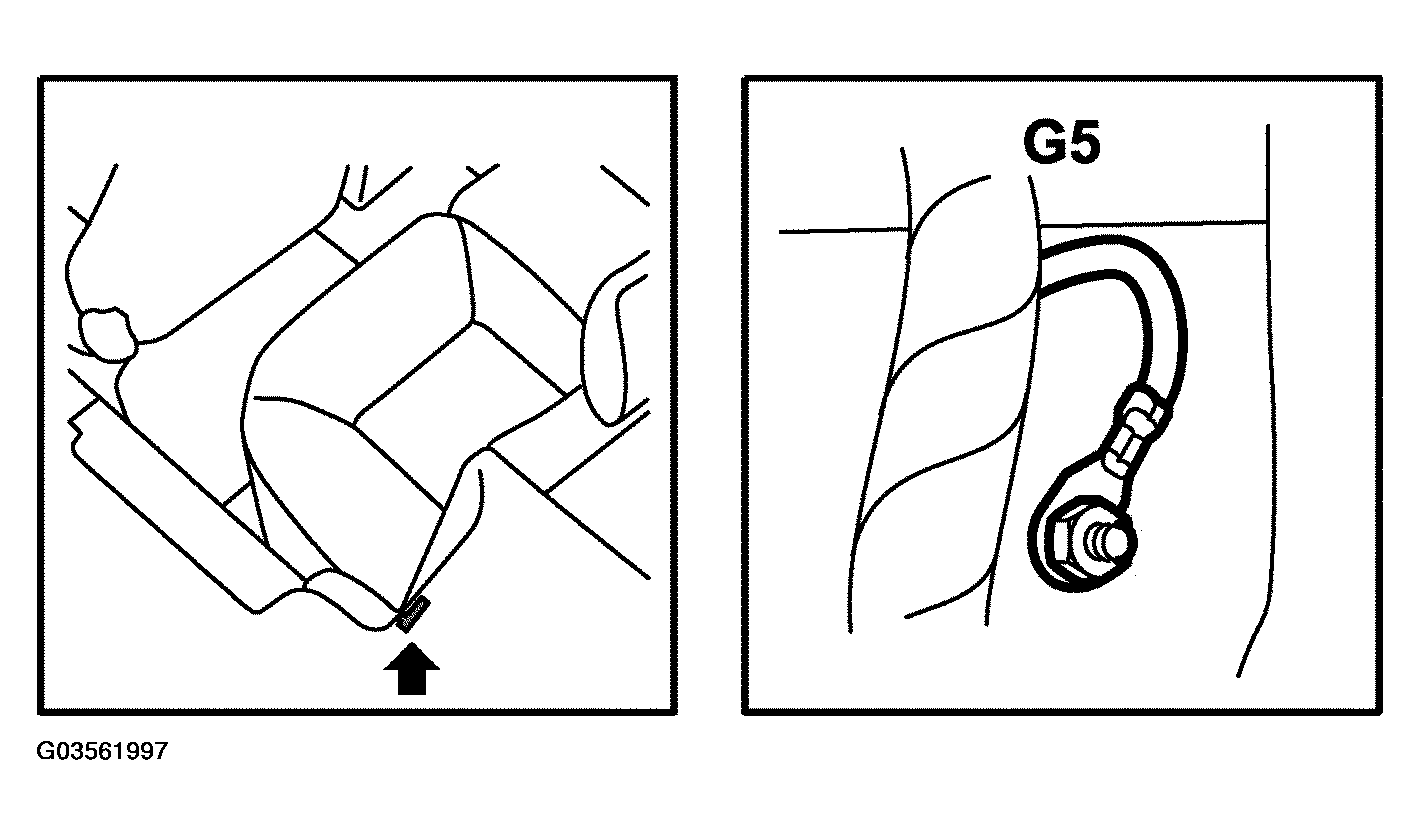

Fig 1: Identifying Grounding Point G5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

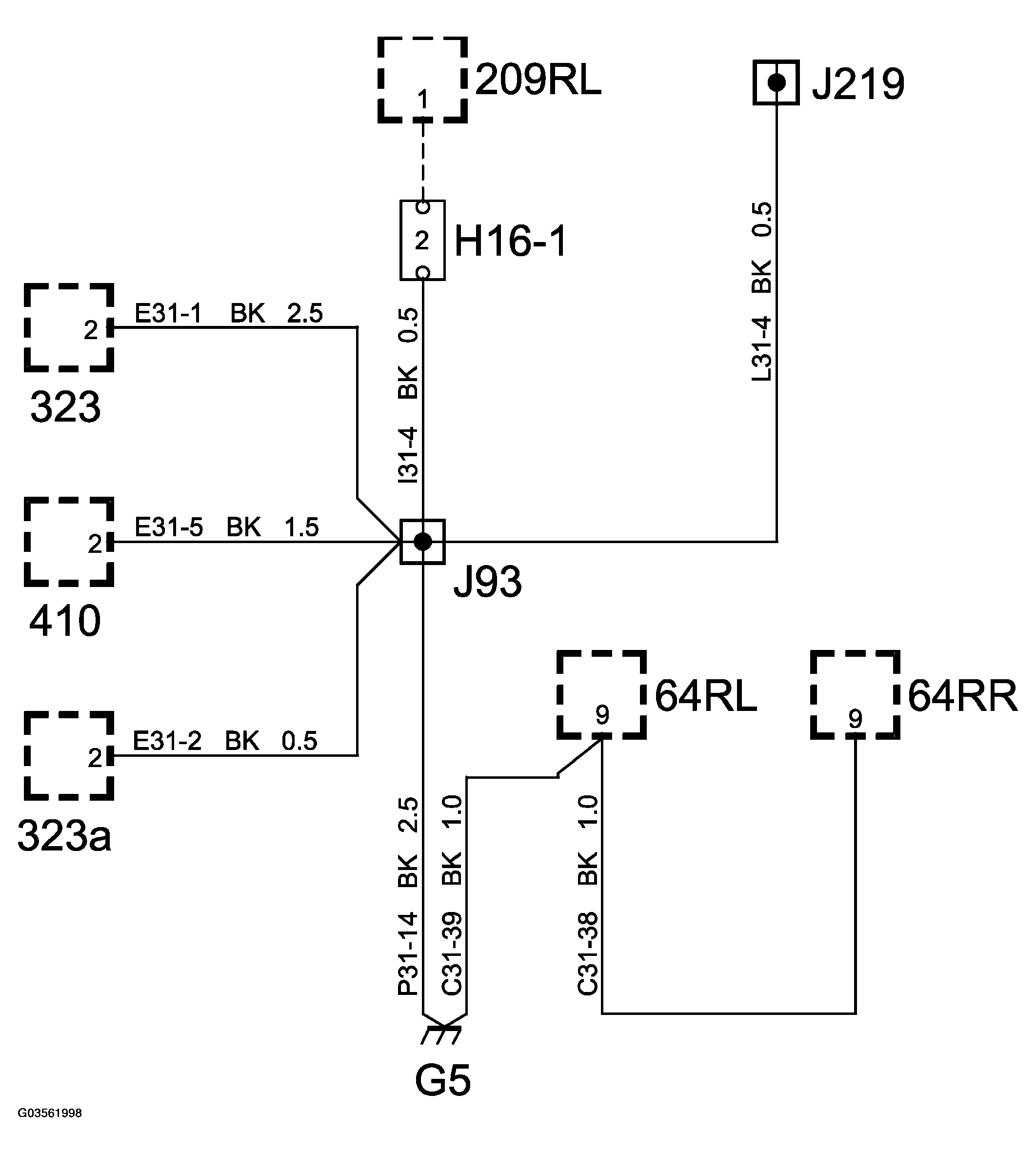

Fig 2: Grounding Point G5 Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Under the rear seat in the left-hand corner.
