Home >> Saab >> 2002 >> 9-5 Linear, 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Technical data >> Injectors, flow capacity >> V6

Injectors, flow capacity: V6

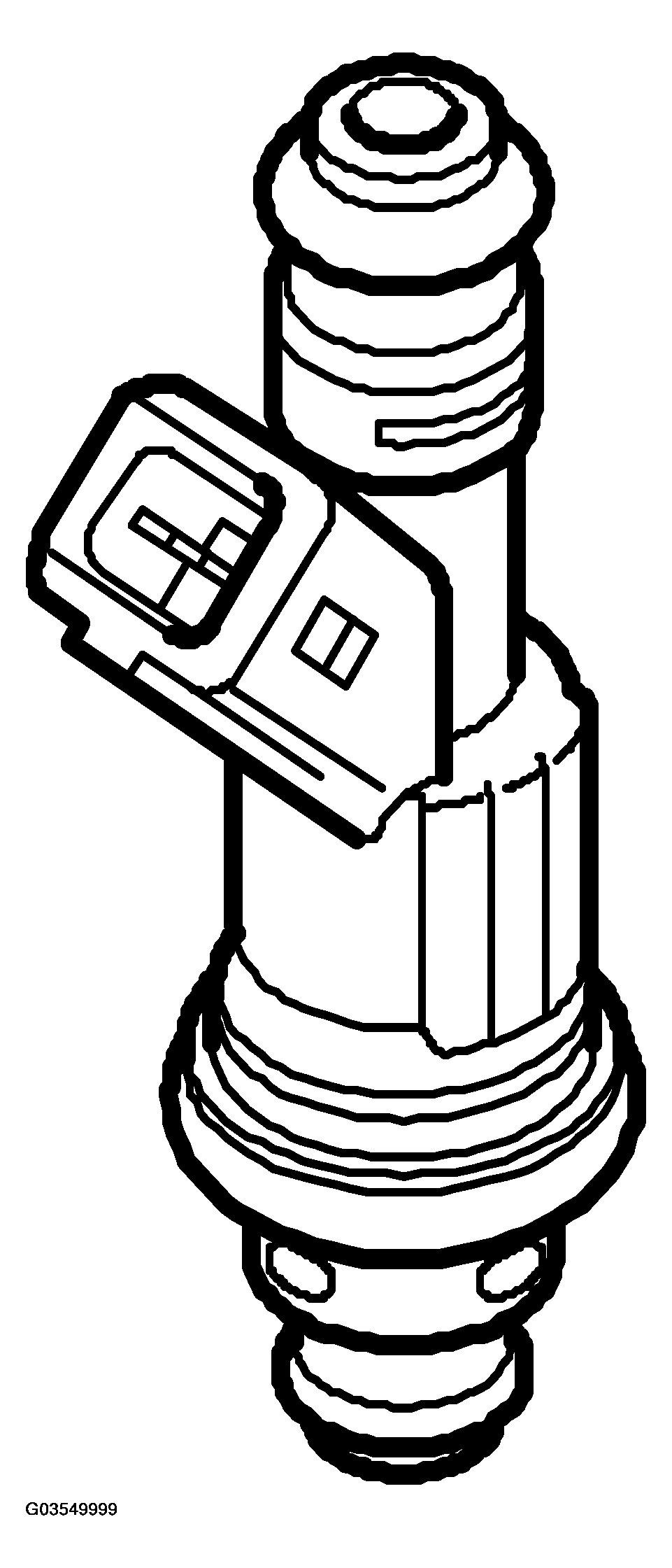

Fig 1: Identifying Injectors (V6)
G03549999Courtesy of SAAB-SCANIA OF AMERICA, INC.
FLOW CAPACITY (INJECTORS (V6))

B308E
Flow capacity ml/30s 109 +/- 4
Maximum permissible difference between injectors. ml 8
